CONTROL 24CT

Name: CONTROL 24CT
Brand: JBL
SKU: CONTROL 24CT
Price: 362650 NGN
Availability: OutOfStock

JBL

JBL Background/ Foreground Ceiling Loudspeakers 30W

go to the technical sheet

₦ 362,650.00

₦ 337,349.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

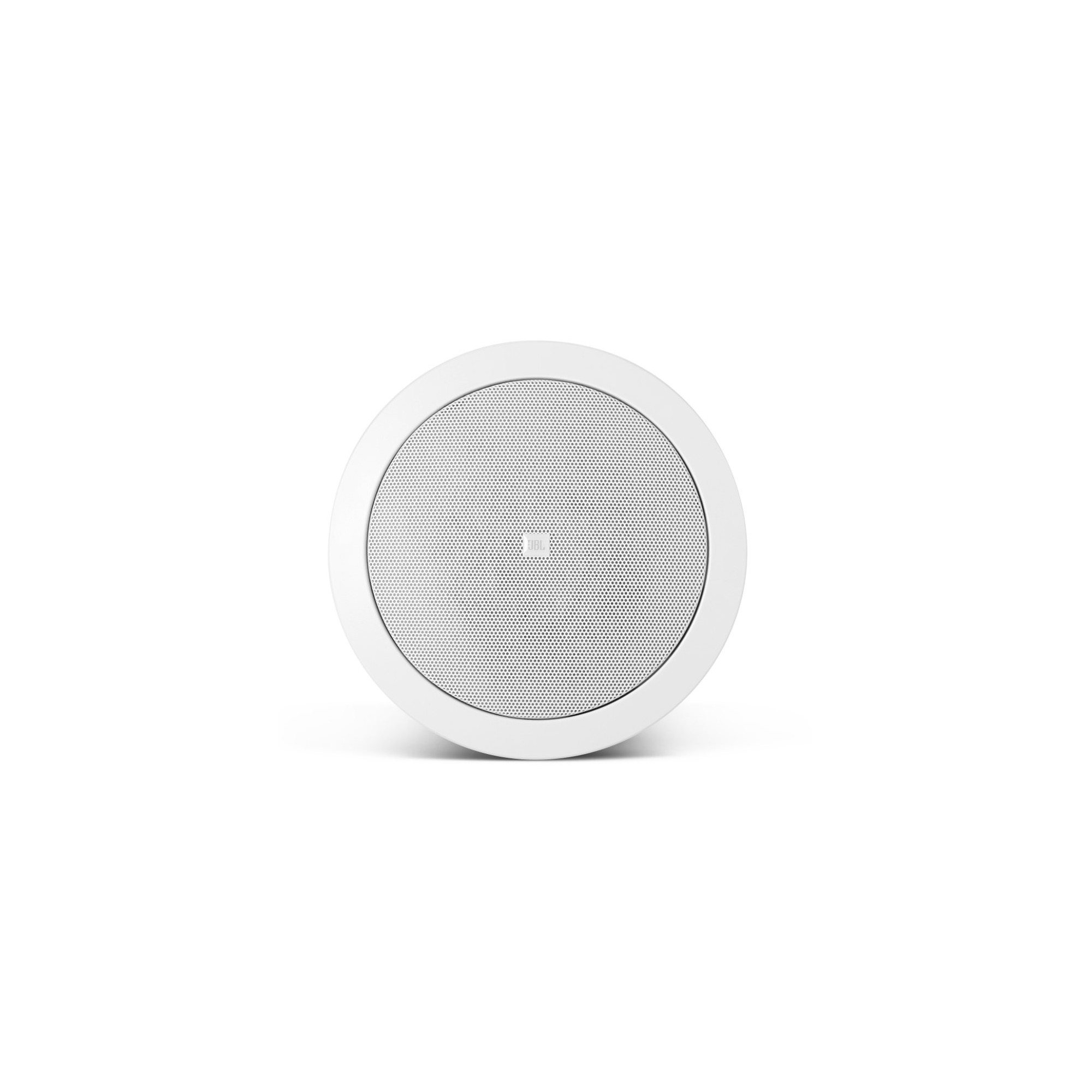

Control 24CT Background/ Foreground Ceiling Loudspeakers.

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Frequency Range: 80 Hz - 20 kHz
Power Rating: See transformer taps
Transformer Taps: 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
Coverage Angle: 130° conical
Directivity Factor (Q): 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI): 3.8 dB averaged 500 Hz to 4 kHz
Maximum SPL (1m): 102 dB (top 70V/100V tap)
Nominal Impedance: 16 ohms (Min Z 16.1 ohms @ 320 Hz)
Sensitivity: 86 dB (100 Hz - 10 kHz)
Input Connectors: Removable 4-pin locking connector with screw-down terminals.
