JBL

Two-way diffuser 3''/0.5'',50 W/8 Ohm, transformer 70/100V 15/7.5/1.8 W, Pair
go to the technical sheet
₦ 754,214.00

₦ 701,594.30 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

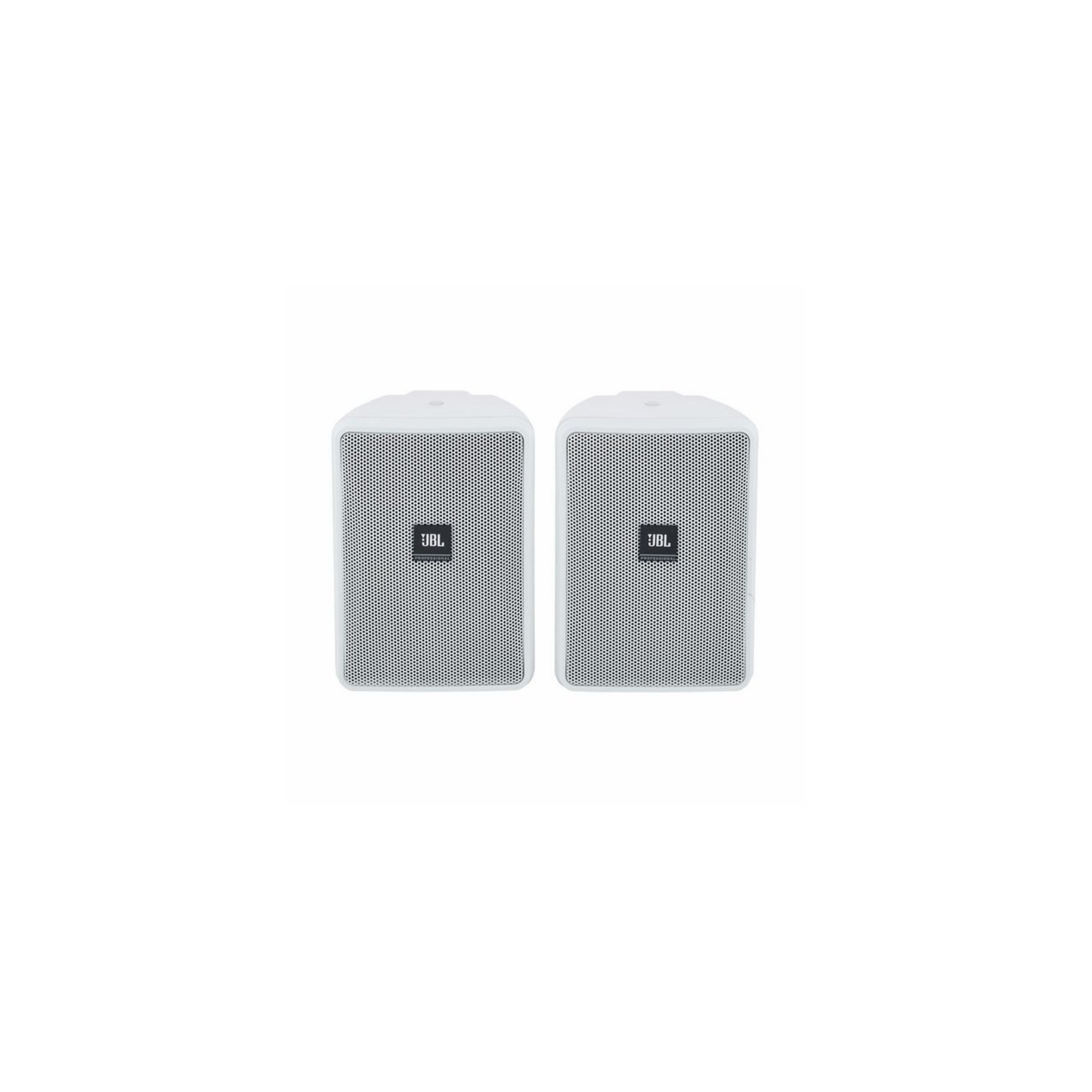

JBL Control 23-1 Ultra-Compact Indoor/Outdoor Background/Foreground Speaker (White) - Pair

Designed by JBL, these Control 23-1 loudspeakers are two-way 3" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware.
This hardware allows you to install the speakers through a hidden access point behind its logo badge.
As such, the Control 23-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 100W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines.
With an SPL of 103 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations.
Additionally, their PEI diaphragms render a smooth high-frequency response.
But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.

Also, while the Control 23-1 comes in a white finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.

- 3" woofers with woven fiberglass cone
- 0.5" PEI diaphragm tweeters with fluid cooling
- Built-in InvisiBall mounting hardware
- Weather-resistant enclosure and transducers
- 100° x 100° coverage
- 100W power handling of programmatic material in direct 8 Ohms setting, plus built-in multi-tap transformers
- Frequency response of 70 Hz to 20 kHz.

Speaker
Active/Passive : Passive
Speaker Configuration : 2-Way
Power Handling:
- For 100 Hours: 40 W RMS | 160 W Peak
- For 2 Hours: 100 W Program | 50 W RMS | 200 W Peak
Constant Voltage / Transformer Taps:
- 100 V: 15 / 7.5 / 3.7 W or 8 Ohms Bypass
- 70 V: 15 / 7.5 / 3.7 / 1.8 W or 8 Ohms Bypass
Impedance: 8 Ohms (Thru Setting)

Drivers
HF Driver : 0.5" / 13 mm PEI Tweeter
LF Driver : 3" / 76 mm Fiberglass Woofer

Performance
Frequency Response:
- 70 Hz to 20 kHz ±10 dB
- 95 Hz to 19 kHz ±3 dB
Sensitivity: 86 dB
Coverage Angle: 100° H x 100° V
Directivity:
- 5.8 (Directivity/Q Factor)
- 7.2 dB (Directivity Index)
Crossover:
- Low-Pass: 12 dB/Octave
- High-Pass: 12 dB/Octave
Recommended High-Pass Filter: 70 Hz, 24 dB/Octave
Maximum Input Voltage: 17.2 V RMS | 34.4 V Peak
Transformer Insertion Loss: <0.43 dB

Connectivity
Inputs/Outputs : Screw Terminal
Maximum Wire Gauge : 12 AWG / 2.5 mm

Environmental
Certifications : RoHS, UL
Environmental Protection : Dust/Water-Resistant (IP44)

Physical
Color: White
Construction Material: High-Impact Polystyrene, Metal Grille
Dimensions: 7.9 x 5.6 x 4.4" / 200 x 141 x 111 mm
Weight: 4 lb / 1.8 kg

Control 23-1 Ultra-Compact Indoor/Outdoor Background/Foreground Speaker (White) - Pair
1x InvisiBall Wall-Mounting System
