ART 912-A

Name: ART 912-A
Brand: RCF
SKU: ART 912-A
Price: 2220680 NGN
Availability: InStock

RCF

EAN: 8024530019105

Two-Way 12" 2100W Powered PA Speaker with Integrated DSP

go to the technical sheet

₦ 2,220,680.00

₦ 2,065,749.00 VAT excl.

Available 2 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

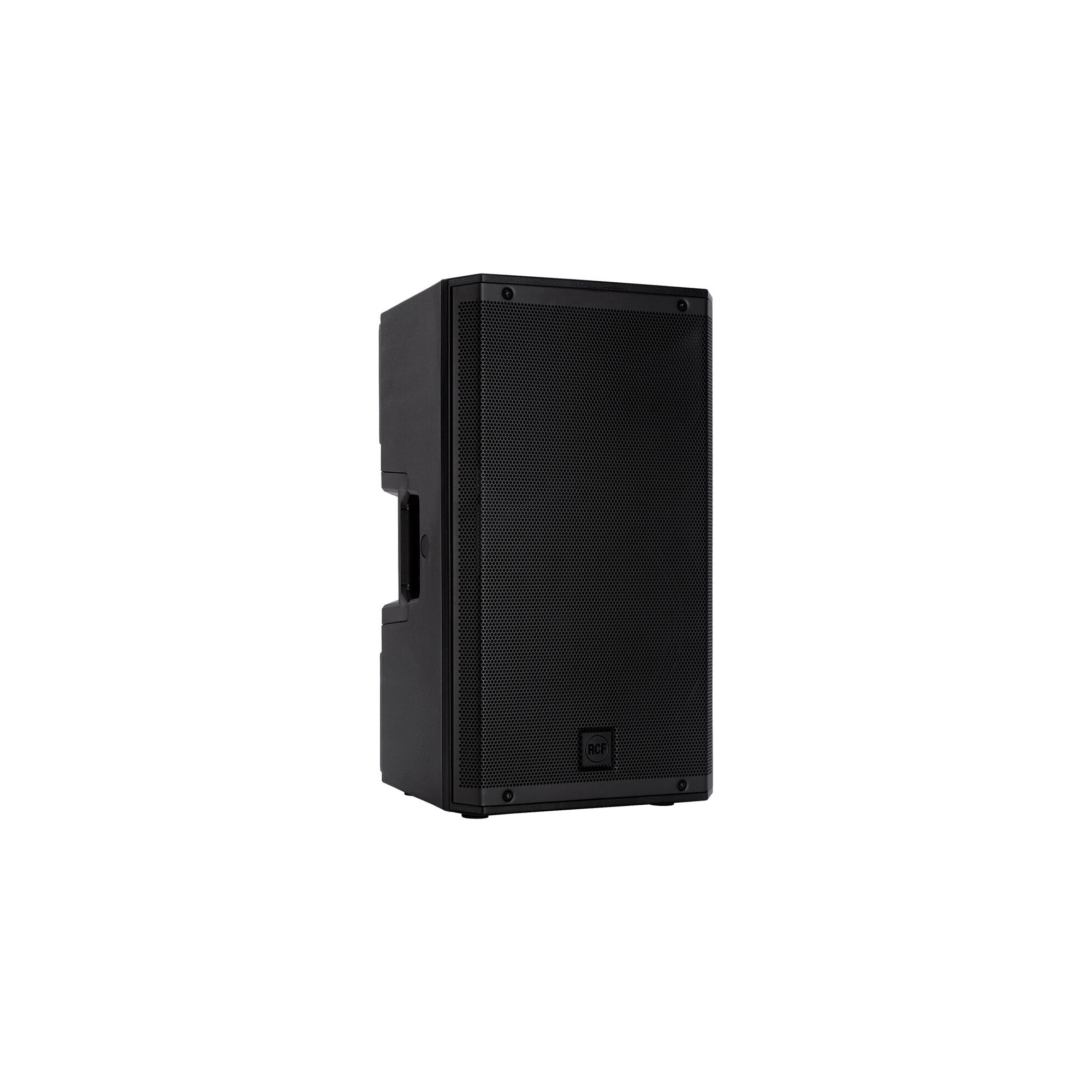

Designed to deliver stellar audio performance and versatility for intensive audio applications, the 12" RCF ART 912-A is a highly flexible, easy to use, 2100W powered PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of ART 912-A's is well equipped to cover an audience of up to 300.

A push button on the back of the speaker allows you to physically switch between three preset modes: Linear, for standard applications, Boost, which provides loudness equalization for background music played at low volumes, and Stage, for using the speaker as a stage monitor. The ART 912-A employs True Resistive Waveguide technology, which incorporates several refinements of the transducers and the vented port design to create a resonance-free signal that reduces high-frequency distortion. The speaker also utilizes Bass Motion Control (BMC), which bypasses the need for a high-pass filter and instead uses an advanced woofer excursion management feature that can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

A single combo XLR-1/4" connector can accept both unbalanced and balanced signals. There is also an XLR Thru-Output for daisy-chaining to additional speakers or other audio equipment. The highly efficient 2100W Class-D bi-amplifier delivers 1400W to the 12" woofer and 700W to the 1.75" compression driver, which provide full-range audio (50 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. The ART 912-A includes a power cord.
At a Glance

Up to 130 dB sound pressure level
2100W Class-D Bi-Amplification
50 Hz to 20 kHz linear frequency response
1.75" compression driver
12" woofer
FiRPHASE zero-degree phase technology
Bass Motion Control (BMC) woofer excursion management

Specifications
____________________________
Configuration : Active 2-Way
Enclosure Type : Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity: 2100 W
Amplifier Power Rating
&emsp,LF: 1400 W Peak
&emsp,HF: 700 W Peak
Amplifier Class: Class-D

Drivers
____________________________
HF Driver : 1 x 1" / 25.4 mm Titanium Compression Driver
HF Voice Coil 1.75" / 44.45 mm
MF Driver : None
LF Driver 1 x 15" / 381 mm Woofer
LF Voice Coil 2.5" / 63.5 mm

Performance
____________________________
Frequency Response 45 Hz to 20 kHz
Maximum SPL 131 dB (Peak)
Coverage Angle 100° H x 60° V
Protections RMS, Signal Limiter, Thermal

Connectivity
____________________________
Audio I/O
1 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Input
1 x XLR 3-Pin Male Balanced Thru/Output
Network I/O: None
USB None
Wireless Connectivity: None

Signal Processing
____________________________
Crossover High-Pass: 1800 Hz (Internal)
EQ : None
Parametric EQ : None
Semi-Parametric EQ: None
Dynamic Processing : Soft Limiter
Alignment Delay: None
Phase Adjustment : None
Digital Signal Processing : FIR Filter, Venue Settings

Power
____________________________
AC Input Power: 100 to 120 VAC, 60 Hz
AC Power Connector : 1 x IEC Input
Power Consumption : 300 W

Physical
____________________________
Mounting 2 x M10 Fly Point (Top)
1 x M10 Fly Point (Each Side)
1 x 1.38" / 35 mm Pole Socket (Bottom)
Handles :
1 x Top
1 x Each Side
Cooling : Convection, Heat Sink
Construction Material : Composite, Stainless Steel Grille
Dimensions : 28.2 x 16.3 x 16.1" / 716.3 x 414 x 408.9 mm
Weight : 48.5 lb / 22 kg

Packaging Info
____________________________
Package Weight : 57.5 lb
Box Dimensions (LxWxH) : 30.25 x 19 x 19"
