Vision+ SE - Black HDMI

Telycam

768486167678
Camera NDI | HX/3G-HDMI | 12x | 4K60 | Auto-tracking - Black
go to the technical sheet
₦ 1,360,288.00

₦ 1,265,384.45 VAT excl.

Available 3 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Telycam Camera NDI | HX/HDMI | 12x | 4K60 | Auto-tracking - Black

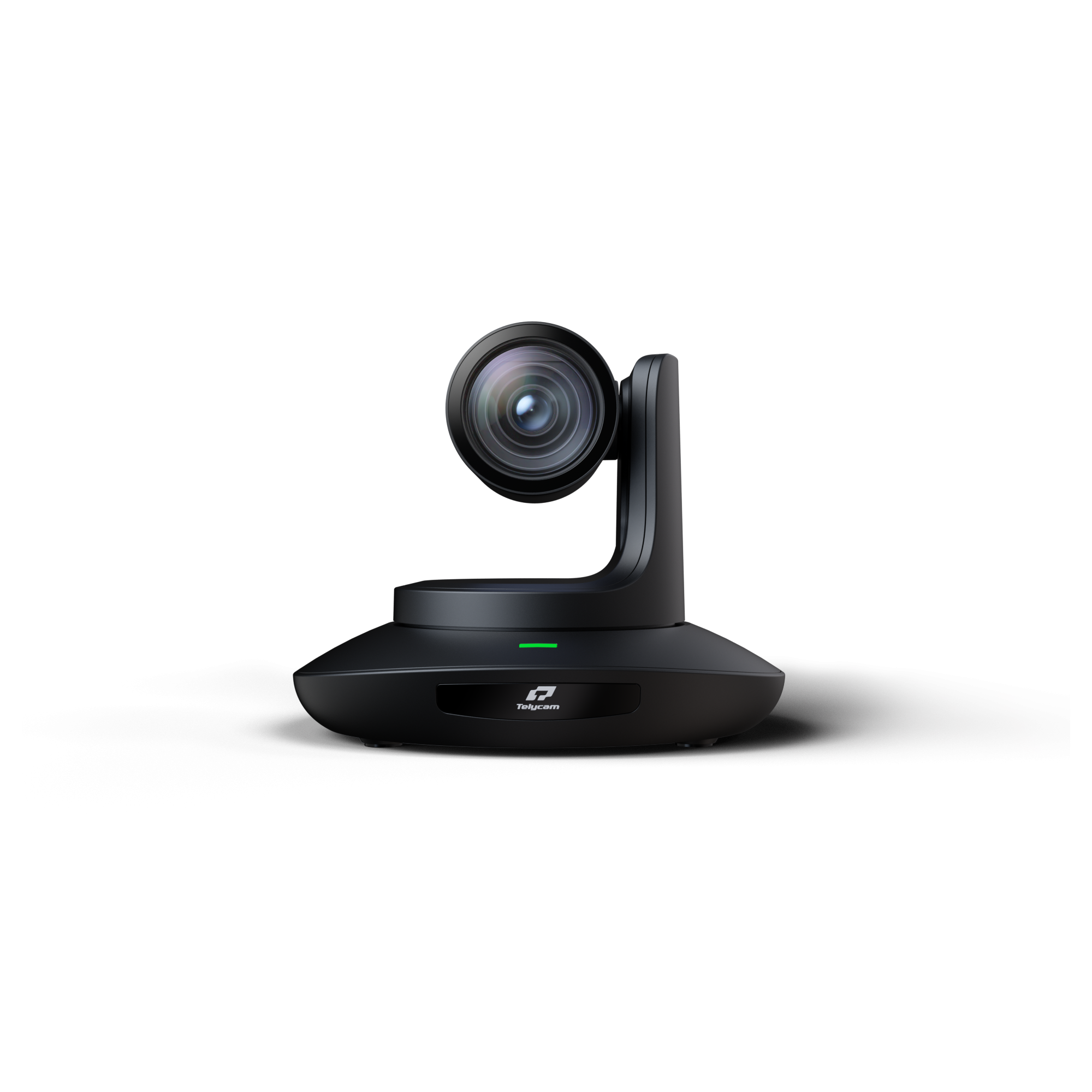

The Vision+ SE is a true 4K60 12X PTZ camera equipped with an integrated native auto-tracking feature.
It seamlessly integrates with the latest NDI SDK.
Incorporating the most advanced American image processing solution and featuring a cutting-edge.
Sony 1/2.8-inch 8.4MP sensor and Telycam's proprietarty video camera algorithms, it effortlessly captures 4K60 ultra HD images with true-to-life colors, even in challenging low-light or high-contrast environments.
Its sleek PTZ mechanical design ensures precise pan, tilt, and zoom movements.
NDI | HX allows it to output up to 4K UHD resolution, while HDMI and USB 2.0 provide Full HD resolution output, making it an ideal choice for professional live streaming applications.
Furthermore, it offers line-in audio input, enabling simultaneous audio and video output from both NDI | HX and 3G-sDI sources.

° Unparalleled 4K UHD Brilliance
Harnessing state-of-the-art image processing, our camera takes the visual narrative a notch higher, effortlessly streaming ultra-HD video at 4Kp60/59.94.
Dive into a world of breathtaking clarity, where every shade and nuance shines, even in subdued lighting.

° Magnify with 12x Optical Mastery
Our lens isn't just about capturing, it's about immersing.
Flaunting a 4K 12x optical zoom and a generous 80.5-degree FOV, paired with a custom focusing algorithm, every zoom and pan translates to a journey through intricate details.

° Enhanced Reality with FreeD
Bridging worlds, we've embedded the FreeD protocol.
Now effortlessly sync PTZF data with your VR/AR systems, opening new dimensions in your creative arsenal.

° One-Touch Auto-Tracking Precision
Eliminate the need for third-party tools. With a straightforward click-be it through WebUI, remote control, or Telycam's specialized keyboard-the integrated auto-tracking leaps into action. Tailor your tracking to specific talents, regions, or dimensions with unmatched ease.

° Adaptable Streaming Elegance
Whether it's NDI®|HX output touching 4Kp60/59.94, HDMI, or USB-C pushing up to 1080p60/59.94, our camera gracefully adapts, making it an asset in varied streaming landscapes.

Camera
Sensor: 1/2.8 inch, 8.4MP UHD CMOS Sensor
Zoom: 12x optical zoom
Lens: f = 3.4mm ~ 40.3 mm, F1.8 ~ F3.6
Horizontal View Angle: 80.5°(Wide) ~ 7.6°(Tele)
Shortest Focus Distance: Wide:1m Tele:1.5m
Vertical viewing angle: 50.0° ~ 4.4°
Diagonal viewing angle: 88.9° ~ 8.7°
S/N Ratio: greater than or equal 50dB
Video Format:
- NDI®|HX: Main Stream: 3840*2160P15~60, 1920*1080P15~60, 1280*720P15~60, 1024*576P15~60 | Sub Stream :640*360P15~30
- HDMI:1920*1080P60/50/30/25/59.94/29.97/24/23.98, 1920*1080160/50/59.94, 1280*720P60/50/30/25/59.94/29.97- 4k up to 60p
- USB Type-C:
NV12:1920*1080P5,1280*720P15,1024*576P25,800*448P30
YUYV:1920*1080P5,1280*720P15,1024*576P25,800*448P30
MJPG:3840*2160P30,1920*1080P60,1280*720P60,1024*576P60,800*448P60
H264/H265:3840*2160P30,1920*1080P60,1280*720P60,1024*576P60,800*448P60

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux (50 IRE Max AGC,1/30,F1.8)
White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF,50Hz,60Hz
Image Flip: Support
Mirroring: Support
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Support
Backlight Compensation: Support

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~61440Kbps
Network Port Speed: 1000M
Protocol: NDI®|HX,SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D

Pan/Tilt Movement
Preset: Remote controller: 10, Serial port: 128, Accuracy:0.1°
Pan Rotation Angle: -170° ~+170°
Tilt Rotation Angle: -30° ~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s

I/O Interface
Control Port: RS232(RS485), NDI®|HX
Video Port: NDI®|HX, 3G-SDI, USB Type-C
Audio Port: 3.5mm stereo line in
Tally: Support
POE+: Support
Daisy Chain: Support

General
Input Voltage: DC12V, POE+(IEEE802.3at)
Operating Temperature: -10°C~ 50°C
Operating Humidity: less than or equal 80%
Dimension: 220mm×190mm×173mm
Net Weight: 1.5kg(3.3LBS)
Color: Black

1x Vision+ SE - Black HDMI
1x Infrared remote control
1x RS232 serial cable
1x Power supply
