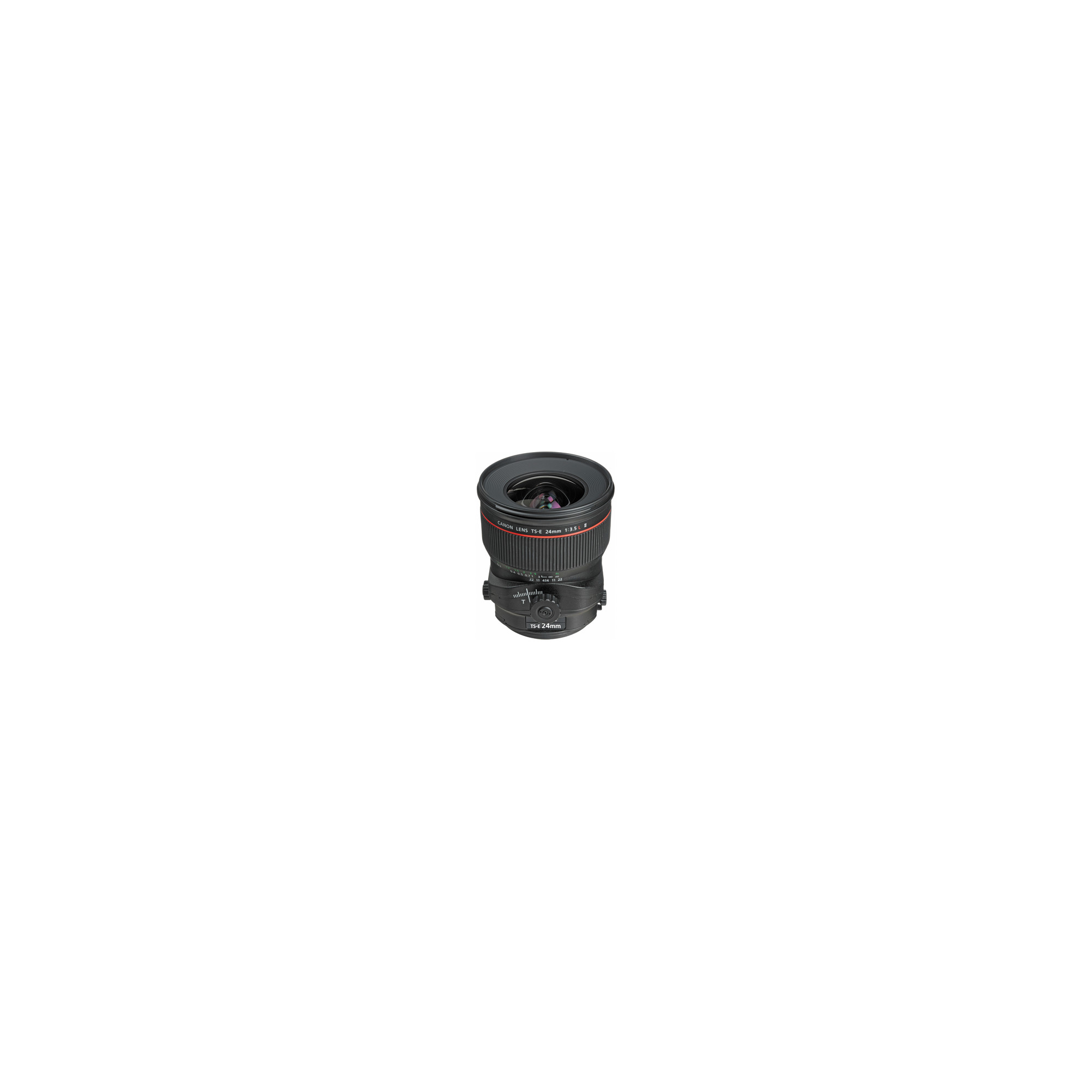

TS-E 24mm F3.5L II

For discerning architectural photographers, there is great need for wide angle lenses. Tilt and shift movements, features normally found on large format cameras, can be bestowed upon a smaller format of camera with a lens such as this wide Canon 24mm f/3.5L II TS-E Lens.

Being a Canon "L" lens, by definition it is a premium Canon optic. The 24mm TS-E has several distinct elements that make it stand apart from more common glass. Firstly, designers integrated a set of physical controls that allows users to rotate the direction of the tilt and shift independently of one another. Secondly, there is ±8.5° of tilt and ±12mm of shift that gives photographers ample ability to correct for perspective when taking images of interior or exterior spaces, and landscapes.

EF mount lens is compatible with all Canon EOS cameras

Wide image circle of 67.2mm is 50% greater than 35mm/full frame film area

High precision glass (16 elements/11 groups) for low distortion and high resolution to the edge of the image

Tilt and shift mechanism rotates ±90° allowing shift in any direction

Tilt mechanism rotates ±90° allowing tilt in any direction relative to the shift

One Aspherical and three UD lens elements minimize chromatic aberration

Sub-wavelength structure and super-spectra coatings minimize ghosting and flare

Circular aperture for creative, blurred highlights

Specifications

Performance
Focal Length 24 mm
Aperture Maximum: f/3.5
Minimum: f/22
Camera Mount Type Canon EF
Format Compatibility 35mm Film / Full-Frame Digital Sensor
Canon (APS-C)
Angle of View 84°
Tilt/Shift Tilt ± 8.5° in 1° increments
Shifts ± 12mm in 1mm increments
Minimum Focus Distance 8.27" (21cm)
Magnification 0.34x
Maximum Reproduction Ratio 1:2.9
Groups/Elements 11/16
Diaphragm Blades 8
Features
Image Stabilization No
Autofocus No
Tripod Collar No
Physical
Filter Thread 82 mm
Dimensions (DxL) Approx. 3.5 x 4.2" (8.89 x 10.67cm)
Weight 27.5 oz (780g)
