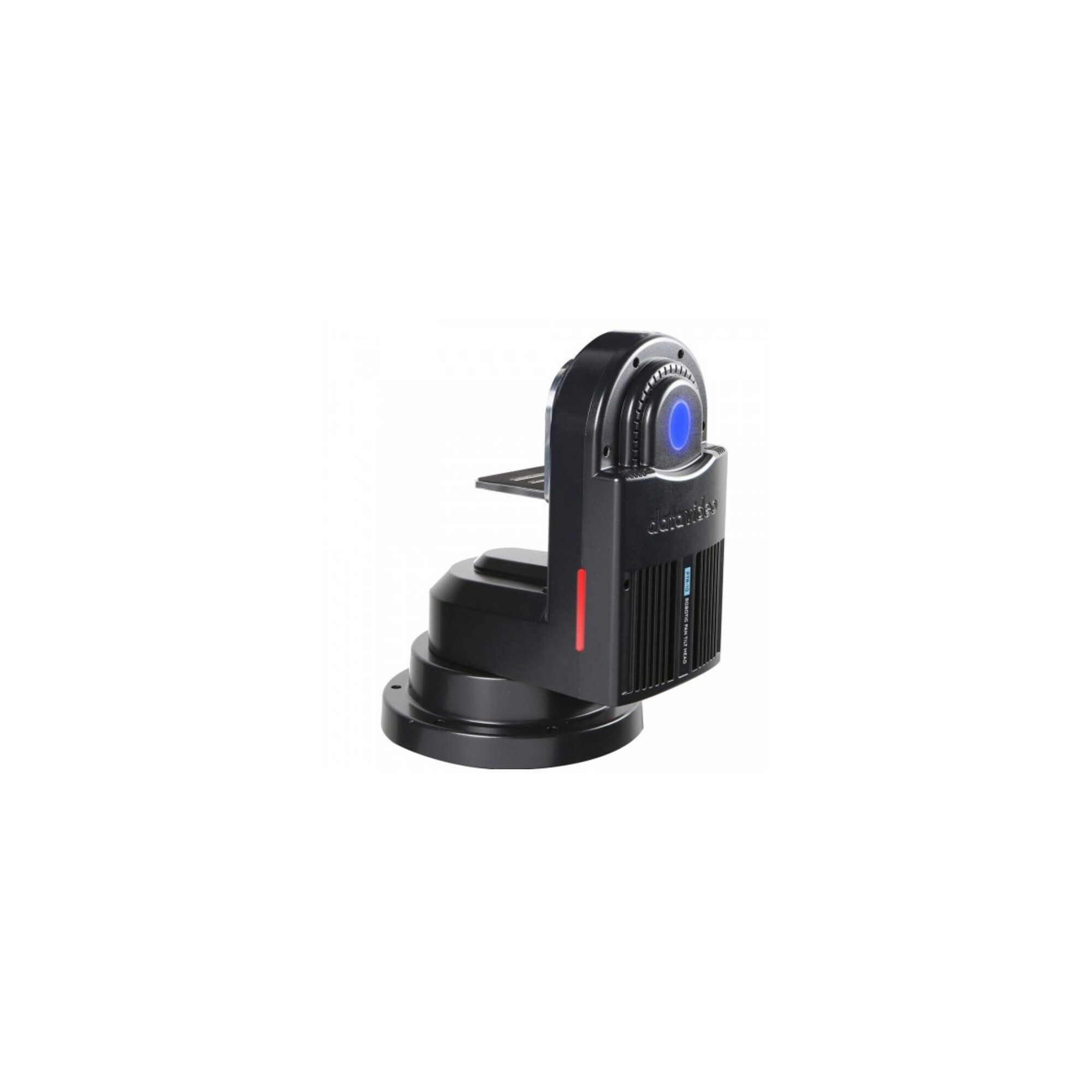

PTR-10MKII

Robotic Pan Tilt Head Transform any camera into a PTZ camera.

Multiple signal interface:
SDI, HDMI, RS-232, RS-422, DVIP, Tally, LANC

Diversified controller options:
RMC-180, RMC-300C with Control of Pan, Tilt, Zoom and much more

Strong and sturdy aluminum alloy material design
Tally light built-in, great design for Live event

Supports Zoom control:
For Datavideo block cameras and various brand lens with power supported

PTR-10 Robotic Pan Tilt Head
Video Interface HDMI x 1
SDI x 1
Video Output 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit RMC-180
RMC-300C
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.2~15° /Sec
Tilt: 0.1~10° /Sec
Preset Pan/Tilt position 50
Control Distance 1,200M by RS422
100M by DVIP
Control Protocal Sony VISCA
DVIP
Control Input RS-422
DVIP
Maximum Load 4 KG Max
Control Output RS-232
RS-422

BX-Lens:
LanC
Power Requirement DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply DC 12V, 2A Max
Operating Temp. Range: 0~40 C°
Weight: 3.4 kg
Dimension: 230 x 190 x 300 mm
