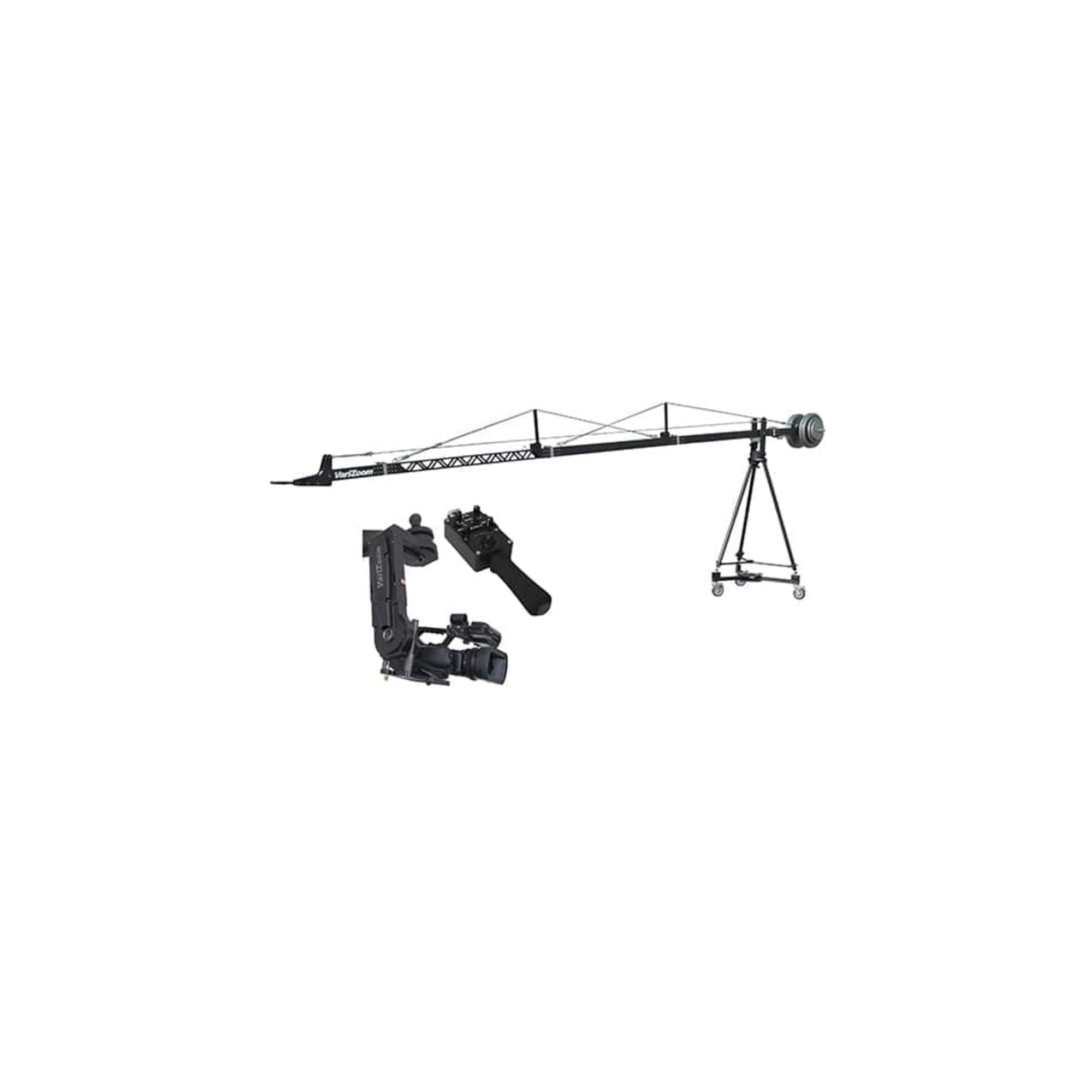

VZ-SNAPCRANE16-CPJR

VariZoom VZ-SNAPCRANE16 Snapcrane
Construction: Steel and Aluminum
Payload Capacity: 30 lbs/13.6kg On Low Angle
Counterbalance System:
- Round Weights
- Purchased Separately
Height Range:
Overall length: 18'' 4"
Distance from tripod to camera: 15'' 6"/14'' 8" (rear/front pivoting hole)
Vertical movement & maximum height: 16'' 6"/15'' 10" & 18'' 3"/17'' 7"
Tilt Lock: No
Tilt Drag: One Setting
Pan Lock: No
Spring Loaded Counter Balance: One Setting
Pan Range: 360°
Tripod Attachment: Varizoom Specific
Head Attachment: Varizoom Specific
Head Arm Leveling: Manual
Leveling Indicators: None
Fold Down: 55"/139.7cm
Weight: 74.35 lbs/33.7kg

VariZoom VZCINEMAPRO-JR-K5 Cinema Pro Jr Remote Head with Jibstick Jr Control Unit
Load Capacity: 35.00 lb (15.87 kg)
Clearance:
For Camera
- Minimum: 15.0" (381.0 mm)
- Maximum: 18.5" (469.9 mm)
Pan/Tilt Speed: 130°/sec (limited for optimal performance)
Mechanical: Mechanical Travel: Unlimited Pan, tilt may be limited by cable twist past 720°
Connector:
Head Base Connectors
Controller: 7pin LEMO (green)
XLR 4-pin Head/Camera Power
Passageway for external cables (video, lens control, etc.) Head Top connectors
Lens Control Out to camera/lens/lens drive: 16-pin LEMO (orange)
Camera Power Out: 2-pin LEMO (red) Controller Connectors
Control: 7-Pin LEMO - Head control cable (green)
Serial: 8-pin LEMO - TOC or Preston Lens Drive Hand Units (gray)
Analog: 5-pin LEMO - Pan Bars zoom & focus controls (white)
Power Requirements: 24 VDC (regulated), 5 A
Dimensions: 20.50 x 11.30 x 6.00" (520.70 x 287.02 x 152.40 mm)
Weight: 13.00 lb (5.89 kg)

VariZoom VZ-SNAPCRANE16 Snapcrane
Crane
Tripod
Dolly
Hardware Kit
Soft Padded Case
VariZoom VZCINEMAPRO-JR-K5 Cinema Pro Jr Remote Head with Jibstick Jr Control Unit
CinemaPro Remote Head
Jibstick Jr. Controller
50'' Control Cable
30'' XLR Power Extension
Power Supply
Case
