Varizoom

Crane Ultimate 9' (2.74 m), 50lbs (22.7 kg) payload, steel and aluminum - Black
go to the technical sheet
₦ 16,090,061.00

₦ 14,967,499.00 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant
VariZoom Crane Ultimate 9' (2.74 m), 50lbs (22.7 kg) payload, steel and aluminum - Black

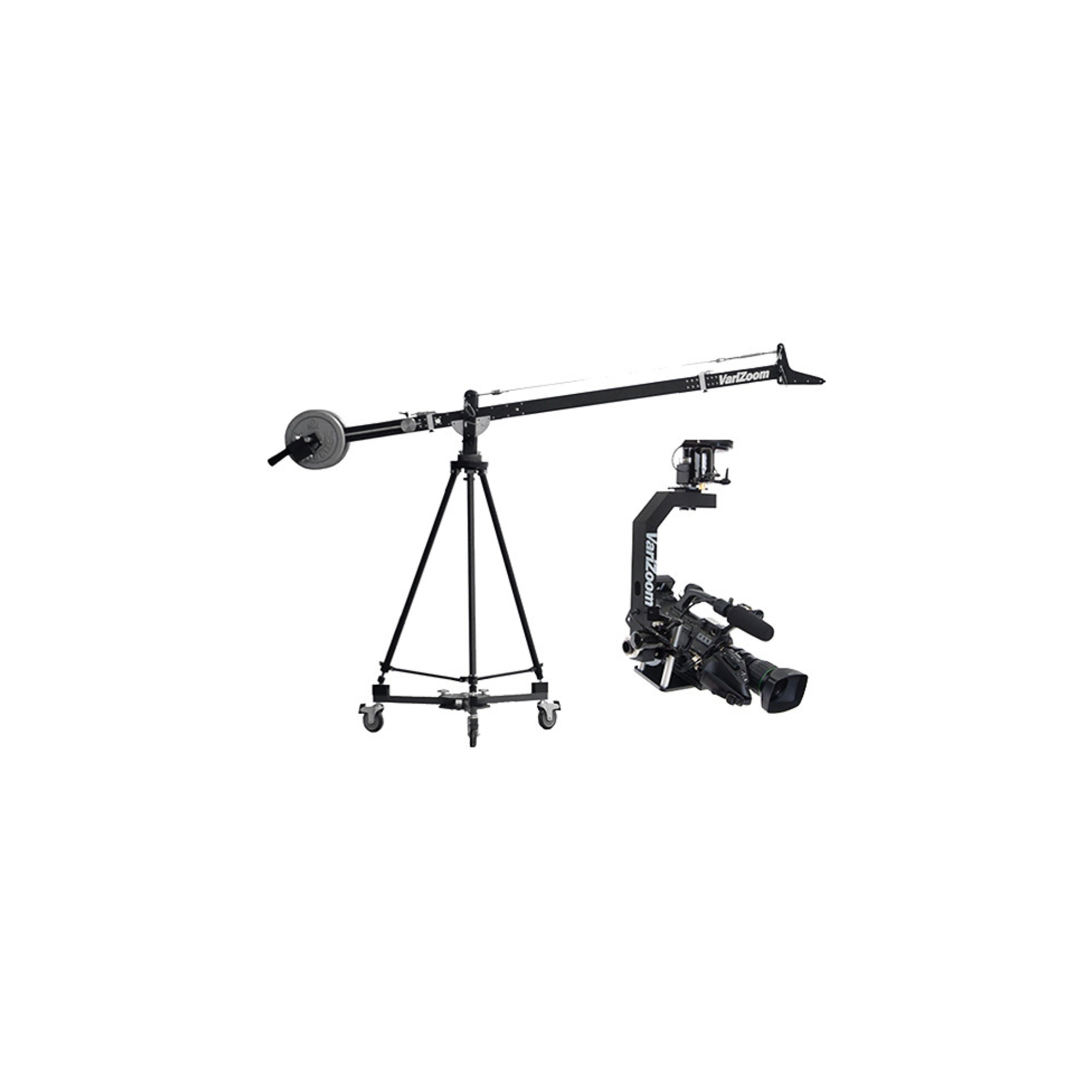

The Varizoom SnapCrane9-100 is a 9 ft (2.74m) crane and pan/tilt system that combines portability with professional functionality and design.
This package includes everything you need to get your camera airborne, while the system's modular design provides the option of up to four different-length setups for a variety of shooting situations and needs.
Included with this kit are the MC100 electronic pan/tilt head--for increased maneuverability and control of large cameras weighing up to 30 lbs/14 kg.

° MC100 Pan/Tilt Head
Utilizing rugged and field tested electronics and controls, the MC100 head mounts to nearly any jib or tripod and gives you total remote operation of large video cameras weighing up to 30 lbs/14 kg.
Able to be integrated into permanent AV systems in studios or churches, the MC100 gives you full capability to pan and tilt 360° from the slowest sustained crawl to the rapid moves needed to follow the action.
The MC100's light weight, universal mounting base and intuitive control box make it a breeze to set up and operate, while its rugged, waterproof carrying case with customized foam insert will protect the MC100 for storage or transport via air or land.
Also comes with control box, 2 custom-geared motors, power adapter, 20'/6m extension control cables, and mounting hardware.

° DCR100 Dolly
Our heavy-duty dolly has an ample spread, rugged solid-rubber wheels, foot brakes, and a positive leg-locking system that securely captures our TCR100 crane tripod. Includes padded carrying case.

° TCR100 Crane Tripod
Our custom TCR100 is the only tripod we recommend for use with any crane, no matter the brand.
We recommend you never use a telescoping or collapsible tripod under a crane, no matter how small.
When supporting an expensive camera on a jib elevated above other valuable equipment or people, it is simply a no-brainer to eliminate all risk and use a single-section tripod instead of a telescoping type.
The TCR100 was designed with safety and strength in mind, combining a solid machined baseplate (not molded), specialty heavy-gauge tubing, and oversized leveling feet for an ultra-stable design that will never falter or fail.
With anodized aluminum, stainless steel fasteners and solid brass bushings, the TCR100 will last a lifetime.


Construction: Steel and Aluminum
Payload Capacity:
- Mid-size Setup
- With MC100 Pan/Tilt Head: 30 lbs (13.6kg)
- Without Head: 50 lbs (22.7kg)
Counterbalance System: Round Weights (Purchased Separately)
Height Range:
- Max Camera Height: 10'' 9" (3.28m)
- Vertical Movement: 9'' (2.74m)
- Assembled Length: 9'' 3" (2.82m)
- Tripod to Camera: 6'' 7" (2m)
Tilt Lock: No
Tilt Drag: One Setting
Tilt Range: +90°/-90°
Pan Lock: No
Spring Loaded Counter Balance: One Setting
Pan Range: 360°
Tripod Attachment: Varizoom Specific
Head Attachment: MC100 Pan/Tilt Head
Head Arm Leveling: Manual
Leveling Indicators: None
Fold Down: 55" (139.7cm)
Weight:
- Mid-size Setup
- Crane/Arm/Base: 49.9 lbs (22.6kg)
- MC100 Head: 8.5 lbs (3.85kg)

VariZoom SnapCrane9-100 Ultimate 9'' (2.74m) Crane & Pan/Tilt System
VariZoom VZ-MC100 Pan and Tilt Control System
Jib Arm/Crane Body
Pan/Tilt Base
Dovetail Joints
Quick-Release Pins
DCR100 Dolly
TCR100 Crane Tripod
Cables & Couplings
Crane Case
Dolly Case
