VZSC-CPM4

Name: VZSC-CPM4
Brand: Varizoom
SKU: VZSC-CPM4
Price: 33505868 NGN
Availability: OutOfStock

Varizoom

Crane 16 Kit and CinemaPro Micro K4 Remote Head System - Black

go to the technical sheet

₦ 33,505,868.00

₦ 31,168,249.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

VariZoom Crane 16 Kit and CinemaPro Micro K4 Remote Head System - Black

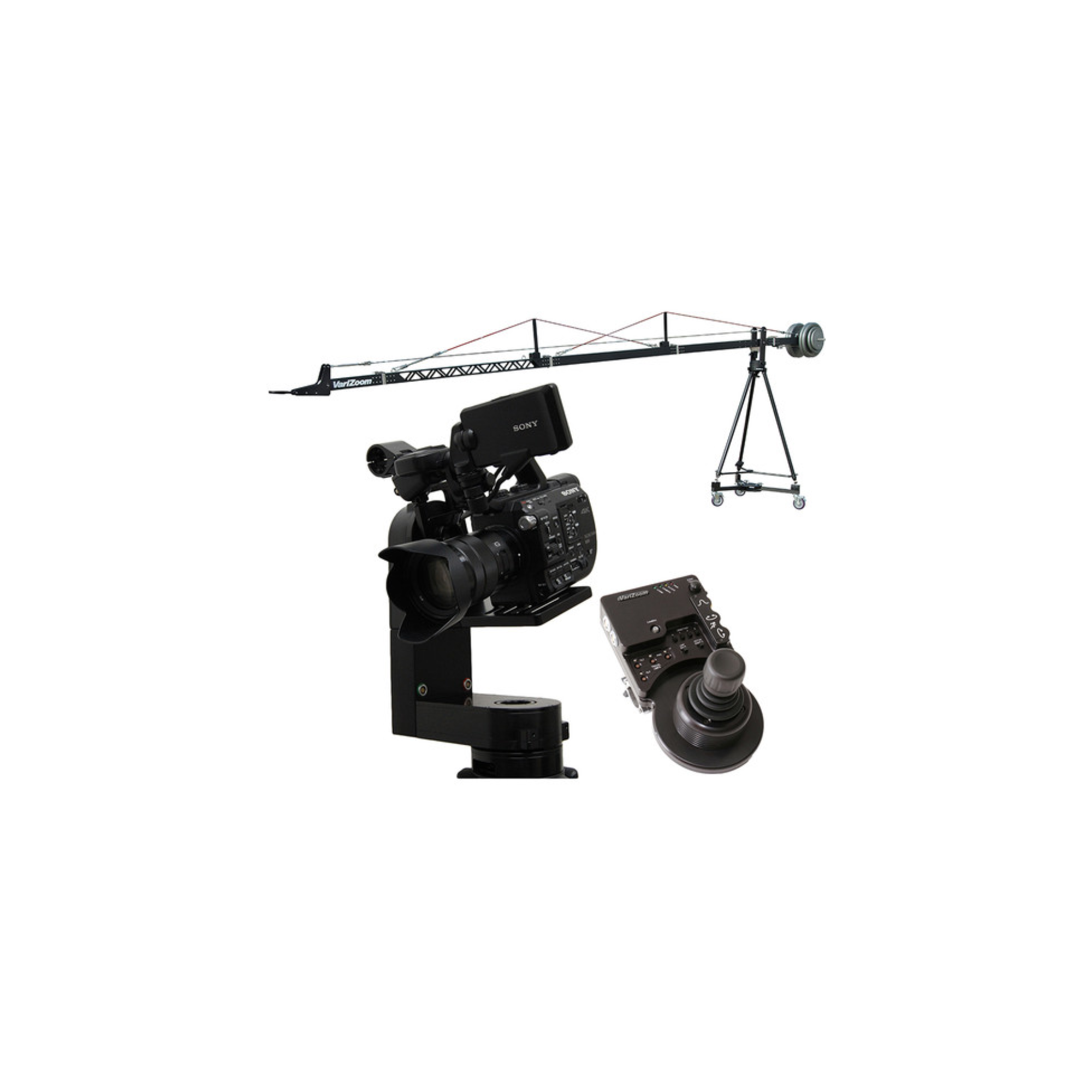

The VZSC-CPM4 SnapCrane 16 Crane & CinemaPro Micro K4 System from VariZoom includes the SnapCrane 16 camera crane kit and CinemaPro Micro K4 remote head for cameras weighing up to 12 lb (5.44 kg).
The SnapCrane 16 camera crane attaches to the custom TCR100 crane tripod, which fits perfectly into the heavy-duty DC100 adjustable dolly.
Its compact modular design provides the option of up to four different-length setups for a variety of shooting situations and needs.

The CinemaPro Micro K4 remote head comes with a Jibstick Pro controller, which is a professional long-throw joystick mounted in a palm rest housing.
The controller offers custom pan/tilt motion limits, integral lens control via a plug-in pistol-grip zoom/focus remote, speed and smoothing control, motor disable, and pan/tilt/zoom/focus direction switches.

VariZoom VZ-SNAPCRANE16 Snapcrane
Construction: Steel and Aluminum
Payload Capacity: 30 lbs/ 13.6kg On Low Angle
Counterbalance System:
- Round Weights
- Purchased Separately
Height Range:
Overall length: 18'' 4"
Distance from tripod to camera: 15'' 6"/14'' 8" (rear/front pivoting hole)
Vertical movement & maximum height: 16'' 6"/15'' 10" & 18'' 3"/17'' 7"
Tilt Lock: No
Tilt Drag: One Setting
Pan Lock: No
Spring Loaded Counter Balance: One Setting
Pan Range: 360°
Tripod Attachment: Varizoom Specific
Head Attachment: Varizoom Specific
Head Arm Leveling: Manual
Leveling Indicators: None
Fold Down: 55"/139.7cm
Weight: 74.35 lbs/33.7kg

VariZoom CP Micro Remote Head with Jibstick Pro Controller (100mm Mount)
Pan/Tilt Speed: 130°/sec
Clearance:
° Camera Clearance:
Vertical: 7" (17.8 cm) from center of camera plate to base
Horizontal: 8.3 to 10.5" (21 to 26.7 cm)
° With 3" Head Extension:
Vertical: 10" (25.4 cm)
Horizontal: 11.3 to 13.5" (28.7 to 34.3 cm)
Mount Type: 100 mm ball
Maximum Camera Weight: 12 lb (5.4 kg)
Cable Extension Length: 300'' (91.4 m)
Power Requirements:
- 24 VDC regulated, 4 A maximum
- 20 to 30 VDC absolute min/max
Dimensions: 13 x 4 x 6" (33.0 x 10.2 x 15.2 cm)
Weight: 7 lb (3.2 kg)

VariZoom VZ-SNAPCRANE16 Snapcrane
Crane
Tripod
Dolly
Hardware Kit
Soft Padded Case
VariZoom CP Micro Remote Head with Jibstick Pro Controller (100mm Mount)
Jibstick Pro Controller
AC Power Supply with 25'' Cable
25'' Control Cable
100mm Ball Mount
Hard Carrying Case
