DJI Transmission Combo

DJI - Broadcast high definition video over 3 miles (in line of sight) from your DJI drone or gimbal gear for monitoring with this DJI Broadcast Combo. The combination includes a transmitter and a monitor / receiver that transmits video up to 1080p60 using highly efficient O3 Pro transmission technology over 2.4 and 5 GHz Wi-Fi frequencies. Optional high-gain antennas can be purchased to increase the quality. and the distance of the signal. The high brightness monitor offers a brightness of 1500 cd / m², a resolution of 1920 x 1200 and a touchscreen display.

The system supports automatic frequency hopping to find the strongest signal and works using AES 256 encryption to protect your video from prying eyes. It allows you to transmit to two receivers at the same time in control mode and, in broadcast mode, it can transmit to an unlimited number of receivers with slightly lower performance. Control mode allows you to control the gimbal or camera using the touchscreen or by physical gestures using the built-in gyro sensor.

The units can be powered via an optional L-series battery or its DC power input, or they can be powered directly from a DJI gimbal such as Ronin 2 or RS 3. The monitor provides multiple imaging tools such as frame guide, waveform , and false colors and allows you to import custom LUTs.

Long distance HD live feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible ground transmission distance of 20,000 feet. It also supports 1080p60 transmission with a maximum bitrate of 50 Mb / s, as well as live audio monitoring at 16-bit at 48kHz, providing teams on large sets with an excellent remote visual and audio monitoring experience.

End-to-end ultra-low latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with each link explicitly optimized to provide extremely low end-to-end transmission latency when paired with cinema cameras such as ARRI ALEXA Mini LF.

Automatic frequency hopping without interruption
O3 Pro adds a DFS band in addition to the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
DJI Transmission supports automatic triple band frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
By mounting high gain antennas, the transmission capacity is further enhanced.

A transmitter with several receivers for coordinated shooting
There are two transmission modes available.
In control mode, DJI Transmission offers optimal transmission performance. Monitoring can be done by two receivers simultaneously, while the Ronin 2 and RS 3 Pro gimbal and camera can be controlled remotely.
The transmission mode can be enabled in addition to the control mode to enable an unlimited number of receivers (the transmission performance differs from the control mode).
On larger, more dynamic devices, DJI Transmission can work with 20 or more transmitters sending signals to 20 or more devices, providing a smooth, coordinated experience that's difficult to achieve with traditional transmission setups.

Encrypted transmission
DJI Transmission supports connection and AES 256-bit encryption to prevent leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the safety of your footage.

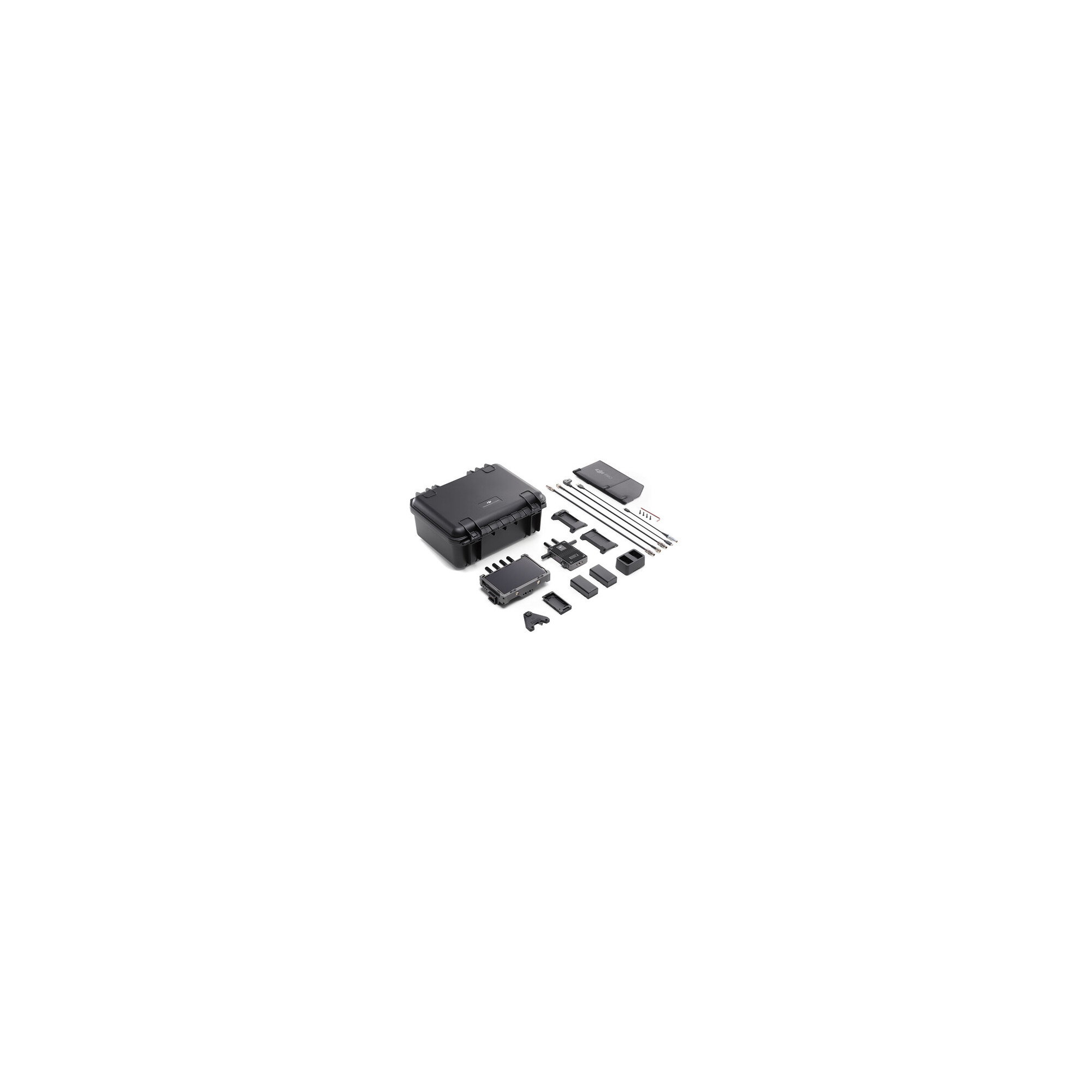

In the box
DJI transmission combo
DJI wireless video transmitter
High brightness remote RX monitor
Remote monitor hood
WB37 (TX) Battery Adapter
WB37 smart battery
WB37 Battery Charging Hub (USB Type-C)
L Series Battery Adapter (TX)
L Series Battery Adapter (RX)
USB Type C to LEMO power cable
RS gimbal mounting plate
USB Type-C cable
SDI cable
DC power cable
DC to D-Tap power cable
Installation tool kit
Protective case
1 year limited warranty
