Feelworld

Monitor 5,5" 2600 Nit 3D LUT Touch Screen Camera Field Monitor IPS FHD1920x1080
go to the technical sheet
€ 633,71

€ 589,50 VAT excl.

Available in 4 days
Not sure if this is the right product for you? Talk to a consultant
High brightness monitor, visible in sunlight. The 2600 nit high brightness screen is nearly 5 times the brightness of conventional field monitors, allowing you to shoot outdoors without fading reflections. This makes outdoor viewing without a hood easier, making it easier to shoot outdoors in broad daylight!

It is possible to increase or decrease the brightness and volume by simply swiping up or down, swipe from the bottom of the screen to access the context menu, double click on the shortcut customization function. It supports up to 50 custom LUTs.
LUT6S displays a high dynamic range (HDR) signal for incredible clarity and detail. It has a maximum resolution of 1920 x 1080, a contrast ratio of 1000: 1 and sRGB / Rec.709 Color Gamut, enjoy a sharper and richer color image.
4K HDMI loop input and output, It has built-in fan to dissipate heat when the backlight brightness is greater than 80.
3DLUT HDR / De-log integrator
LUT6 has HLG 2020, HLG 709, HLG P3 HDR 3D LUT and Rec709 De-slog3 LUT built in, include SLOG2, SLOG3, LOGC, VLOG. The monitor can display a high dynamic range (HDR) signal for incredible clarity and detail, simplifies the complexities of recording and HDR recording, helping you replicate post-production workflows when it matters most, During shooting.
It has Waveform and Vectorscope functions, histogram, zebra, peacking, zoom etc.
Power supply with L series Sony batteries (not included).

Model: F6 LUT
Screen Size: 5,5" Touch Screen
Resolution: 1920x1080 pixels
Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
Aspect Ratio: 16:9
Brightness: 2600 Nit
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D

Input:
1 X HDMI
1 X Type-C

Output:
1 X HDMI
1 X DC Output

Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

Input Voltage: DC7-24V
Power Consumption: =9W
Power Connector: DC
Working Temperature: -20°C-55°C
Storage Temperature: -30°C-65°C
Install Way: ¼-20 thread points (top, bottom, right)

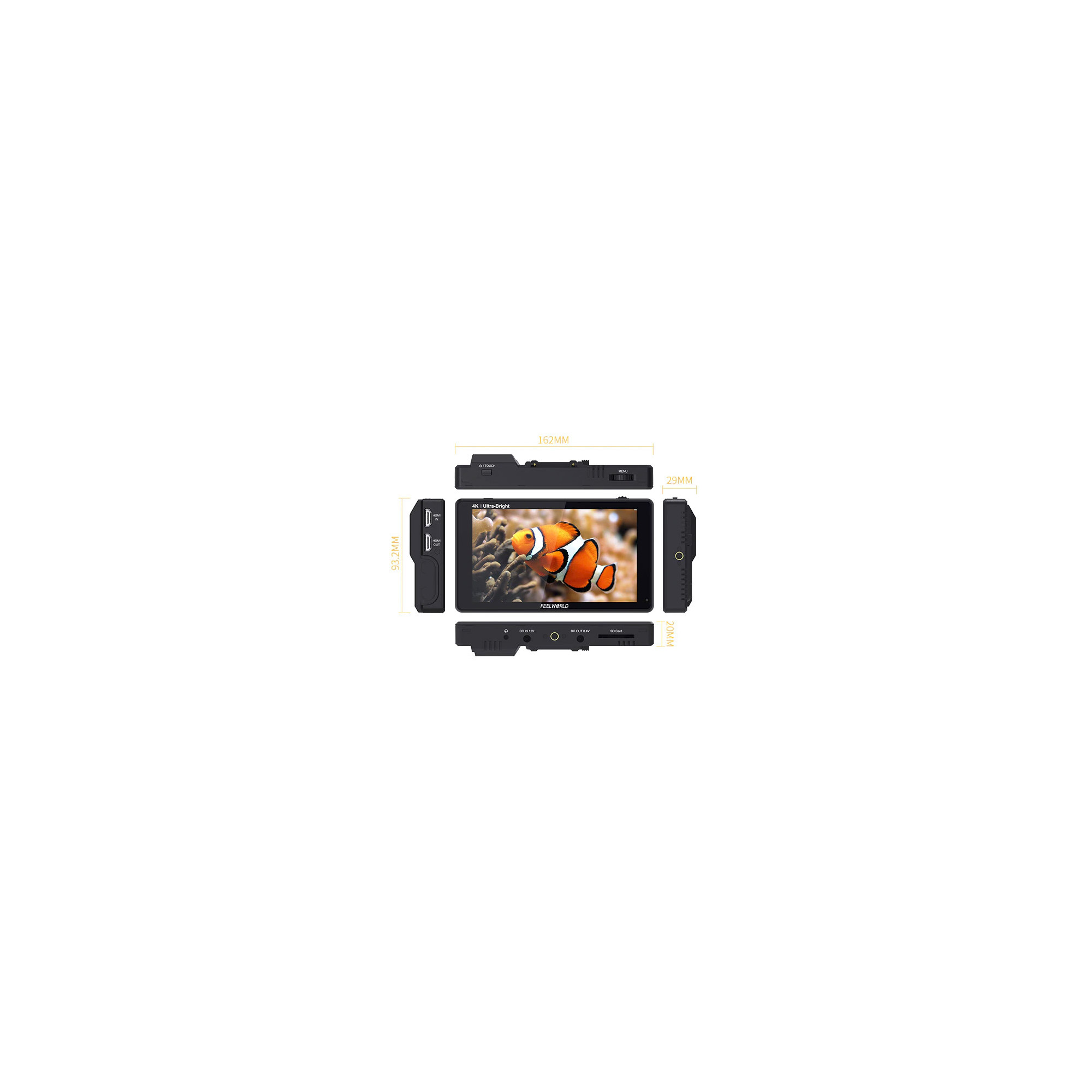

Unit Size: 148Lx93Hx20D (mm)
Unit Weight: 235g
Color Box Size: 186L*124W*80H(mm)
Outer Carton Size: 465*200*326 (mm)
