ATEM215S-CO

Name: ATEM215S-CO
Brand: Seetec
SKU: ATEM215S-CO
Price: 1282.4 EUR
Availability: OutOfStock

Seetec

EAN: 6971863810218

Monitor 21,5" IPS, 1920x1080, 4 x 4K HDMI 3G SDI in and output

go to the technical sheet

-2.5%

Save 2.5%

€ 1.282,40

€ 1.192,93 VAT excl.

€ 1.315,28

Available in 34 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

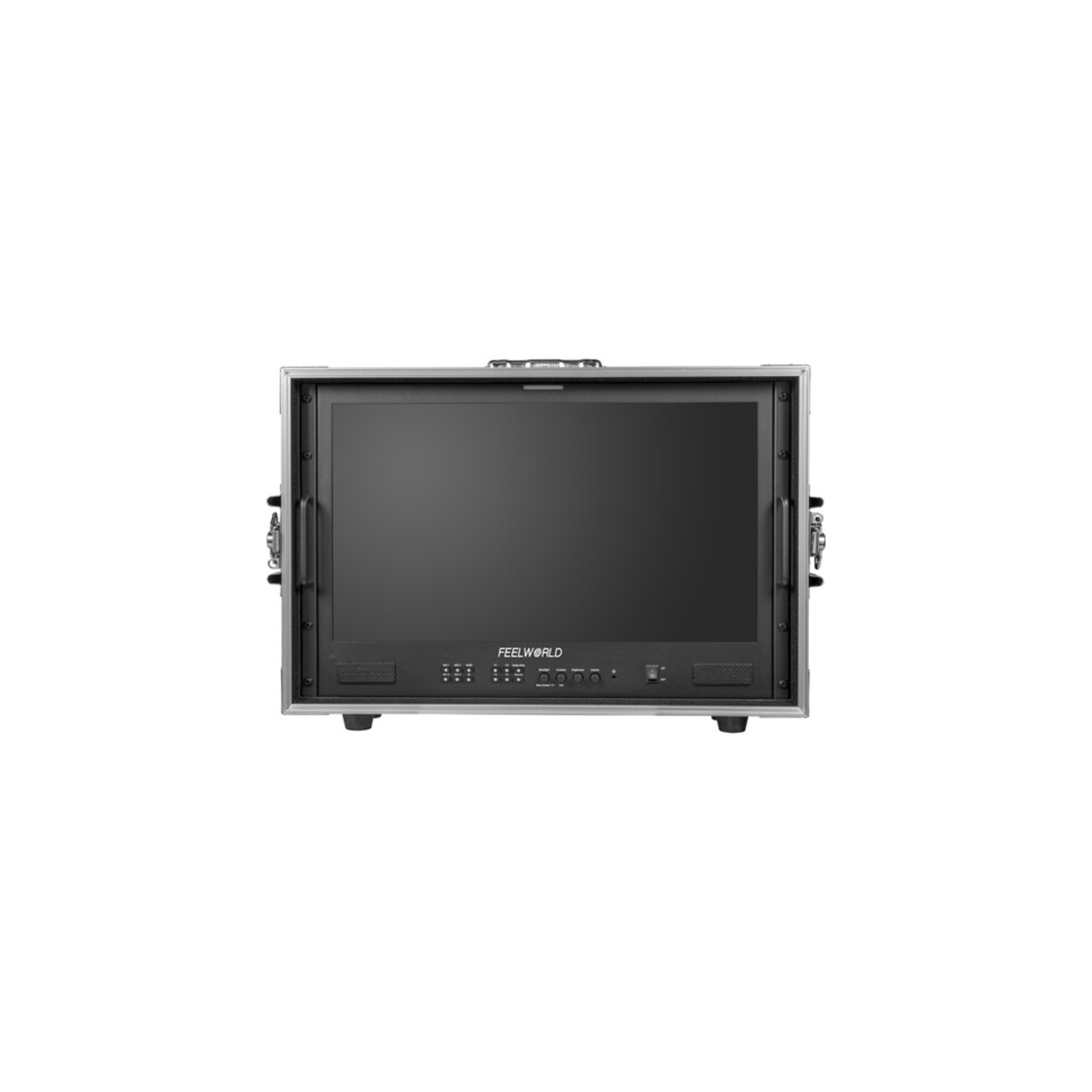

FeelWorld's 21.5 "Live Stream HD Broadcast Director monitor is equipped with a quad-split display with a maximum resolution of 1920 x 1080 and 250 cd / m 2 brightness. The rear panel contains four 3G-SDI inputs that support up to 2K inputs and there are four 3G-SDI outputs and one HDMI output and supports quad-view, dual-view and PiP display layouts so you can view the inputs at the same time.The monitor is installed in an aluminum carrying case with rear cover to access ports and battery, and the front cover installs to protect the monitor for transportation. It can be carried using a handle on the top.

Professional monitoring tools such as focus peaking, marker, monochrome, R / G / B only, pixel-to-pixel mapping and image flipping are integrated to analyze the video and ensure a correct image. A V-shaped mounting plate is integrated into the rear for field power when you are away from a power source, and a separately available Gold mounting plate is also available. It also has GPIO and a red / green light on the top. There is a VESA mounting pattern on the back for alternative mounting options.

Characteristics of the image
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Peak assisted focus
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
-Display rotation (0, 90, 180, 270 °, H / V mirror)
- Check field (red, green, blue, mono)
- Image block
- Zoom in
- Pixel to pixel
-Central indicator
-Screen indicator (80, 85, 90, 93, 96%, 4: 3, 2.39: 1, 2.35: 1, 1.85: 1)
- Line color (red, green, blue, white)

In the Box
FeelWorld 21.5" Live Stream HD Broadcast Director Monitor (Carry-On Case)
Power Adapter
V-Mount Battery Plate
Carry Case
Limited 1-Year Warranty

Screen
Panel type: IPS type LCD
Display Size: 21.5 "/ 54.6cm
Resolution: 1920 x 1080
Aspect Ratio: 16: 9
Viewing angle
Horizontal: 178 ° (89/89)
Vertical: 178 ° (89/89)
Touch screen: No
Maximum brightness: 250 cd / sqm
Contrast Ratio: 1000: 1
Dot density: 0.08265 x 0.08265 mm
HDR Compatibility: Yes
Pixels Per Inch (ppi): 102 ppi
Image Controls: Anamorphic De-Squeeze, Blue Only, Control Range, False Color, Focus Assist, Focus Peaking, Green Only, Rotate Image, Red Only, Screen Indicators, Split Screen in Half, Split Screen to a quarter
I
video:
4 BNC inputs (3G-SDI)
4 BNC outputs (3G-SDI)
1 HDMI type A output
Built-in audio: HDMI / SDI
Audio: 1 x 1/8 "/ 3.5mm headphone output
Integrated speaker: None
Power I / O
1 x barrel input (12 VDC)
1 x 4-pin XLR input
Other I / O
1 x GPI input (RJ45) 1 x GPI output (RJ45)
1 x RS-485 input (RJ45)
1 x USB 2.0 input (USB type A)
Media / memory card slot: None
Wifi: None
Format support
SDI video format (8 bit)
DCI 2K: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
DCI 2Ki: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
1080PsF: 24 / 23.98
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
HDMI
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p
576i
480p
480i
Gamma curve: Rec709
Power
DC input power: 12 VDC
Battery Type: 1 x V Mount (Interchangeable Mount)
Power Consumption: 37W
Assembly
Mounting hole pattern: 100 x 100mm, 75 x 75mm
Environmental
operating temperature: 32 to 122 ° F / 0 to 50 ° C
Storage temperature: -4 to 140 ° F / -20 to 60 ° C
General
Dimensions: 20.14 x 14 x 0.92 "/ 51.16 x 35.56 x 2.33 cm, excluding bracket
The weight: 9.41lbs / 4.27kg, excluding bracket
