XSW-D Vocal Set

XSW-D Vocal Set


igital Wireless Plug-On Microphone System with Handheld Mic (2.4 GHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 404,43

€ 376,21 VAT excl.

€ 414,80
Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
The Sennheiser XSW-D VOCAL SET is a stage-ready, wireless microphone system that provides singers, vocalists, and presenters with an easy-to-use, cost-effective, and reliable solution for live concerts and events. It puts world-renowned Sennheiser wireless sound quality into a miniaturized, plug-and-go, 1-button digital system that anyone can use. Plug it in, power it up, and you're immediately up and running, simplifying your setup so you can concentrate on delivering your performance with confidence.

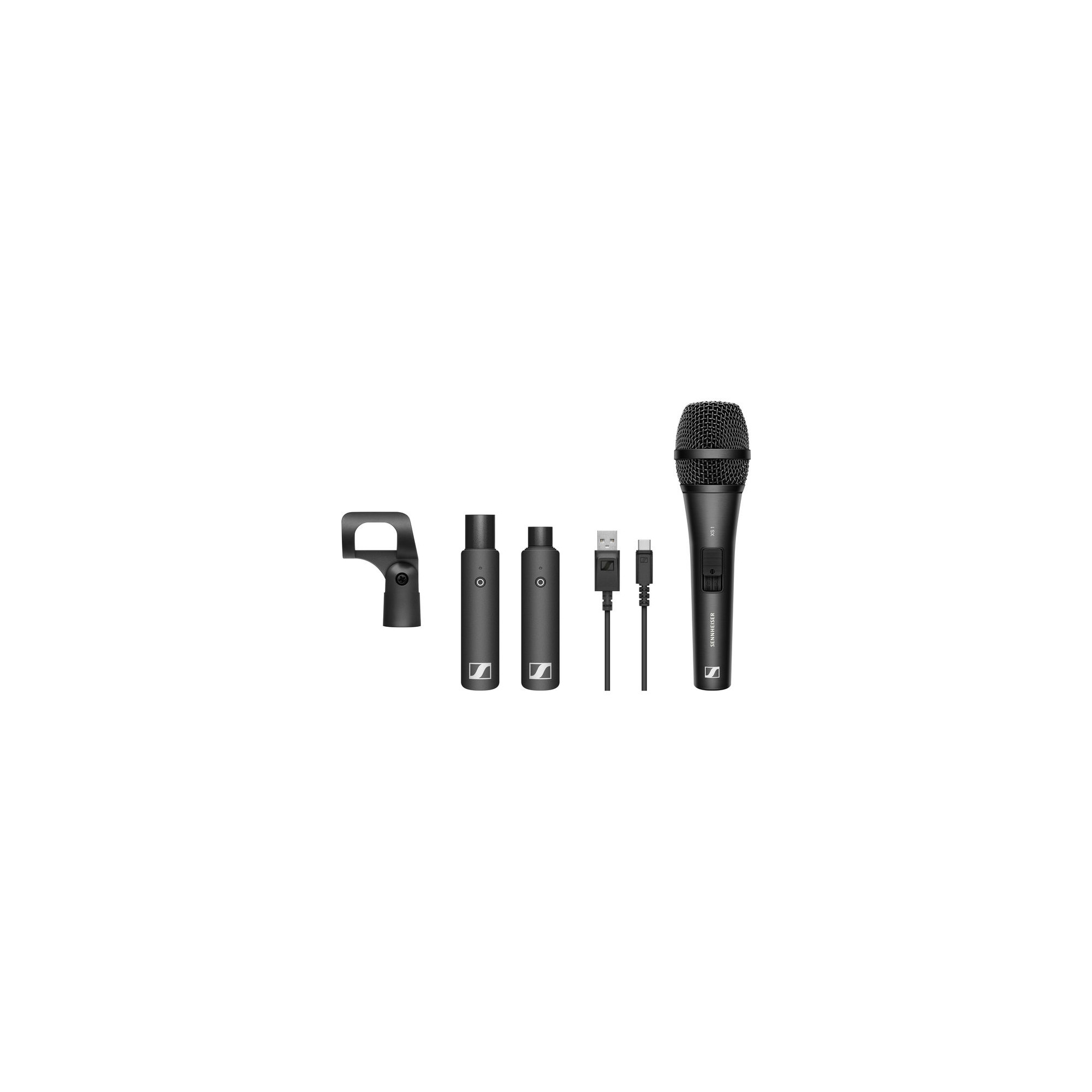

The set comes with the XS 1 handheld cardioid dynamic microphone along with a plug-on transmitter and an XLR-equipped plug-on receiver, both featuring lightweight, miniature housings. The system connects to a wide variety of professional audio gear including mixing boards and portable PA systems, allowing you to capture crisp-sounding vocals on stage, or in rehearsals, houses of worship, and event spaces.

Unboxing the System
The XS 1 handheld microphone plugs into the XLR input on the exceptionally lightweight and low-profile plug-on transmitter. The transmitter is designed to only transmit signal from a mic (not from a mixer or recorder) and it does not provide phantom power.
Plug the compact receiver directly into the XLR input of your audio mixer or PA, and you're ready to turn the system on. The receiver cannot be phantom powered by a mixer. It needs to be charged ahead of time or used while being charged via USB.
Plug In, Turn On: It Works
The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.
Step Up to Sennheiser Sound Quality
Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
The XS 1 dynamic vocal microphone delivers an upfront vocal presence in the mix, and is ideal for singers, presenters, or entertainers who appreciate simplicity and easy handling. Thanks to its great feedback rejection, all-metal housing, and silent mute switch for flexibility and control, this versatile microphone is a reliable companion that delivers high-quality vocal sound on any stage.
Clean Audio without Drop Outs
Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.
Expand your System as Your Needs Grow
The functionality of this XSW-D VOCAL SET can easily be expanded by adding XSW-D Series transmitters, as your needs evolve.
With this set, adding the XSW-D 3.5mm bodypack transmitter allows you to connect either a Sennheiser-compatible lavalier or headset mic of your choice for hands-free presentations.
License-Free Operation Worldwide
Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
Simply let the system pick a channel for you, and start performing—whether you're working at home or anywhere in the world.
Other Features
Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of performance time
Conveniently recharge batteries via USB while in operation or during breaks throughout the day
Up to five systems can be operated simultaneously in the same environment
Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
Mute from either transmitter or receiver
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

Frequency Range 2.400 to 2.483 GHz
Latency <4 ms with aptX Live Codec
Transmission Range 250'' / 76.2 m (Line of Sight)
Simultaneous Operation of Units Up to 5 Systems Simultaneously
Frequency Response 80 Hz to 18 kHz
Signal-to-Noise Ratio =106 dB
THD <0.1 %
Modulation GFSK with TDMA
Operating Temperature -10 to 55° C / 14 to 131° F
Relative Humidity 95% (Non-Condensing)
Type Plug-On Transmitter
Input Connector XLR-Female
Phantom Power No
RF Output Power 10 mW
Microphone Max Input Level Mic-Level Input Only: 1.2 dBu (Typ. 0 dBu)
Battery Type: Built-In, USB-Rechargeable, Lithium-Ion
Battery Life: 5 Hours
Charging Time: 3 Hours (Typical)
Charging Cycles: Up to 1000 Cycles
Nominal Voltage: 3.7 V
Cell Capacity: 850 mAh
Input Voltage: 5.0 V (Typical)
Charging Temperature: 32 to 140° F / 0 to 60° C
Dimensions 4.0 x 0.9 x 1.1" / 102 x 24 x 28 mm
Weight Not Specified by Manufacturer
Type Plug-On
Output Connector XLR-Male
Audio Output Level Consumer Line-Level Output Only: -12 dBu (Maximum)
Battery Type: Built-In, USB-Rechargeable, Lithium-Ion
Battery Life: 5 Hours
Charging Time: 3 Hours (Typical)
Charging Cycles: Up to 1000 Cycles
Nominal Voltage: 3.7 V
Cell Capacity: 850 mAh
Input Voltage: 5.0 V (Typical)
Charging Temperature: 32 to 140° F / 0 to 60° C
Dimensions 4.3 x 0.9 x 1.1" / 109 x 24 x 28 mm
Weight Not Specified by Manufacturer
Type Handheld
Polar Pattern Cardioid
Transducer Principle Dynamic
Frequency Response 55 Hz to 16 kHz
Connector XLR-Male
Impedance Nominal Impedance: 300 Ohms (At 1 kHz)
Terminating Impedance: 1 kOhm (Minimum)
Sensitivity 1.8 mV/Pa (Free Field, No Load at 1 kHz)
Temperature Range 32 to 104° F / 0 to 40° C
Dimensions (diameter x L) 1.9 x 7.1" / 48 x 180 mm
Weight 0.73 lb / 330 g (Without Cable)
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 9.5 x 9.0 x 2.7"
