EK 6042

Sennheiser EK 6042 Dual-Channel Slot-Mount Wireless Receiver (470 to 653 MHz)

- For Analog & Digital Sennheiser Wireless
- For Camera Slots and Various Adapters
- 2-Channel, True-Diversity Receiver
- 184 MHz Ultrawide Tuning Range
- Analog and Digital Audio
- Auto Configuration & Scene Setup
- Built-In Web Server

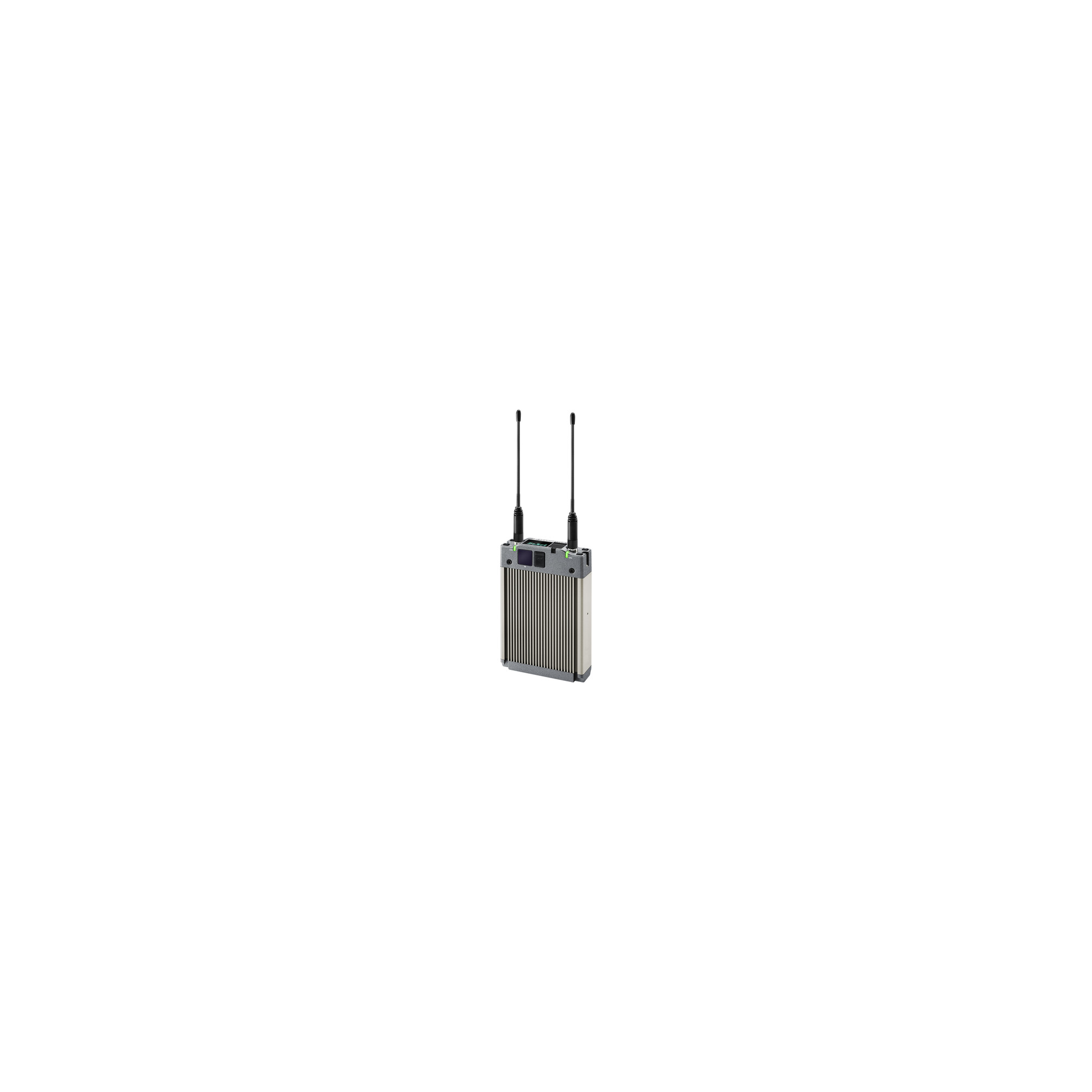

The Sennheiser EK 6042 is a two-channel wireless receiver housed in a compact, slot-mount chassis.
It is compatible with all Sennheiser analog and digital transmitters operating within the 470 to 653 MHz range.
When paired with the appropriate adapter (available separately), the EK 6042 fits into all standard receiver slots on professional video cameras equipped with either UniSlot/SuperSlot or Sony interfaces.
Adapters are also available to configure the unit for use in an audio bag, powered by either an external power supply or Accupack batteries for standalone operation.
Setup is fully automated with the One Touch Easy Setup function.
Menu-assisted adjustments are quickly and easily made via the intuitive display panel.
The built-in web server allows you to import and export entire configurations, saving you time in the field.
With true-diversity reception, an ultrawide 184 MHz tuning range, and both analog and AES3 digital audio, the EK 6042 is a flexible receiver that delivers reliable, studio-quality audio for a wide variety of professional broadcast applications.

Digital and Analog Transmitter Compatibility
The EK 6042 is compatible with almost all Sennheiser transmitters
- Digital transmitters: 9000 and 6000 series set to operate in LR mode
- Analog transmitters: 5000, 3000, 2000, EW G1/G2/G3/G4 series
- Not compatible with AVX, XSW-D, and EW D1 systems

Putting the EK 6042 into Operation with Essential Adapters
- The GA 6042-25 kit allows you to mount the EK 6042 into the receiver slot of a video camera equipped with a UniSlot/SuperSlot interface—Panasonic, Ikegami, ARRI. The analog and digital audio signals of both receiving channels are transmitted to the camera via the receiver's multi-pin interface.
- The GA 6042-15 kit allows you to mount the receiver into Sony video cameras.
