ATW-3212C510 EE1

Name: ATW-3212C510 EE1
Brand: Audiotechnica
SKU: ATW-3212C510 EE1
Price: 668.47 EUR
Availability: OutOfStock

Audiotechnica

Wireless Handheld Microphone System with ATW-C510 Capsule (EE1: 530 to 590 MHz)

go to the technical sheet

-2.5%

Save 2.5%

€ 668,47

€ 621,83 VAT excl.

€ 685,61

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

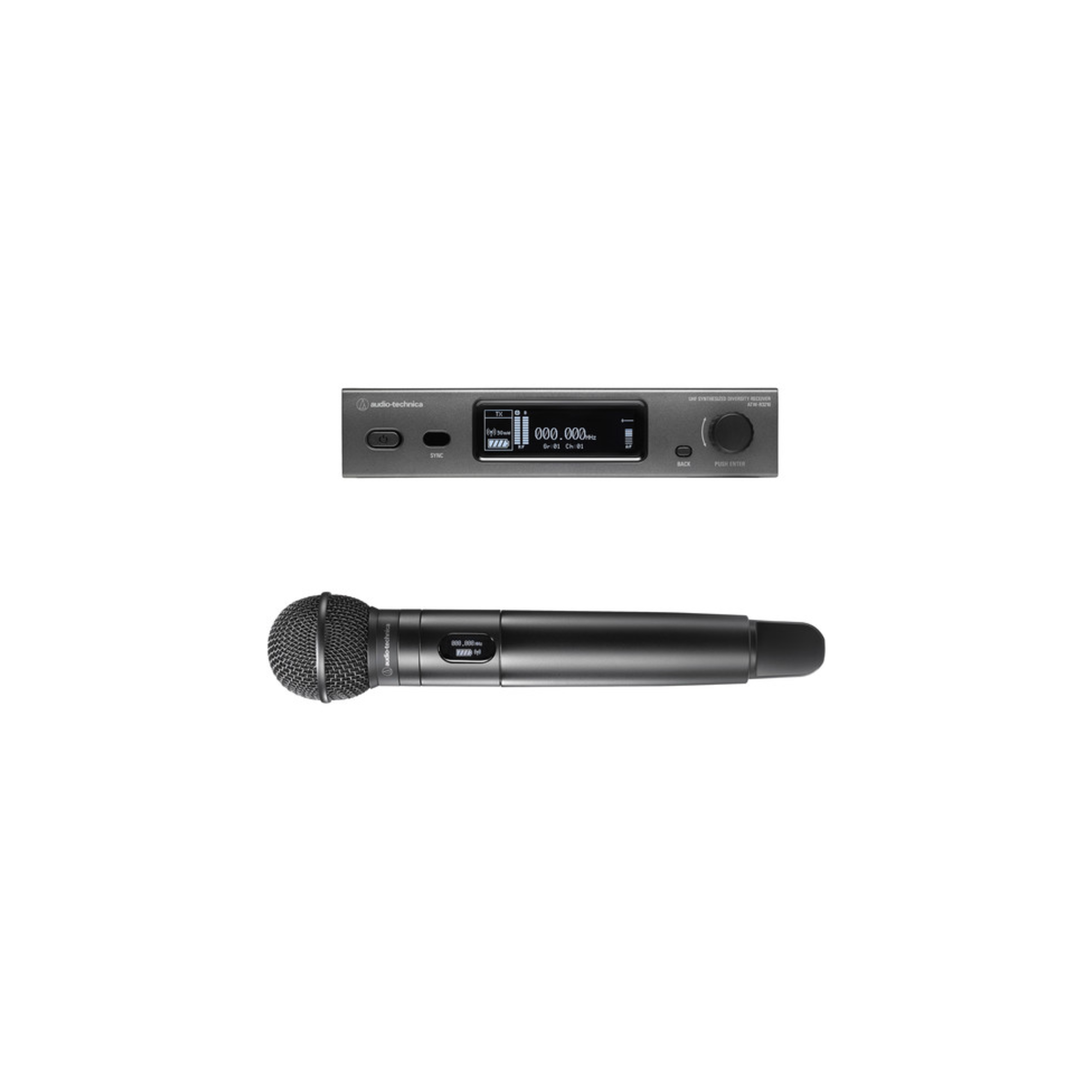

Audio-Technica ATW-3212/C510 3000 Series Wireless Handheld Microphone System with ATW-C510 Capsule (EE1: 530 to 590 MHz)

The Audio-Technica ATW-3212/C510 is a 3000 Series (4th generation) rackmount wireless handheld microphone system with professional-level features for enhanced reliability and control. It features an intuitive interface with a dual-mode OLED screen for easy operation.
With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, or on musical stages.

The ATW-3212 includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission.
The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference.

This system includes a handheld transmitter equipped with an interchangeable ATW-C510 dynamic cardioid microphone capsule optimized for speech and vocals.
The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments.
The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.

System
Wireless Technology: Analog UHF
Number of RF Channel Frequencies: 2400
Included Transmitters: 1 x Handheld
Diversity: True Diversity
RF Frequency Band:
° EE1: 530 to 590 MHz
RF Bandwidth: 60 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 328.1'' / 100 m
Max Transmitters per Band: 40
Dynamic Range: 115 dB
Encryption: None
Deviation: ±36 kHz
Modulation: FM

Receiver
Receiver Type: Tabletop
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/4 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage: 12 VDC, 160 mA (Combined)
Number of Audio Channels: 1
Audio I/O:
° 1 x XLR 3-Pin Male Balanced Output
° 1 x 1/4" Female Unbalanced Output
Gain Range: -60 to 0 dB (2 dB Steps)
Audio Output Level
° XLR Output: 14 dBV
Frequency Response: 25 Hz to 16.7 kHz (Dependent on Mic)
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 12 VDC at 1 A, Center-Positive (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators:
° 1 x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Operating Temperature: 23 to 113°F / -5 to 45°C
Dimensions: 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm
Weight: 38.8 oz / 1100 g

Transmitter
Transmitter Type: Handheld
RF Output Power: 10 / 30 mW (Switchable, at 50 Ohms)
Audio I/O: None
Muting: Programmable Mute Switch
Gain Range: -10 to +20 dB (2 dB Steps)
Signal Processing:
° High-Pass Filter: 150 Hz, 6 dB/Octave Slope
Sync Method: IR
Antenna: 1 x Internal, Fixed (Handheld)
Power Requirements: Battery
Battery Type: 2 x AA (Not Included)
Approx. Battery Life
° Low:
9.5 Hours (NiMH)
9 Hours (Alkaline)
° High:
9 Hours (NiMH)
8 Hours (Alkaline)
Display & Indicators:
° 1 x OLED (Battery Status, Channel, High-Pass Filter, Mute, Power, RF Output Power, Sync)
Housing: Metal
Operating Temperature: 23 to 113°F / -5 to 45°C
Dimensions: 2.1 x 10.4" / 54 x 265 mm
Weight: 11.6 oz / 330 g (without Batteries)

Microphone
Microphone Type: Handheld Capsule
Sound Field: Mono
Capsule: Dynamic
Polar Pattern: Cardioid
Frequency Range: 90 Hz to 16 kHz
Sensitivity: -55 dB

Packaging Info
Package Weight: 5.765 lb/2.61 kg
Box Dimensions: 15.2 x 12.7 x 4.05"/39 x 32 x 10 cm

Audio-Technica ATW-3212/C510 3000 Series Wireless Handheld Microphone System with ATW-C510 Capsule (EE1: 530 to 590 MHz)
Audio-Technica ATW-R3210 3000 Series Wireless Receiver (EE1: 530 to 590 MHz)
Audio-Technica ATW-3202 3000 Series Handheld Transmitter with No Mic Capsule (EE1: 530 to 590 MHz)
Audio-Technica ATW-C510 Interchangeable Cardioid Dynamic Microphone Capsule for ATW-T3202 Handheld Transmitter
Audio-Technica AT8456a Quiet-Flex Microphone Stand Clamp for Wireless Transmitters
Threaded Screw Adapter
2x Flexible Antennas
AC Adapter
Rackmount Hardware
