Magewell

6936572401423
Encoder for streaming 4K30p H264 H265 SDI HDMI combine both into 1 output 53130
go to the technical sheet
₦ 1,430,555.00

₦ 1,330,749.00 VAT excl.

Available in 14 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

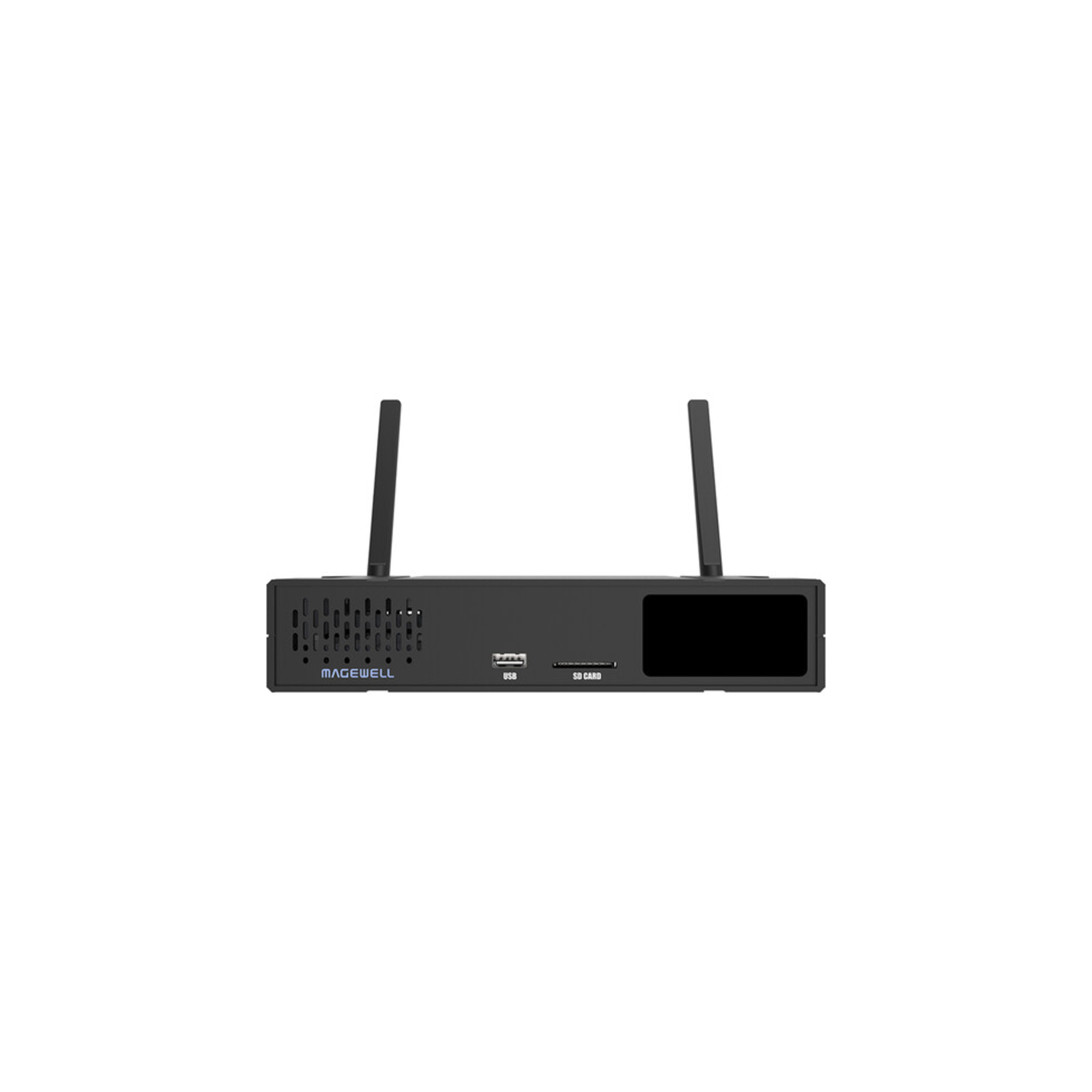

Magewell Ultra Encode AIO Encoder for streaming 4K30p H264 H265 SDI HDMI combine both into 1 output - 53130
The Ultra Encode AIO live media encoder from Magewell upgrades the capabilities of the original Ultra Encode models for advanced use cases.
Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bitrates, and both SD card and external USB recording.
This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.

° Mixes HDMI & SDI Inputs
Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output

° Multiple Streaming Outputs
Outputs up to six simultaneous sessions over multiple streaming protocols at 32Mb/s per session

° NDI Protocols
Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3

° Scheduling
Supports streaming and recording scheduling

° Video Encoding
Supports H.264 and efficient H.265 (HEVC) video encoding

° Audio Encoding
8-channel AAC audio encoding with 16-256 Kb/s

° Streaming Platforms
Native Facebook, Twitch, and YouTube support

IP Encoding/Decoding
° IP Video
H.264/H.265:
2560 x 1440 to 4096 x 2160 at 30p Encoding
H.264/H.265:
1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
H.264/H.265:
720 x 576 at 25p Encoding
H.264/H.265:
720 x 480 at 30p Encoding
IP Audio: AAC: 16 to 256 Kb/s Encoding
Transport Protocols:
HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT
Simultaneous Streams: 6 Streams
Compatible Services: Facebook Live, Twitch, YouTube Live

Wireless
Wi-Fi: Wi-Fi 5 (802.11ac), Dual-Band (2.4 & 5 GHz)
Bluetooth: Yes

Interfaces
° Video I/O:
1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input
1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output
1 x HDMI Input
1 x HDMI Loop Output
° Audio I/O:
1 x 1/8" / 3.5 mm TRS Input
1 x 1/8" / 3.5 mm TRS Output
° Other I/O:
2 x USB-A
1 x USB-C
HDCP Support: Yes
Embedded Audio: HDMI/SDI

Internal Recording
Recording Media: 1 x SD (Unspecified Type)
° Recording Modes:
4096 x 2160p at 30/60 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps
2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps
1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps
1280 x 720p at 25/29.97/30/50/59.94/60 fps
720 x 576p at 25 fps
720 x 576i at 50 fps
720 x 480p at 29.97 fps
720 x 480i at 59.94 fps

Power
Power Connector: 1 x Barrel (9 to 18 VDC) Input

Environmental
Operating Temperature: 32 to 72°F / 0 to 40°C
Operating Humidity: 5 to 90%
Storage Temperature: -4 to 158°F / -20 to 70°C

General
Display: LCD
Rackmount Size: 1 RU (with Included Hardware)
Dimensions: 8.5 x 5 x 1.75" / 214.9 x 128.2 x 44.55 mm

Packaging Info
Package Weight: 3.515 lb/1.59 kg
Box Dimensions: 11.1 x 6.8 x 4.1"/28 x 17 x 11 cm

1x Magewell Ultra Encode AIO
1x Locking Power Adapter with Plug Adapters
1x HDMI Cable
2x Wi-Fi Antenna
7x M2.5 Screw
1x Retainer Plate
1x RU Short Rack Ear
2x 1 RU Long Rack Ear
