Fujinon

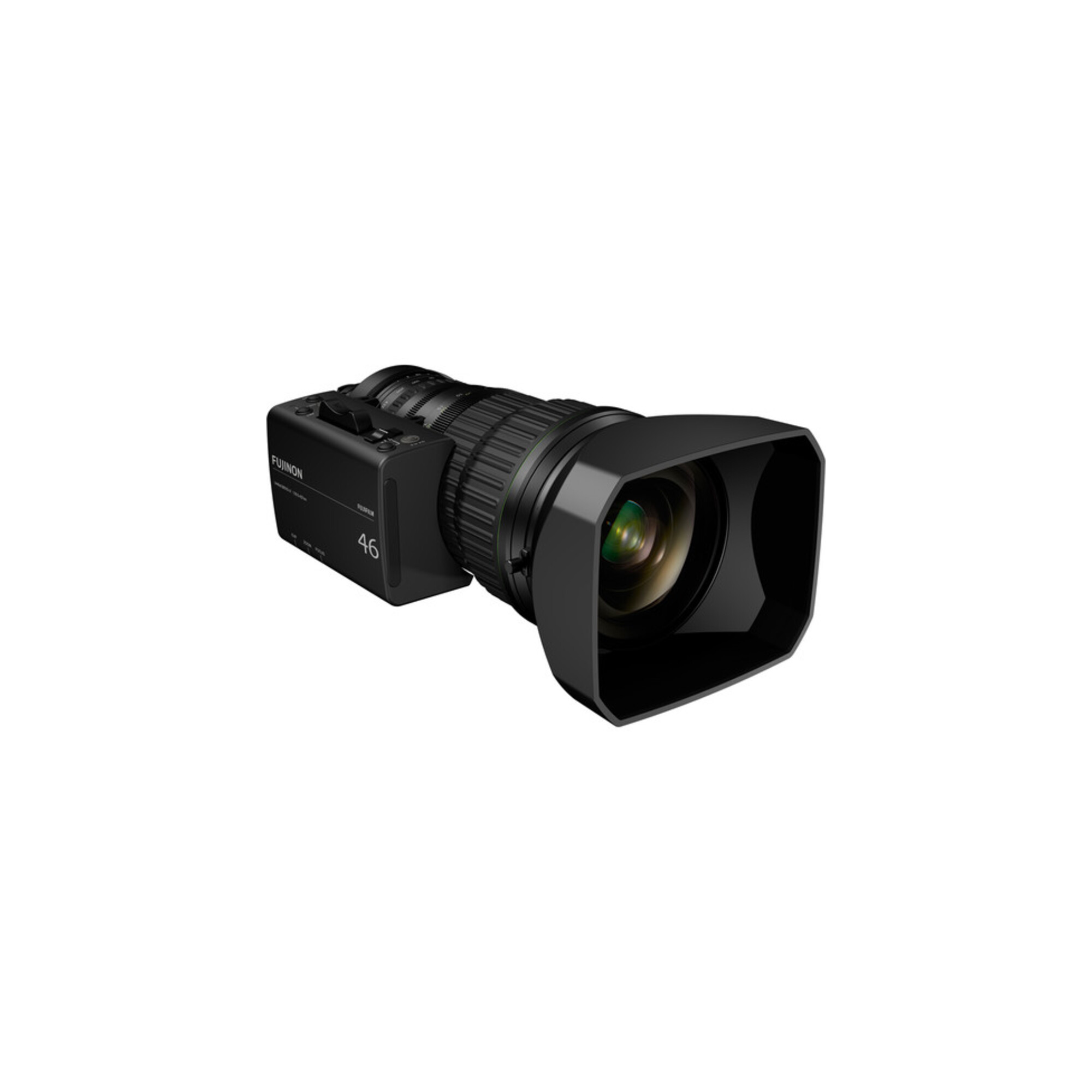

Fujinon 46 X 13,5 Zoom 2/3" 4K Broadcast Lens (with trunck)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 63.960,36

€ 59.498,01 VAT excl.

€ 65.600,37
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
-Producing high quality 4K video with cutting-edge optical design technology to meet expanding needs of 4K broadcast production
-Portable type with the world's highest*1 46x zoom and world's longest focal length*2 of 621mm,
and box type covering the focal lengths from 8.7mm to 610mm
-Enhancing greater image quality with an extensive lineup of 11 lenses to meet the diversifying needs of broadcast production

Enhanced higher image quality with a wide range of 11 lenses to meet the diverse needs of television production.
As the amount of 4K video content is expanding around the world, the introduction of 4K compatible broadcast equipment is also accelerating in sports broadcasting, and the amount of 4K video content is expanding around the world. In Japan, too, the demands for 4K video production are increasing as the "New 4K / 8K Satellite Broadcast" starts in December 2018.
In anticipation of the new era of broadcasting, Fujifilm launched the world's first 4K-compatible broadcast lens in 2015. Since then, the company has rapidly expanded the range to lead the industry, meeting the needs of 4K video production, while also meeting the demand for HD video with even higher image quality, thus facilitating the production of premium quality video. .

The launch of the UA46x13.5 laptop and UA70x8.7 box-type will further expand the company's range of 4K broadcast lenses.

Supported Camera: Bayonet mount cameras with 2/3 inch sensor
Zoom Ratio: 46 x
Focal length: (1x) 13.5mm-621mm
(2x) 27-1.242mm
Extender: 2x
Maximum relative aperture: 1: 2.8 (13.5mm-316mm)
1: 5.5 (621 mm)
Minimum Object Distance (MOD)
from the front lens: 2.8 m

MOD Object Size: (1x) 13.5mm 1886mm x 1.060mm 621mm 42mm x 24mm
16: 9 Aspect Ratio
[Horizontal x Vertical]: (2x) 27mm 936mm x 526mm 1,242mm 21mm x 12mm

MOD angular field of view: (1x): 13.5mm 39.1 ° x 22.6 ° 621mm 0.9 ° x 0.5 °
16: 9 Aspect Ratio
[Horizontal x Vertical]: (2x): 27mm 20.1 ° x 11.4 ° 1,242mm 0.4 ° x 0.2 °

Filter thread: M127 x 0.75

Mass approx. 5.8 without lens hood
