RS-701

Name: RS-701
Brand: Clearcom
SKU: RS-701
Price: 1244634 NGN
Availability: OutOfStock

Clearcom

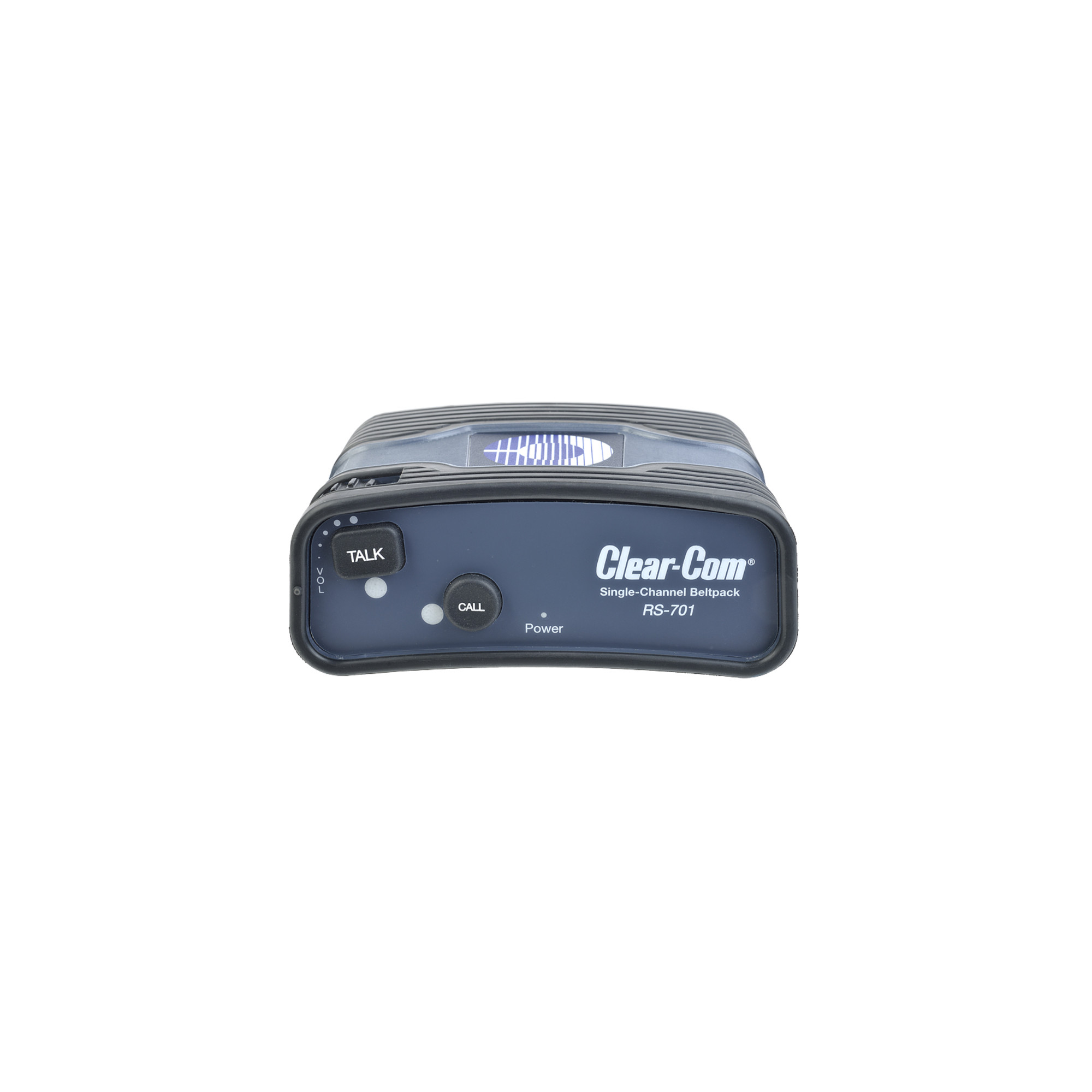

Single Channel Wired Intercom Beltpack with Loop-Thru

go to the technical sheet

₦ 1,244,634.00

₦ 1,157,799.00 VAT excl.

Available in 124 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

ClearCom - Intercom system Single Channel Wired Intercom Beltpack with Loop-Thru

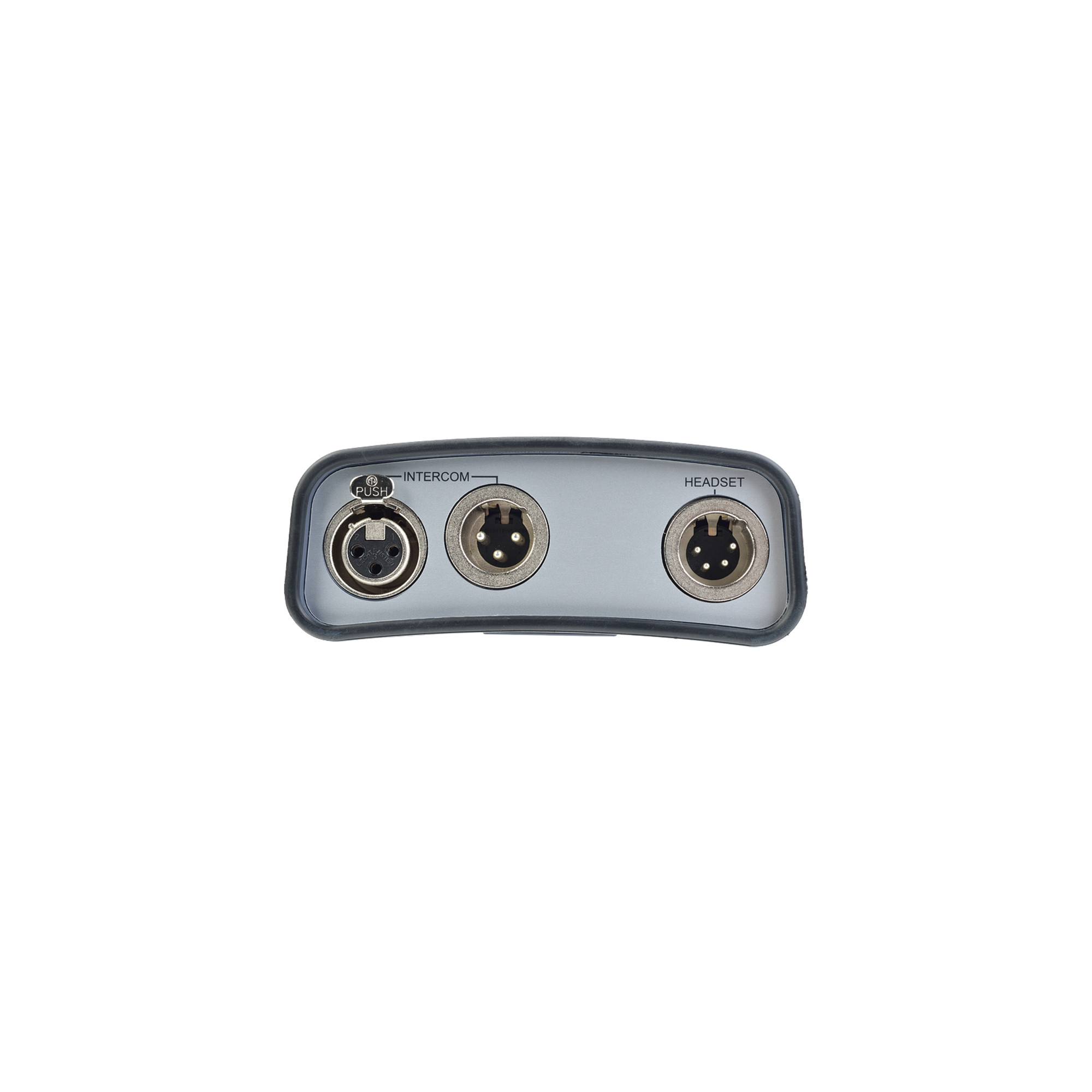

S-601 is a single channel wired beltpack with a 4-pin male headset connector and 3-pin female/male loop thoguh intercom line connectors. The beltpack has a 2.5mm AUX headset connector and an RS-232 data connector for programming.

The beltpack can be programmed using the V-pack software, which does not require beltpack to be opened or any dip switches changed,

Download

Datasheet

Download (2.88MB)

Compatible with Clear-Com''s complete series of wired party line intercom systems.

General
Amplifier Design: I.C. amplifiers, including solid-state digital switching and signaling circuits. Current-limited and short-circuit protected.
Signal to Noise: >75 dB
Bridging Impedance: >15k
Line Level: -14 dB, +5 dB max.
Sidetone Adjust: >35 dB
EMI and RFI rejection: >60 dB

Microphone Pre-Amplifier
Headset Mic Impedance: 200 O
Gain, mic to line: 41 dB (dynamic)
Limiter Range: 26 dB
Frequency Response: 200 Hz - 12 kHz contoured for intelligibility

Headphone Amplifier
Load Impedance: 50 - 2,000 O
Output Level: +17 dBv before clipping
Distortion: <0.1% THD @ 1 kHz
Gain, line to output: +34 dB
Frequency Response: 100 Hz - 18 kHz, ±2dB

Connectors
Intercom Line: (2) 3-pin XLR-M-F
Headset: 4-pin XLR-M

Power Requirements
26mA quiescent
30mA average talk
50mA talk with signaling
DC Voltage Range: 12-32 volts

Environmental
0°C - 70°C (32°F - 158°F)
0 - 90% relative humidity

Dimensions
4.58 in. H x 3.73 in. W x 1.34 in. D
(116 x 95 x 34 mm)

Weight
7.3 oz. (0.20 kg)
