TriCaster Mini X Bundle

Name: TriCaster Mini X Bundle
Brand: Africa Broadcast Store Ltd
SKU: TriCaster Mini X Bundle
Price: 21224315.18 NGN
Availability: OutOfStock

TriCaster Mini X HDMI Bundle (with Mini 4K CS & Travel case)

go to the technical sheet

₦ 21,224,315.18

₦ 19,743,549.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 2,122,431.52

Available in 15 days

Not sure if this is the right product for you? Talk to a consultant

TriCaster Mini X HDMI Bundle (with Mini 4K CS & Travel case)

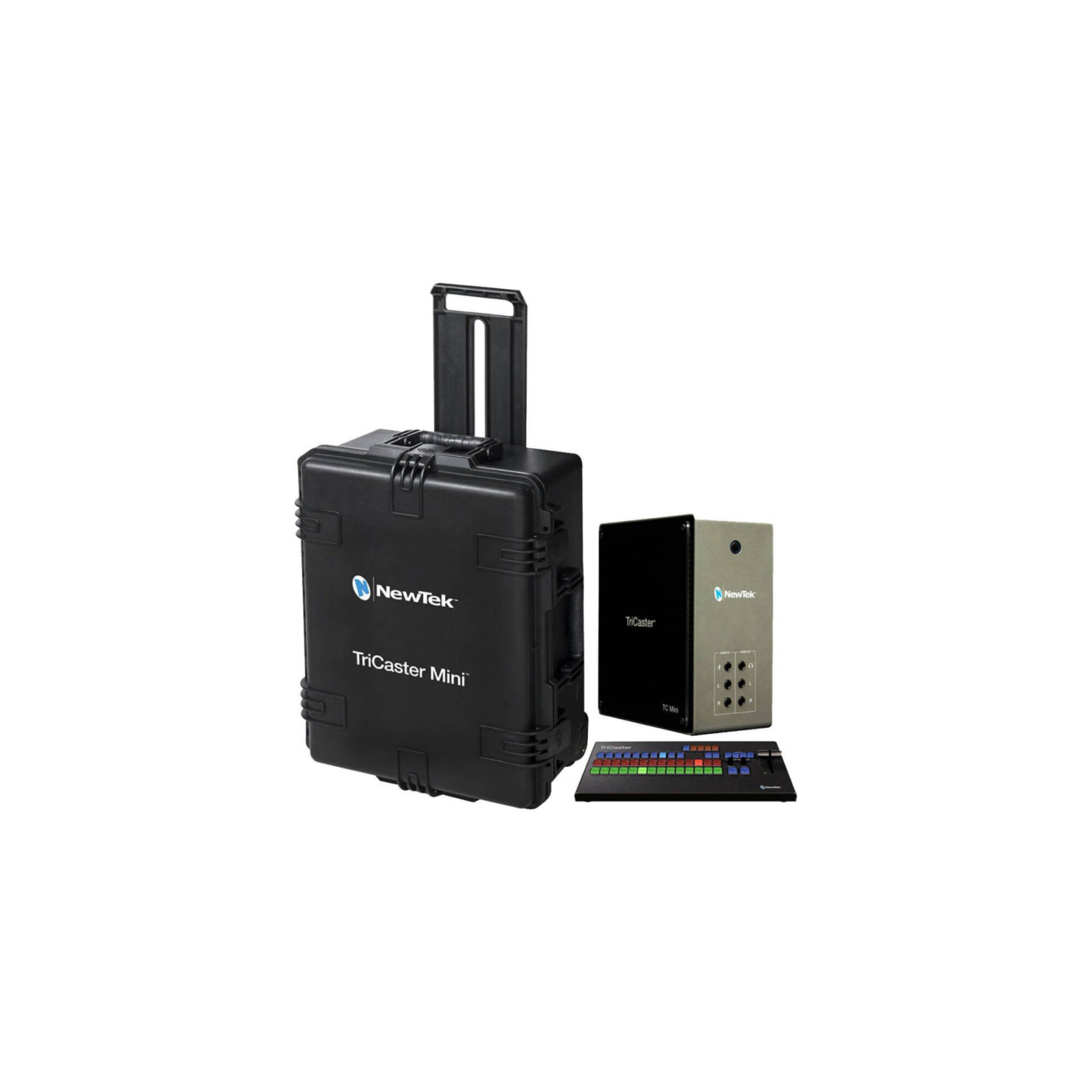

Outfitted with everything you need to take your production on the go, the NewTek TriCaster Mini X HDMI Bundle includes one TriCaster Mini X HDMI/NDI hybrid input switcher, a control surface to control it with, and a custom hard case to store it all.
Simultaneously broadcast, stream, and record with the Mini X's integrated software with its four HDMI and eight NDI inputs.
Other expansive connections ensures seamless integration with your live event production.

NewTek TriCaster Mini X HDMI
The NewTek TriCaster Mini X HDMI is the ultimate live-production tool with multiple HDMI, NDI, mini DisplayPort, and USB connections that support up to 4K video for switching and media playback.
The Mini X can add graphics, record, livestream, and perform other network-driven functions simultaneously, along with four HDMI inputs that accept various AV equipment.
The Mini X offers four mini DisplayPort outputs, which come with four HDMI adapters for expanded compatibility.
Various internal software controls allow for chromakeying, switching, streaming, and more advanced audio and video control, depending on what suits your production.

HDMI devices connect directly into the Mini X without requiring configuration for seamless integration into your preexisting production layout.
Multiple audio ports support both line and microphone inputs as well as line and headphone outputs for improved sound quality and monitoring.
Five USB 3.2 Type-A ports can connect the included keyboard and mouse to the system among other USB-friendly devices.
A processing latency of just 1.5 frames ensures all of your equipment communicates efficiently.

NewTek Control Surface for TriCaster Mini with UHD 4K Support
The Control Surface from Newtek brings manual tactile controls to your live production switching with the TriCaster Mini with UHD 4K support while maintaining a small, portable footprint. It is compatible with TriCaster Mini UHD 4K switchers, as well as professional-line TriCaster 8000, 860, 460, and 410 systems.

With an intuitive layout, 14 backlit buttons, a T-bar, familiar live production controls, and a compact frame, the Control Surface is suitable for mobile production even in tight spaces.

Mixers Video

Cerevo

FLEXTALLY BP

₦ 1,190,991.43 VAT included

Available 3 unit in 4 Days

Digital Video Input
4 HDMI video connections support video input in any combination of standard
formats, resolutions, and frame rates1
- 2160p: 29.97, 25
- 1080p: 59.94, 50, 29.97, 25
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- SD: 59.94, 50, 25
Network Video Input: 8 IP video inputs via NDI®, resolution-independent

PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and system presets.
* Requires a USB to serial adapter - sold separately
Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX
Software integration, including counting and TalkBack communication

Network Video Output
IP video output via NDI, optionally configurable for:
- 4 independent video mix outputs
- 1 UHD video mix output
Stream Output 2 streaming video outputs, independently configurable, with simultaneous streaming
Storage
Monitor Outputs 4 mini display ports with output adapters
3 of the outputs support multiviewers using standard display resolutions

Mix/Effect Bus (M/E)
4 M/E buses supporting video reentry
1 Mix/Effect channel per bus with support for up to 2 sources
2 KEY layers per bus
DSK Channels 2 DSK channels
Multimedia 5 media players (2 DDR, 2 GFX, 1 x audio)
15 x Media Buffers (10 x Live Link or Animation Buffers, 5 x Graphics Buffers)

Keyers
LiveMatte™ chroma and luma keying technology integrated on all sources
channels and M/E buses
- 8 input keyers
- 2 media player keys
- 4 M/E buttons
- 15 keyer buffers
Virtual Sets Integrated LiveSet™ technology with over 30 live virtual sets and box effects included

DataLink
Built-in DataLink™ technology enables automated real-time data entry
from internal and external sources, including web pages, spreadsheets, scoreboards,
databases, RSS feeds, control files, XML, CSV, ASCII, and more

Macros
Record, archive, edit, and automate user-configured commands and operations
- Link to control panel buttons Control, keyboard shortcuts, hotspots, MIDI, and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally, and specific toggle actions
- Supports control via web-based interface

Recording
4 channels of recording from NDI® inputs or Mix outputs
- Records and preserves alpha channel data
- 4 QuickTime® archive video recorders (native NDI codec for recording)
2 QuickTime Players not required for playback in common NLE applications

Storage capacity varies by format, resolution, and file specifications
Supports recording to external storage via USB 3.0
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing: Built-in multi-channel audio mixer with stereo audio and DSP support

Audio Input Local
2 built-in digital audio inputs via HDMI conversion
- 1 x 1/4" (6.35 mm) balanced microphone jack
- 2 x 1/4" (6.35 mm) balanced wire

Local Audio Output
2 built-in digital audio outputs via HDMI conversion
- 2 x 1/4" (6.35 mm) balanced wire
- 1 x 1/4" (6.35 mm) stereo headphone jack

Network Audio
Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support for Dante™ network protocol by Audinate® 3 requires the Dante virtual sound card.
Audinate License (sold separately)

Supported Media Formats
Import, store, and play media files, with optional transcoding, including:
· Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
· Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
· Audio: AIFF, MP3, WAV, and more
· Video Processing: YCbCr +A 4:4:4:4 Floating Point Audio: Floating Point, 96 kHz
· Processing Latency: ~1.0-1.5 frames
· Practical Throughput Latency: 4 frames
· Tally: Support for network tallying via NDI®
· MIDI: Support for MIDI protocol Standard that allows control of third-party devices
2 x 1 Gigabit NIC

Physical Characteristics
NewTek Mini X system chassis, including adjustable handle and cable tie
Dimensions: 10.74 x 23.1 x 20.1
Weight: 8.4 lbs (3.8 kg)

1x NewTek TriCaster Mini X HDMI
1x Keyboard
1x Mouse
4x Mini DisplayPort to HDMI Adapter
1x Power Cable
1x NewTek Control Surface for TriCaster Mini with UHD 4K Support
1x Custom Travel Case
