LAOWA

6940486703085
Venus Optics 27mm T2.8 Nanomorph Blue L Mount Cine
go to the technical sheet
₦ 2.153.067,48

₦ 2.002.853,47 VAT excl.

Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
The anamorphic system allows videographers to obtain widescreen images from a standard recording medium, giving movies a more cinematic look: you get an image ratio of 2.4: 1 on a 16: 9 sensor.

The alternative way of achieving this ratio is to crop the image by losing pixels.
Anamorphic optics give the image characteristics such as side flare and oval bokeh.
They are always used on large budget films.

The Laowa Nanomorph series is designed for Super35 and M43 sensors. Anamorphic optics are called "Nano" as they are extremely small and light, while "Morph" stands for anamorphic.
The range includes 3 focal lengths: 27mm T2.8, 35mm T2.4 and 50mm T2.4.

The anamorphic design has a 1.5X ratio over the entire focusing range.
Three versions of each lens are available, featuring different flare colors - amber, blue and silver - to suit different film genres or the preferences of cinematographers and cameramen. The closest focusing distance allows for an accentuated oval bokeh and creates a greater sense of space coverage.

Available in different bindings: Canon EF / Arri PL, Canon R, Sony E, M43, DJI DL, Nikon Z, L mount and Fuji X.
The EF / PL version is supplied with the PL bayonet mounted and with the EF bayonet included in the package.
The mirrorless versions (Sony E, Fuji X, Canon RF, Nikon Z, L Mount, MFT, DJI DL), provide the possibility of easily replacing the bayonet, purchasing it separately.

Features:

1. Patented anamorphic optical design

2. Unprecedented compactness

3. 1.5x constant anamorphic compression ratio

4. Pleasant oval bokeh

5. Amber, blue, silver flare options

6. Short minimum focusing distance

7. Available for Sony E, Fuji X, Canon RF, Nikon Z, L Mount, MFT, DJI DL

8. Professional film body

Patented anamorphic design

Anamorphic optics consist of spherical and cylindrical elements
In the optical design of some cheap anamorphic optics cylinders are added to the front and spherical elements are positioned at the rear for focusing. This causes the anamorphic compression ratio to change when the focus point is changed, causing unwanted effects, such as the actors' faces widening when they are shot up close.
For professional anamorphic optics a more consistent optical design is required which leads to a very high cost. Furthermore, the size and weight of these optics tend to be very important.
In light of this, Laowa introduces its own anamorphic design to ensure a uniform anamorphic compression ratio and enable optical quality that solves the challenges of every anamorphic lens user.
Laowa repositions the lens element groups which are arranged in [spherical glasses + focusing system + cylindrical glasses + spherical glasses]. Group 1 and focusing system compress images and thus smaller cylindrical blocks can be used, making the lens smaller and more compact. Also, the image is formed and focused before the cylindrical blocks. The images projected onto the cylinders remain the same, so a constant anamorphic compression ratio can be maintained even as the subject approaches for closer focus.

The performance of the G1 section is of paramount importance, as it acts as a complete single lens. Converts the virtual image by suppressing aberration to the minimum level. Therefore, the G1 section requires meticulous optical design and exquisite craftsmanship, as any tolerance will bring aberrations to real images. Keeping the G1 section small in size is the other big challenge.
Unprecedented compactness

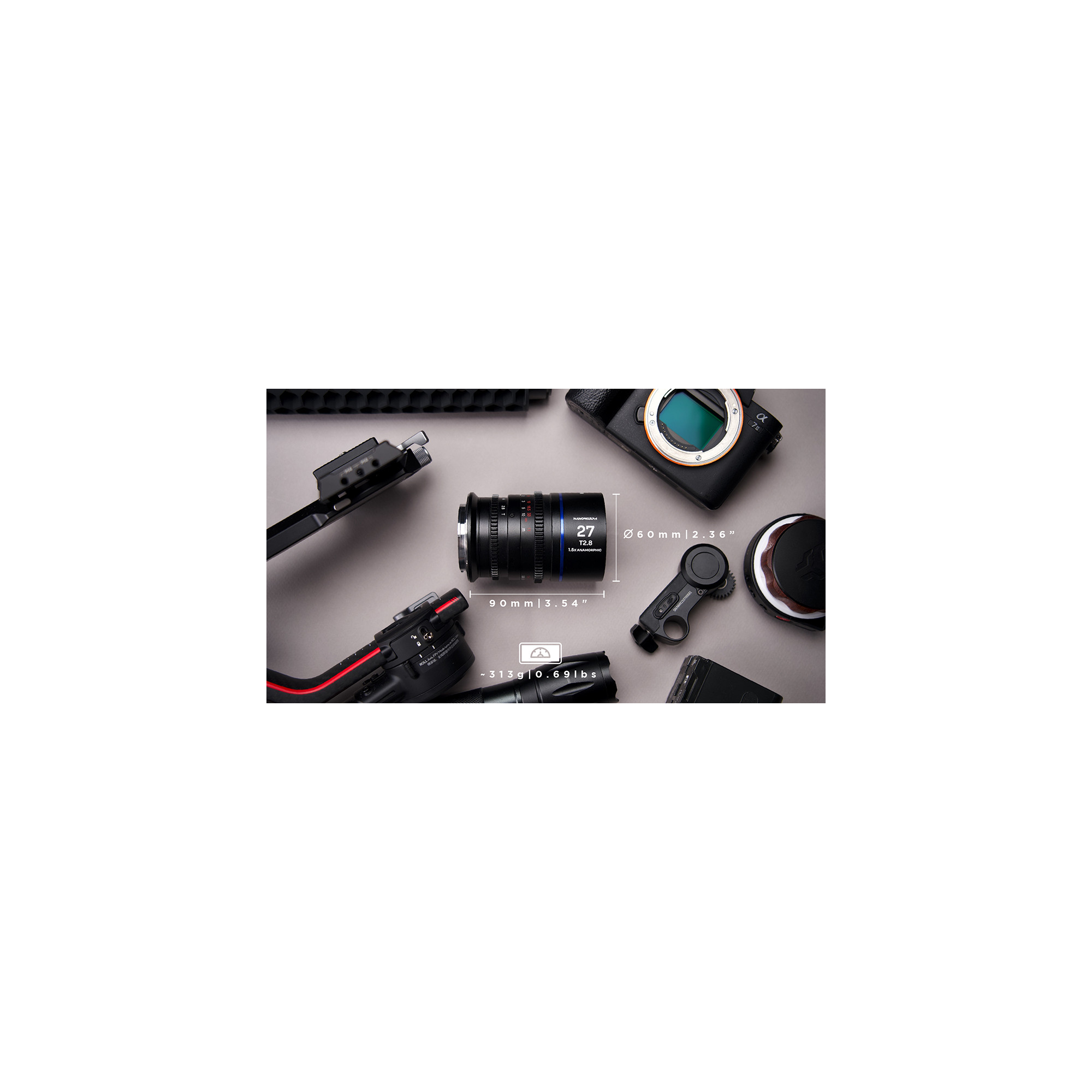

The lenses weigh less than 400g each and are 10cm long.
Very useful for any configuration, for example by hand, on a gimbal, on a tripod, on a slider, on a jib, even on a drone. Not many anamorphic targets can be lifted on drones, due to the weight.

An anamorphic compression ratio of 1.5x is the perfect balance between size and anamorphic intensity. With a 1.5x compression ratio, after decompression you will get a ratio of 2.66: 1 on a 16: 9 sensor. There is some room left to crop in a 2.4: 1 widescreen aspect ratio. On the other hand, a 1.8x or a 2x ratio would generate a 3.2: 1 and 3.5: 1 image, which need further cropping to get to 2.4: 1. Part of the image would be wasted.

Constant anamorphic compression ratio
The constant anamorphic compression ratio over the entire focusing range allows you to avoid shrinkage and stretching of the image.

An anamorphic compression ratio of 1.5x is the perfect balance between size and anamorphic intensity. With a 1.5x compression ratio, after decompression you will get a ratio of 2.66: 1 on a 16: 9 sensor. There is some room left to crop in a 2.4: 1 widescreen aspect ratio. On the other hand, a 1.8x or a 2x ratio would generate a 3.2: 1 and 3.5: 1 image, which need further cropping to get to 2.4: 1. Part of the image would be wasted.

Flare options

The traditional blue flare is common in the market. It is suitable for science fiction movies and cold vibes.
But not all movies fit the blue glow.

Laowa offers users another amber option.
The amber version of the flare is suitable for narrative and hot vibes, but is rarely found on the market, especially at this affordable price.

Compared to the more common blue flare, the silver version is a neutral color flare that gives you more control over the color of the flare.
The silver version flare changes color depending on the light source. Also, the flare is relatively thinner and less distracting.
Camera operators can now achieve the perfect look for different types of productions.

Short minimum focus distance

The minimum focus distance is shortened to allow users to create closer shots. The depth of field is smaller, so the sense of compression will be stronger. The bokeh will be more oval.

Nanomorph 27 mm T2,8 1,5x S35 - 43 cm
Nanomorph 35 mm T2,4 1,5x S35 - 60 cm
Nanomorph 50 mm T2,4 1,5x S35 - 70 cm

Name: Nanomorph 27mm T2.8 1.5X S35
Focal length: 27mm
Size: S35
T-stop range: T2.8-T16
Optical structure: 15 elements in 13 groups
Shutter: 13 blades
Minimum focusing distance: 43cm
Coverage circle: 25.6x16mm
Filter Thread: 55mm
Size: 60mm 90mm
Weight: 313gr
AoV (Horizontal): 70.8 °
AoV (Vertical): 33 °
Flare Color: Blue
Bindings: PL (Default) + EF, Canon R, Sony E, MFT, DJI DL, Nikon Z, L mount and Fuji X
