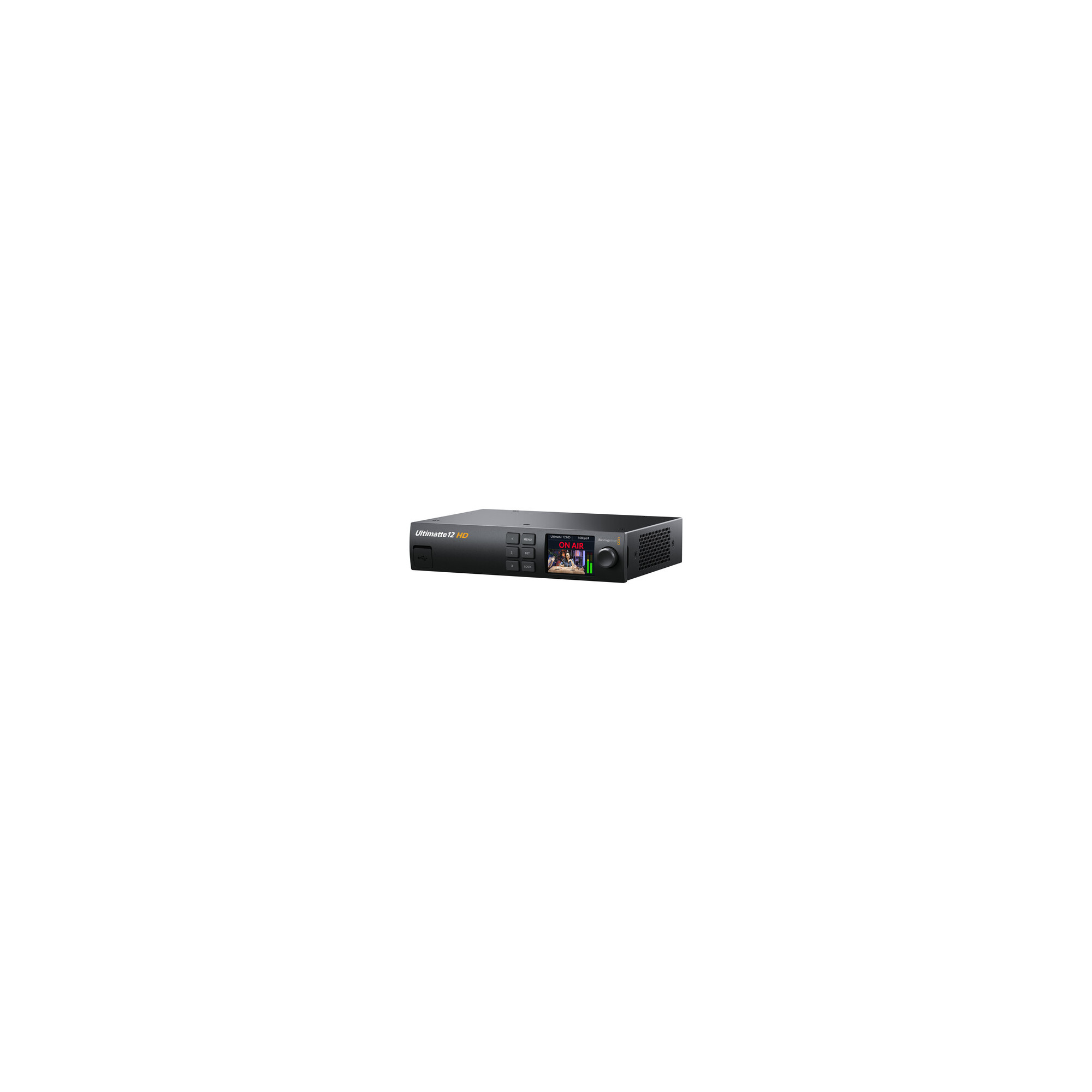

Ultimatte 12 HD

Connections
SDI Video Inputs: 5
SDI Video Outputs: 4
SDI Video Loop Outputs
1
reclocked SD or HD Camera FG.
SDI Rates: 270Mb, 1.5G, 3G.
Video Input Re-Sync: On all inputs.
Reference Connections:
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
GPIO: DE15
Ethernet:
Up to 1Gb/s for device control and loading stills into Media Pool.
Computer Interface:
1 x USB-C 3.0 for device configuration and software updates.

Standards
SD Video Standards:
525i59.94 NTSC, 625i50 PAL
HD Video Standards:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
SDI Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video Sampling: 4:2:2
Color Precision: 10-bit
Color Space:
REC 601, REC 709, REC 2020.
Multiple Rate Support:
Auto detection of SD and HD.

Composite Sources
Foreground: 1 x 3G-SDI In with Loop Out
Background:
1 x 3G-SDI In
Still from Media Pool
Background Matte:
Internal Window
Still from Media Pool
Garbage Matte:
1 x 3G-SDI In
Internal Window
Still from Media Pool
Holdout Matte:
1 x 3G-SDI In
Internal Window
Still from Media Pool
Layer: Still from Media Pool
Layer Matte:
Internal Window
Still from Media Pool

Composite Outputs
Fill: 1 x 3G-SDI
Matte: 1 x 3G-SDI
Program: 1 x 3G-SDI

Monitor
Monitor In:
1 x 3G-SDI
for monitor cascade
Monitor Out:
1 x 3G-SDI
For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Media Pool:
Background Still Image Formats
TGA, TIFF, BMP, PNG, JPG.
Background with Alpha Still Image Formats:
TGA, TIFF, BMP.
Layer Image Still Image Formats:
TGA, TIFF, BMP, PNG, JPG.
Layer with Alpha Still Image Formats:
TGA, TIFF, BMP.
Garbage Matte Still Image Formats:
TIFF, BMP, PNG, JPG.
Holdout Matte Still Image Formats:
TIFF, BMP, PNG, JPG.
Media Pool Memory:
6GB non-volatile internal storage.

Displays
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.

Control
Front Panel:
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
Control Connection:
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software Control:
Ultimatte Software Control
supported on Mac™ or Windows™ computers.
Hardware Control Panel:
Ultimatte Smart Remote 4
Custom Control:
Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.

Software
Software Updates:
Using USB-C or Ethernet connection to Mac™ or Windows™ computers.
Configuration:
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Operating Systems
Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.
Windows 10, 64-bit.
Windows 11.

Power Requirements
Power Supply:
1 x Internal 100-240V AC, 50/60Hz
Power Usage: 15W

Ultimatte 12 HD
Welcome wallet with QR code for software download
