DVK-400

The 4K Real-Time Chroma Keyer with 10-Bit, 4:4:4 Video Processing from Datavideo provides you with high-quality, real-time chroma keying using 10-bit processing and 4:4:4 color sampling for clean edges with limited artifacts. The keyer supports video up to UHD 4K, and it is designed to allow you to choose from green or blue as the background to key your foreground subject. The keyer does all the processing in real time, requiring your computer only for interface control and adjustment using the downloadable DVK-400 software app for Windows.

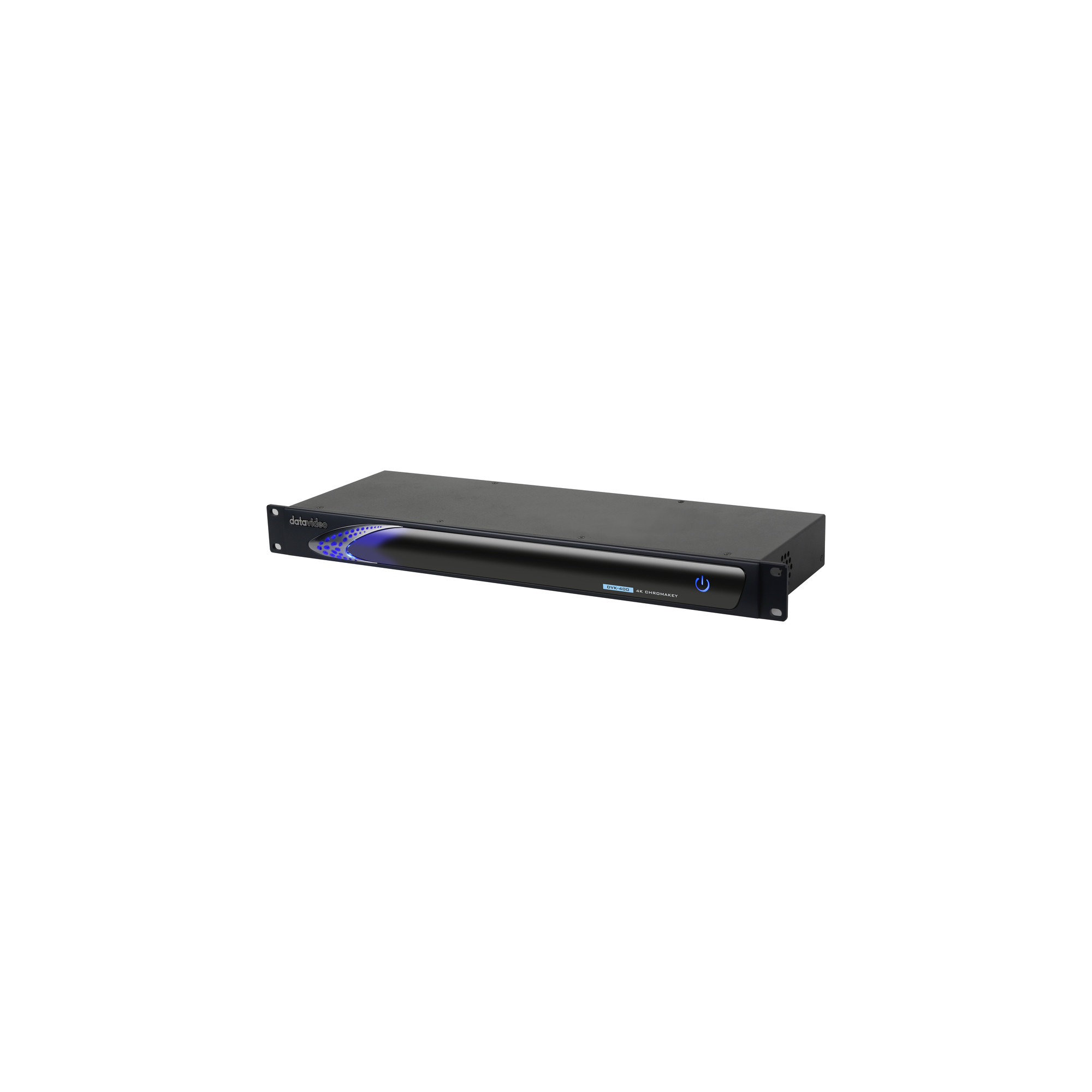

This is a live keyer, which allows you to composite a foreground over a live video background, supporting both SDI and HDMI inputs for foreground and background as well as SDI and HDMI outputs for preview and program output. A separate HDMI input allows for an external matte as well as text, graphics, and video overlays. The keyer''s sophisticated algorithms help preserve the transparency in smoke as well as providing clean keys with blonde hair, water-filled bottles, or glass objects. The DVK-400 is 1 RU tall and has built-in rackmount ears; it also has removable feet for desktop applications.
Network Keyer
The DVK-400 is accessible when connected to a network and is controlled by a software application on your computer.
Software
The software application is downloadable and requires a computer running Windows 10 or later.
Processing
The keyer features 4:4:4 color sampling support and 10-bit processing. This enables the DVK-400 to do all the heavy keying work while your computer only needs to handle the interface. This results in real-time 4K keying and is not dependent on the power of your computer.
A mirror feature is designed for the talent to see his or her own reference to the background objects.
You can adjust transparency, while preserving shadow detail. This allows you to work with elements such as blond hair, water bottles, or glass, while smoke and reflections can be easily keyed out by DVK-400.
Multiple HDMI and SDI outputs for Program and Preview with mirror option.
Intelligent Matte Control
Adjustable black and white levels allow for precise matte settings.
Garbage Matte
The keyer allows you to create and position a garbage matte for handling areas outside of the background, or items in frame that you don''t want to composite.
Post Processing
You can adjust the brightness, contrast, and saturation of the foreground element after keying to help it blend with the background without affecting the background.


Input Connectors Foreground
12G/6G/3G: 1 x BNC
HDMI 2.0: 1 x Type-A

Background
HDMI 2.0: 1 x Type-A

Auxiliary
HDMI 1.4: 1 x Type-A (Lumakey Overlay/External Matte/Camera)

Sync
Tri-Sync or Blackburst: 1 x BNC
Output Connectors Loop-Through
12G/6G/3G-SDI: 1 x BNC

Program
12G/6G/3G-SDI: 2 x BNC
HDMI 2.0: 1 x Type-A

Preview
12G/6G/3G-SDI: 1 x BNC
HDMI 2.0: 1 x Type-A

Sync
Tri-Sync or Blackburst: 1 x BNC
Video Format 3840 x 2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
Processing Color Sampling Ratio: 4:4:4
Bit Depth: 10-Bit
Interface Ethernet: RJ45
RS-232: DB-9
Firmware: USB Type-A
Software Requirements Windows 10 or Higher
Power Input: 7 to 15 VDC
Connector: 4-Pin XLR
Grounding Screw: x 1
Operating Temperature & Humidity 32 to 104°F / 0 to 40°C
10 to 80% (Non-Condensing)
Dimensions 19.06 x 9.57 x 1.73" / 48.4 x 24.3 x 4.4 cm

Weight 5.95 lb / 2.7 kg
