CA-XLR2D-AN

Number of Channels: 2
Balanced Inputs:
Microphone Inputs
Input Switch to MIC
Input Impedance: = 2 Kilohms
Maximum Input Level: +6 dBu (Att Setting at 46 dB)
Minimum Input Level: -60 dBu (Att Setting at 0 dB)
Gain Range: 66 dB
Line Inputs
Input Switch to LINE
Input Impedance: = 10 Kilohms
Maximum Input Level: +24 dBu (Att Setting at 46 dB)
Minimum Input Level: +4 dBu (Att Setting at 0 dB)
Gain Range: 66 dB
Unbalanced Input
Connector: 3.5 mm Stereo Input Jack
Input Impedance: = 2 Kilohms
Maximum Input Level: +6 dBu (Att Setting at 46 dB)
Minimum Input Level: -60 dBu (Att Setting at 0 dB)
Gain Range: 66 dB
Plug-In Power: 2.7 V
Unbalanced Output
Connector: 3.5 mm Stereo Input Jack
Output Level: 0.29 Vrms (Fixed, Output Setting on Camera), 0.5 Vrms (Output Volume Setting at Max, Output Setting on Headphones)
Headphone Working Impedance: 16 to 250 Ohms
Power Consumption: 2 W Maximum
Dimensions:
3.47 x 4.69 x 4.33" / 88.2 x 119.1 x 110 mm (Not Including Protrusions)
Weight: 12.6 oz / 357 g (with Battery Holder Attached, Not Including Batteries)
Package Weight: 1.345 lb/ 610 g
Box Dimensions: 8.7 x 6.9 x 5.9"/ 22 x 18 x 15 cm

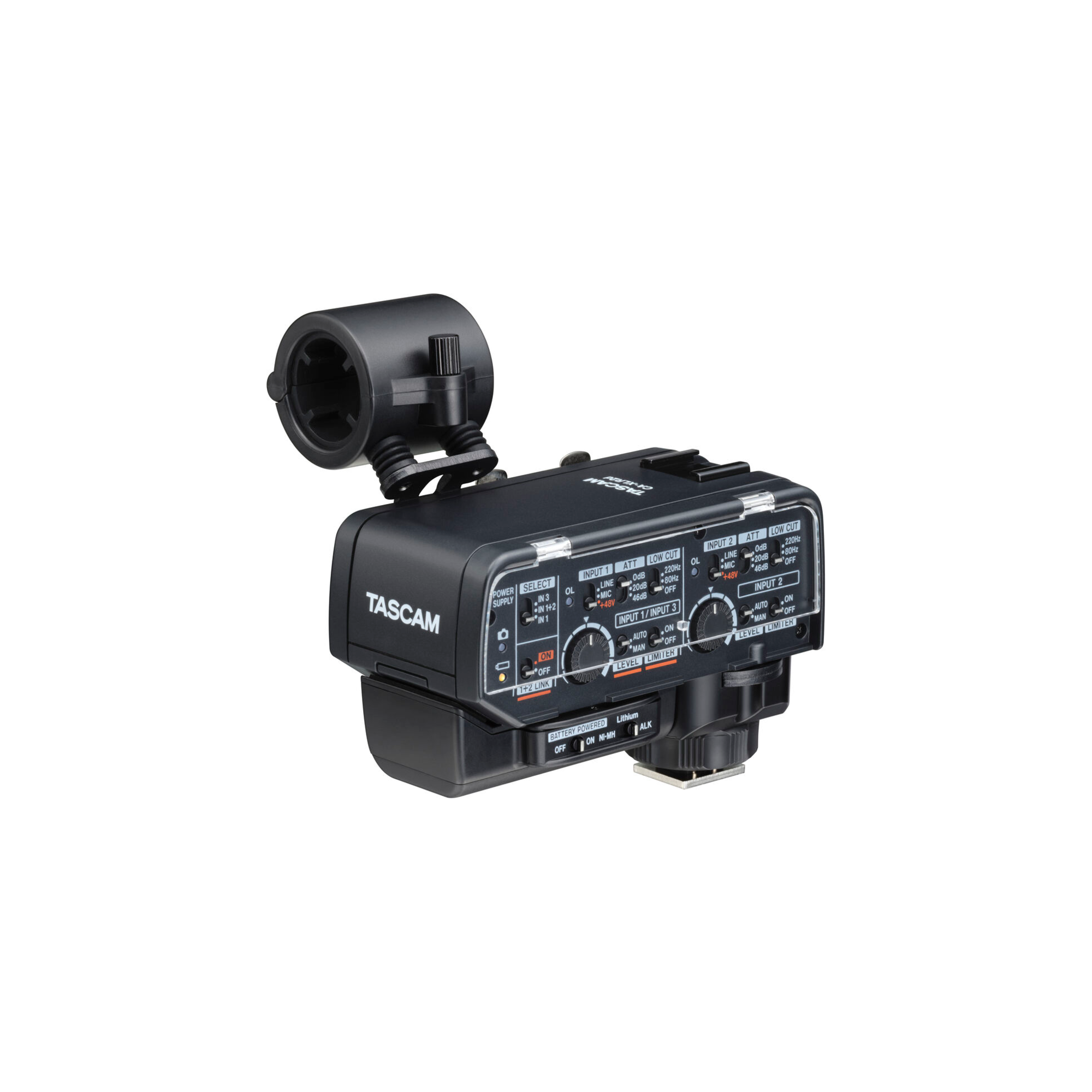

Tascam CA-XLR2d-AN XLR Microphone Adapter Kit for Cameras (3.5mm Analog)
CA-AK1-AN Cold Shoe Mount Adapter (Attached to Unit)
Mic Holder (Attached to Unit)
Battery Holder (with Connector Cover)
3.5mm Stereo Mini Cable
