CA-AK1-C

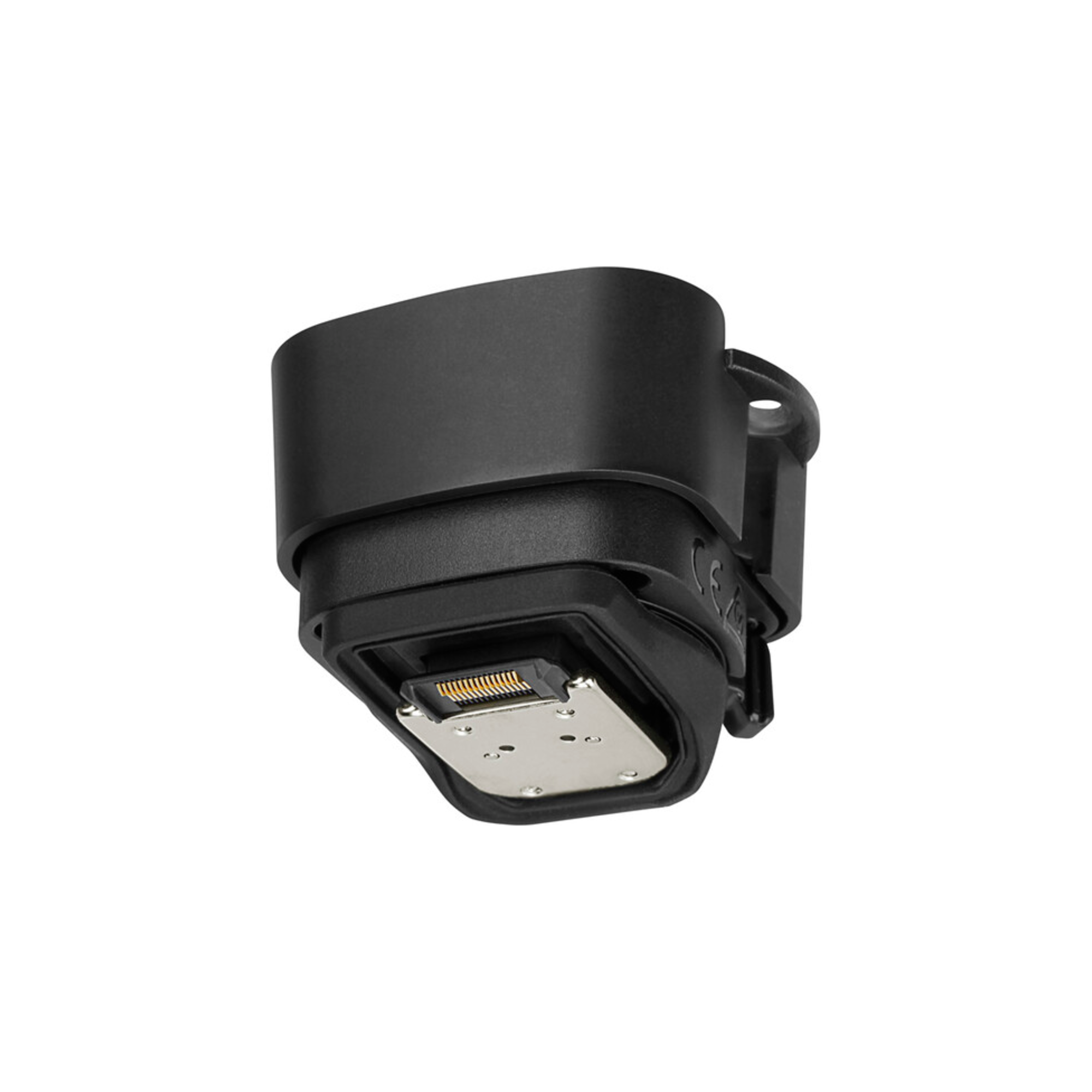

Tascam CA-AK1-C Conversion Adapter for CA-XLR2d and Canon Multi-Accessory Shoe

The TASCAM CA-AK1-C is a conversion adapter that allows you to use the CA-XLR2d adapter for XLR microphones with Canon's multi-accessory hot shoe. Owners of the CA-XLR2d-AN mic adapter for cameras with 3.5mm inputs or the CA-XLR2d-F mic adapter for FUJIFILM cameras can use this adapter to take advantage of the multi-accessory shoe's power and cable-free digital audio connections on compatible Canon models.

Supported Canon Models with Multi-Accessory Shoe EOS R3
Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
There is a 4 second mute when switching between camera power and battery power
Does not support OL (overload) indicators

EOS R5 C
Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
There is a 4 second mute when switching between camera power and battery power
Does not support OL (overload) indicators

EOS R7
Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
There is a 4 second mute when switching between camera power and battery power
Does not support OL (overload) indicators

EOS R10
Does not supported battery power from camera, can only be powered by battery box
Does not support OL (overload) indicators

XF605
Does not support battery power using battery box
Does not support OL (overload) indicators
