Lindy

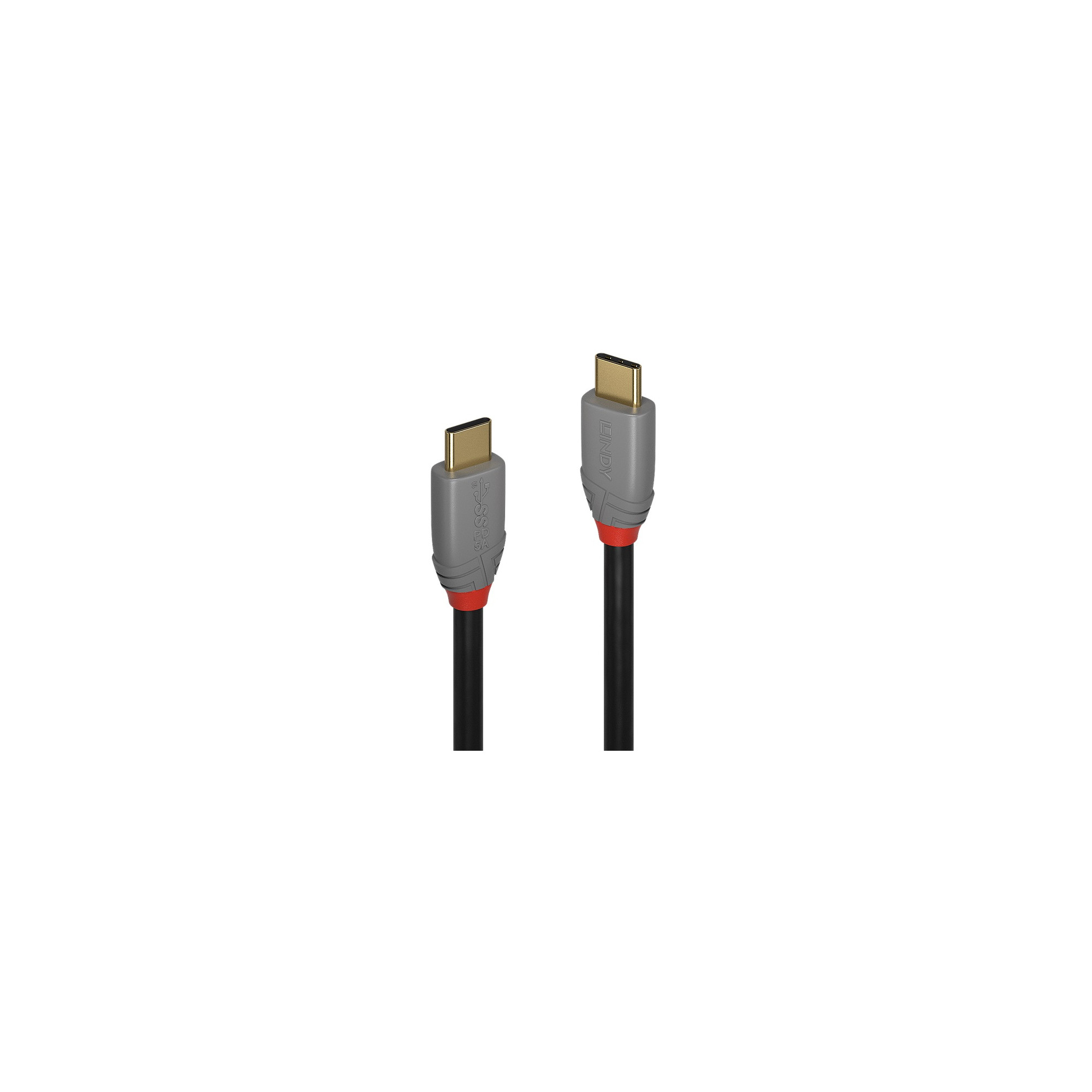

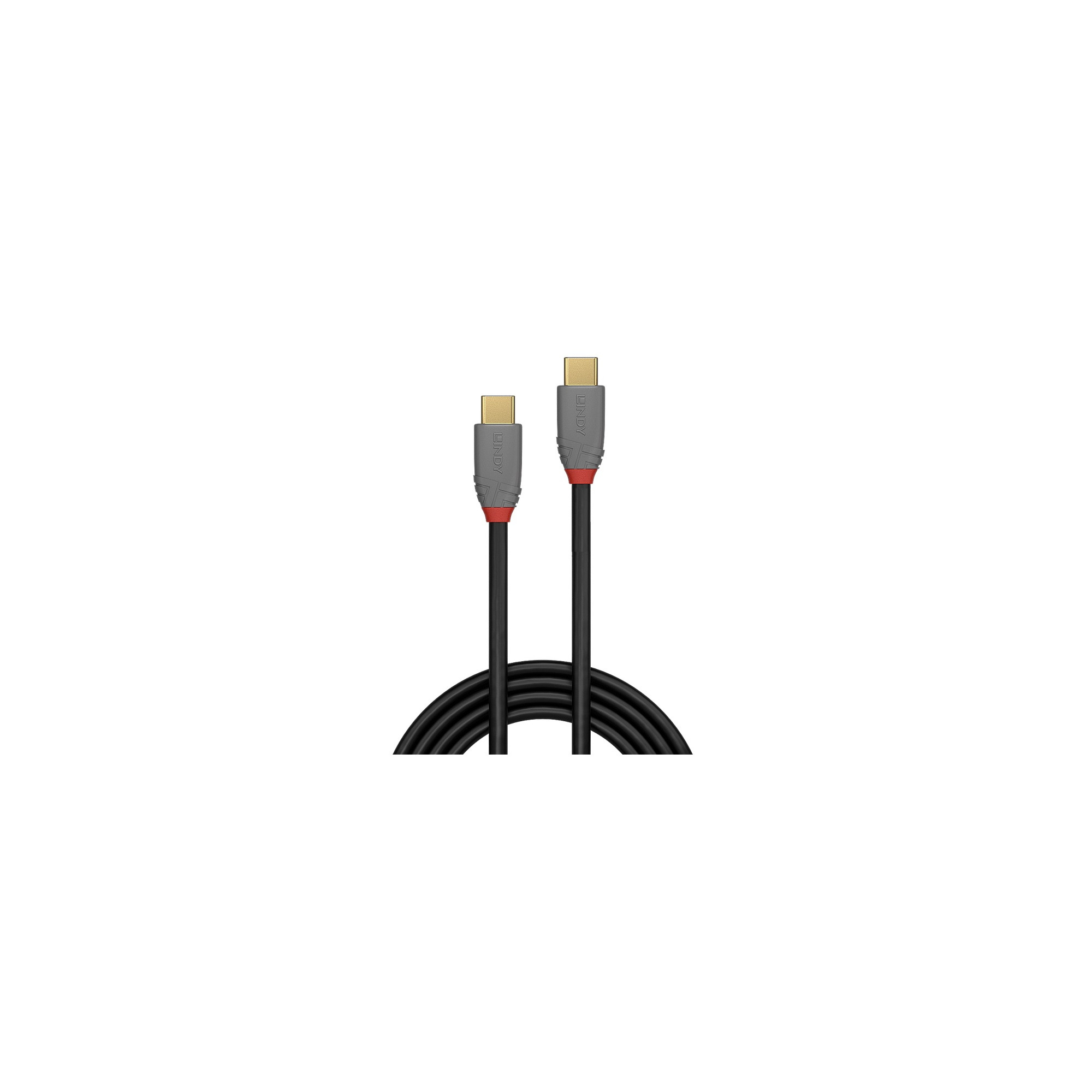

1m USB 3.1 Type C Cable, 5A PD, Anthra Line
go to the technical sheet
€ 24,70

€ 22,98 VAT excl.

Available 8 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

Professional choice USB 3.1 Type C to C, 5A (100W), cable for commercial and high performance AV and IT installations
Supports SuperSpeed+ data transfer speeds up to 10Gbps
Robust PVC housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
SuperSpeed+, USB 3.1, 10Gbps; 10 year warranty



From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 3.1 Type C to C, 5A, cables are the professional choice for high performance connections in commercial AV and IT installations.



USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.



Anthra Line USB 3.1 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.



The SuperSpeed+ protocol is supported with up to 10Gbps bandwidth for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.



Anthra Line USB 3.1 Type C to C, 5A cables are available in lengths from 0.5m, 1m and 1.5m

Connectors

Connector A: USB 3.1 Type C Male
Connector B: USB 3.1 Type C Male
Housing Material: PVC
Connector Plating: 24K Gold plated
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold plated
Dimensions (approx.) WxDxH: 12.7x30.8x7.3mm (0.5x1.21x0.29in)



Cable Construction

Length: 1m (3.28ft)
Standard: USB 3.1
Colour: Black
Type: Round
Jacket Diameter: 4.8mm (0.19in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 24/30/32AWG
Shielding: Tinned Copper Braid 85%



Specifications

Supported Bandwidth: 10Gbps
Maximum Resolution: -
Nominal Attenuation: 0.5Mhz - 15Ghz < 40db
Minimum Band Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
