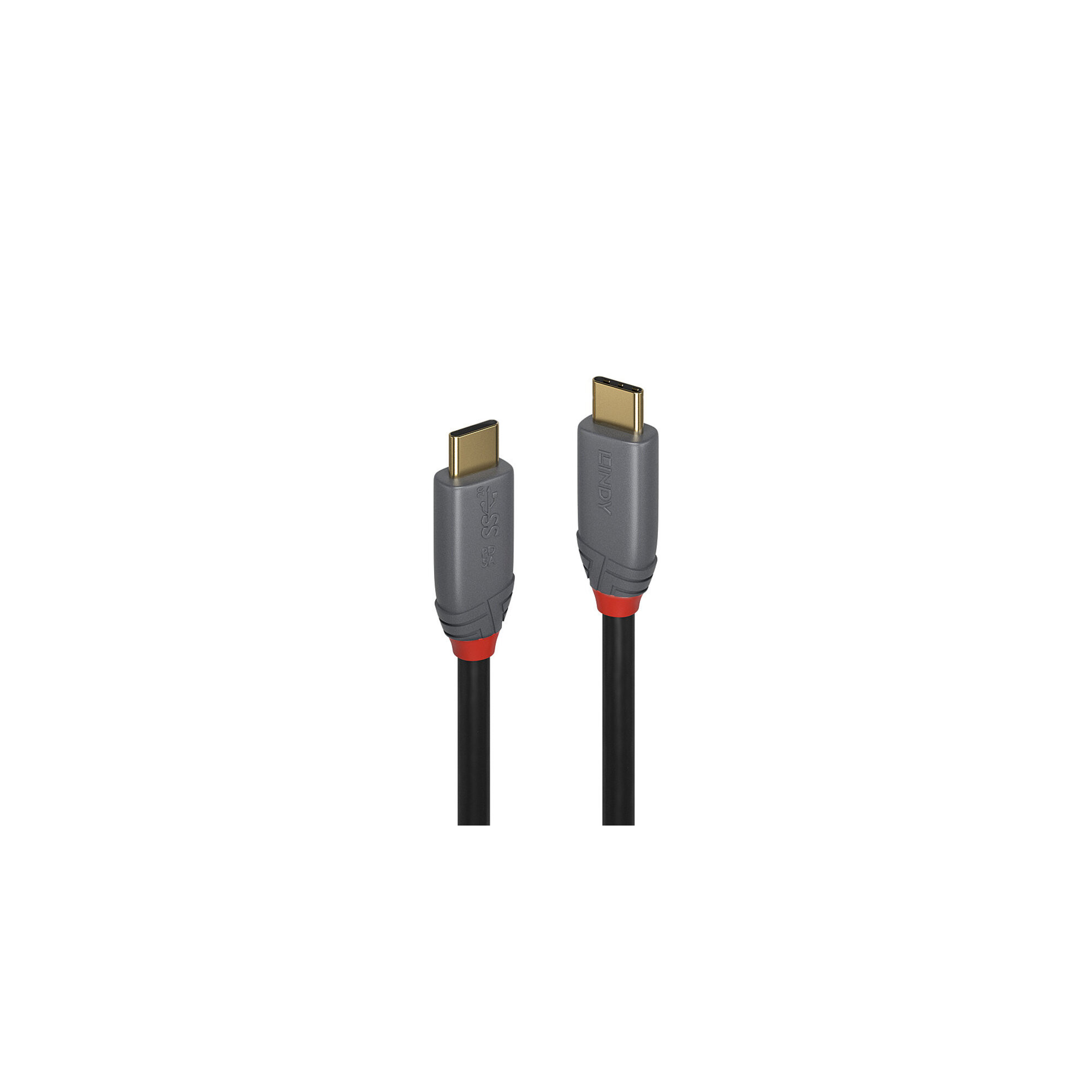

USB cable 3.2 Type C to C
Lindy
₦ 58,349.00 VAT excl.
- Professional USB 3.2 Gen 2x2 Type-C to C Cable, 5A (100W), for commercial and high-performance AV and IT installations
- SuperSpeed 20Gbps USB support - Data transfer speeds up to 20Gbps, Power Delivery and DisplayPort Alternate Mode
- Sturdy PVC construction, gold-plated connectors and contacts
- Triple shielded cable, corrosion-resistant tinned copper conductors
Lindy's USB 3.2 Type C to C, 5A, Anthra Line system cables are the professional and complete solution for high-performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple-shielded construction with tinned copper conductors for performance and corrosion resistance.
High-quality gold-plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for quickly transferring large volumes of data.
These cables are E marked to provide 100W (20V 5A) of power to your devices using the most efficient power requirements.
The cable supports DisplayPort Alternate Mode up to a maximum resolution of 4K 60Hz.
The USB Type-C standard features a reversible connector, so no matter which way you insert the cable, you'll still get a connection.
This connector allows for a fully bidirectional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
We have changed the naming of our USB 3 cables to follow the updated USB specifications.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer speeds of up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard that supports data transfer speeds of up to 20 Gbps
USB 3.0, USB 3.1, and USB 3.2 PCs, cables, and devices are all compatible with each other, when using a USB Type-A or USB Type-C host interface.
Connectors
Connector A: USB 3.2 Type C Male
Connector B: USB 3.2 Type C Male
Connector Material: PVC
Connector shell shielding: Copper foil
Connector Plating: Gold
Pin Composition: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH: 12.7x30.8x7.3mm (0.5x1.21x0.29in)
Cable composition
Length: 0.5m (1.64ft)
Standard: USB 3.2 Gen 2x2
Power Delivery: PD 3.0
Maximum power: 100W (20V 5A, Standard Power Range SPR)
Black colour
Type: Round
Sheath Diameter: 4.8mm (0.19in)
Sheath material: PVC
Conductor Material: Tinned Copper
Power Conductor Wire: 22AWG
Conductor diameter data: 32AWG
Shielding: 85% copper braid
Supported bandwidth: 20Gbps
Maximum resolution: 4K 4096x2160@60Hz
Nominal attenuation: 0.5Mhz-15Ghz < 40dB
Minimum bend radius: 48mm (1.89in)
Operating temperature: 0°C - 40°C (32°F - 104°F)
Storage temperature: 0°C - 70°C (32°F - 158°F)
