Swit

6948193511795
Battery V-Mount Li-Ion DC 14.4V 210Wh/14.6Ah USB-C D-tap
go to the technical sheet
€ 489,38

€ 455,24 VAT excl.

Available 4 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

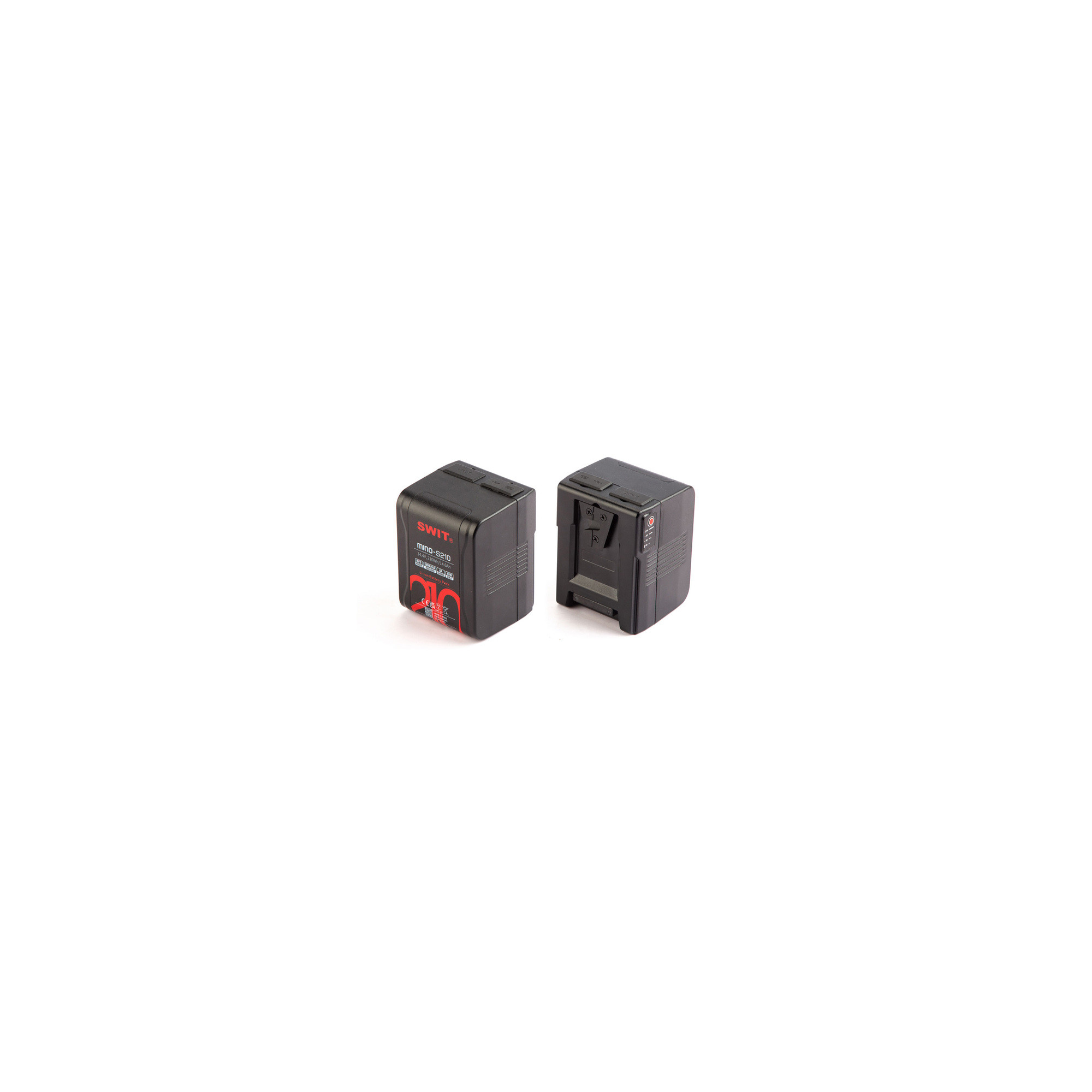

Swit Battery V-Mount Li-Ion DC 14.4V 210Wh/14.6Ah USB-C D-tap

MINO-S210 adopts the top GA cells, and achieves the ultimate capacity and performance in a compact size.
At the same time, MINO-S210 can also provides a high output of 200W, which provides a guarantee for driving some lighting products.

MINO support USB-C high-speed charging protocol.
The MINO series batteries are not only compact and lightweight, but also offer large capacity and also support for USB-C charging.
In addition, these batteries are equipped with advanced safety features such as overcharge protection, overdischarge protection, short circuit protection, and temperature protection, ensuring that they are safe to use in any situation.
Furthermore, the MINO series batteries support bi-directional communication, allowing users to monitor their battery status in real-time for a more convenient experience.
In combination with SWIT's PB-M series batteries, the MINO series forms a complete and versatile V-mount battery system with capacities ranging from 45Wh to 210Wh, providing professional users with a comprehensive and reliable power solution. Get yours today and experience the power of SWIT.

Battery plate: V-Mount
Nominal voltage: 14.4V
Capacity: 210Wh, 14.6Ah
Power IN&OUT:
- Electrodes: 200W 16A out, 16.8V 6A in
- D-tap: 120W 10A out, 16.8V 6A in
- USB-A: 10W, 5V/2A out
- USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A
Dimension: 105×79.6×73.8mm (Fit RED Raptor)
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: 1.02kg

Batteria V-Mount Li-Ion DC 14.4V 210Wh/14.6Ah
