Irig Pro Quattro IO Deluxe
IK Multimedia
8025813896031
Portable 4x2 Audio and MIDI Interface/Mixer for Mobile Devices, Computer,Cameras
go to the technical sheet
₦ 774,859.00
₦ 720,799.00 VAT excl.

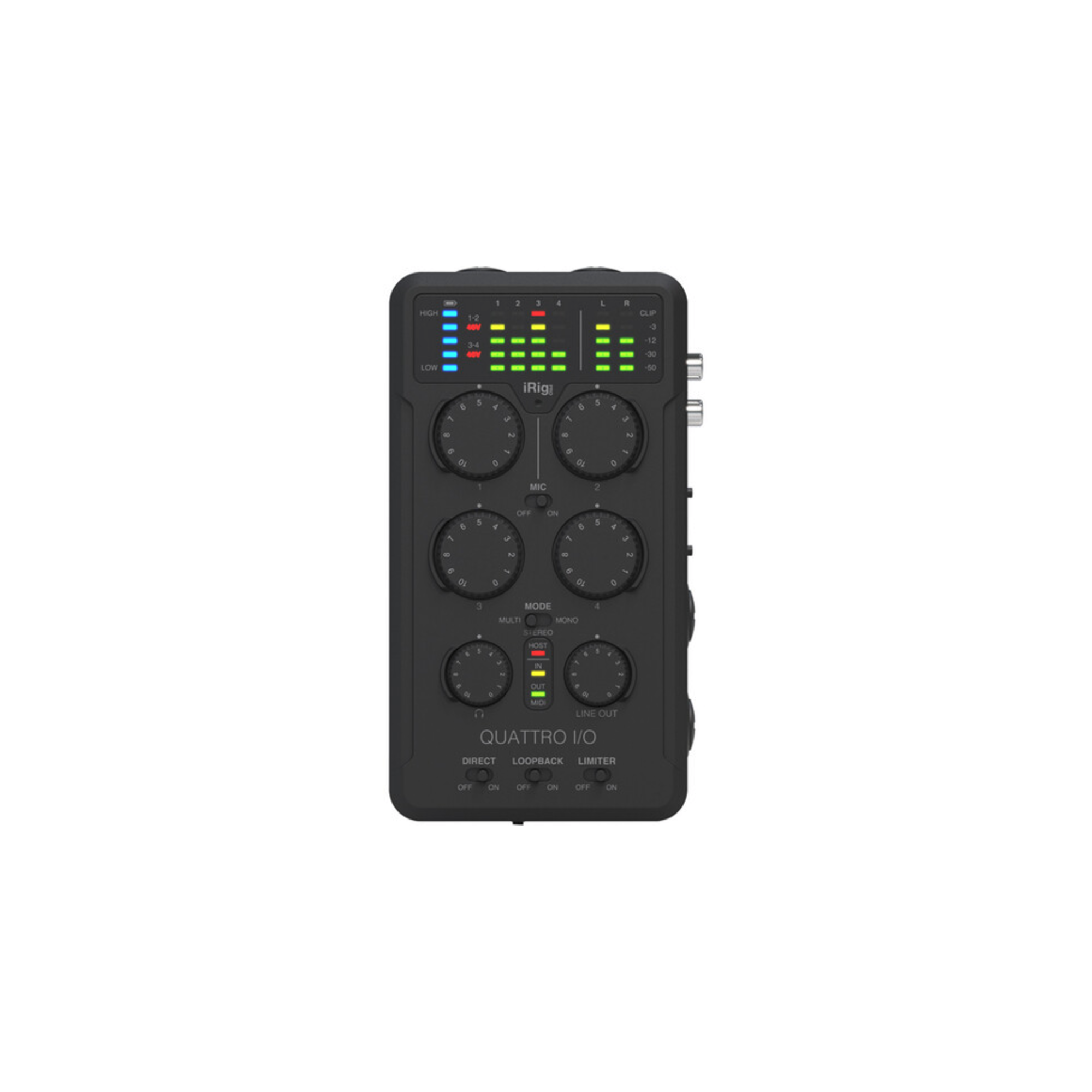

IK Multimedia iRig Pro Quattro I/O Portable 4x2 Audio and MIDI Interface/Mixer for Mobile Devices, Computers, Cameras
Content creators can effortlessly capture high-quality audio directly to their iOS/Android mobile device, Mac/Windows computer, or DSLR/mirrorless camera with the IK Multimedia iRig Pro Quattro I/O, a 4-input/2-output audio/MIDI interface designed specifically for live streaming, podcasting, and audio-for-video applications, at home or in the field.
Small enough to fit in the palm of your hand, the iRig Pro Quattro I/O offers a flexible array of input/output options including four low-noise balanced XLR mic preamps with 48V phantom power, Hi-Z inputs for instruments, stereo RCA and 3.5mm line inputs to connect an audio player, and an onboard omnidirectional mic for working on the go.
You'll also find two balanced XLR line outs, a 3.5mm stereo line out, a 3.5mm headphone out with direct-monitoring option, and full MIDI I/O.
The unit delivers clear 24-bit / 96 kHz audio and is capable of mono, stereo, and multichannel operation to adapt to your workflow.
A built-in limiter protects against your audio clipping.
The interface runs off either 4 AA batteries, USB power, or an external PSU (available separately).
° Audio Quality Without Compromise, Wherever You Go
- Up to 24-bit / 96 kHz digital audio
- 4 ultralow-noise mic preamps with full +48v phantom power
- Asynchronous USB for ultralow conversion jitter
- Built-in limiter on input 1 and 2
- Multitrack, stereo, or mono internal mixdown to fit any field situation
° Comprehensive Input and Output Options
- Two balanced combo mic preamps / unbalanced Hi-Z instrument inputs (with 48V phantom power)
- Two balanced combo mic preamps / balanced line-level inputs (with 48V phantom power)
- Stereo RCA and stereo 3.5mm line inputs
- Two balanced XLR line outputs
- 3.5mm stereo line output
- 3.5mm headphone jack
- Built-in omnidirectional microphone
- Two 2.5mm MIDI input and output
° Streaming / Podcast Interface with Loopback Mode
Enable Stereo mode and iRig Pro Quattro I/O mixes all sources down to stereo for streaming or recording to an iOS/Andoid mobile device or Mac/Windows computer.
Monitoring is easy thanks to a dedicated headphone output with independent volume control and direct monitoring. Or, use Mono mode for streaming to social media.
The Loopback function lets you send the signal playing on your device back into the recording or streaming app being used.
This allows you to send your video playback, mouse clicks, web browser output, etc., straight into your live stream, podcast, or video recording.
° Audio Interface for Field Recording with Your Mobile Device
With an onboard omnidirectional microphone and optional X-Y stereo mic capsules (available separately), iRig Pro Quattro I/O turns your mobile device into a full-featured professional field recorder.
° Standalone Mixer with DSLR/Mirrorless Cameras
The iRig Pro Quattro I/O can be used as a standalone preamp and mixer: just power it via battery, USB, or a PSU adapter (available separately), and use the full set of inputs/outputs to capture professional audio on your DSLR camera.
° Clean Audio with Safety Backup Channels
When the unit is set to Stereo or Mono mode, channels 3 and 4 are used as safety channels: this means that it is possible to send the same signal present on channels 1 and 2 to channel 3 and 4 but reduced by 12 dB as a distortion-free backup in case the sound source gets loud unexpectedly.
Content creators can effortlessly capture high-quality audio directly to their iOS/Android mobile device, Mac/Windows computer, or DSLR/mirrorless camera with the IK Multimedia iRig Pro Quattro I/O, a 4-input/2-output audio/MIDI interface designed specifically for live streaming, podcasting, and audio-for-video applications, at home or in the field.
Small enough to fit in the palm of your hand, the iRig Pro Quattro I/O offers a flexible array of input/output options including four low-noise balanced XLR mic preamps with 48V phantom power, Hi-Z inputs for instruments, stereo RCA and 3.5mm line inputs to connect an audio player, and an onboard omnidirectional mic for working on the go.
You'll also find two balanced XLR line outs, a 3.5mm stereo line out, a 3.5mm headphone out with direct-monitoring option, and full MIDI I/O.
The unit delivers clear 24-bit / 96 kHz audio and is capable of mono, stereo, and multichannel operation to adapt to your workflow.
A built-in limiter protects against your audio clipping.
The interface runs off either 4 AA batteries, USB power, or an external PSU (available separately).
° Audio Quality Without Compromise, Wherever You Go
- Up to 24-bit / 96 kHz digital audio
- 4 ultralow-noise mic preamps with full +48v phantom power
- Asynchronous USB for ultralow conversion jitter
- Built-in limiter on input 1 and 2
- Multitrack, stereo, or mono internal mixdown to fit any field situation
° Comprehensive Input and Output Options
- Two balanced combo mic preamps / unbalanced Hi-Z instrument inputs (with 48V phantom power)
- Two balanced combo mic preamps / balanced line-level inputs (with 48V phantom power)
- Stereo RCA and stereo 3.5mm line inputs
- Two balanced XLR line outputs
- 3.5mm stereo line output
- 3.5mm headphone jack
- Built-in omnidirectional microphone
- Two 2.5mm MIDI input and output
° Streaming / Podcast Interface with Loopback Mode
Enable Stereo mode and iRig Pro Quattro I/O mixes all sources down to stereo for streaming or recording to an iOS/Andoid mobile device or Mac/Windows computer.
Monitoring is easy thanks to a dedicated headphone output with independent volume control and direct monitoring. Or, use Mono mode for streaming to social media.
The Loopback function lets you send the signal playing on your device back into the recording or streaming app being used.
This allows you to send your video playback, mouse clicks, web browser output, etc., straight into your live stream, podcast, or video recording.
° Audio Interface for Field Recording with Your Mobile Device
With an onboard omnidirectional microphone and optional X-Y stereo mic capsules (available separately), iRig Pro Quattro I/O turns your mobile device into a full-featured professional field recorder.
° Standalone Mixer with DSLR/Mirrorless Cameras
The iRig Pro Quattro I/O can be used as a standalone preamp and mixer: just power it via battery, USB, or a PSU adapter (available separately), and use the full set of inputs/outputs to capture professional audio on your DSLR camera.
° Clean Audio with Safety Backup Channels
When the unit is set to Stereo or Mono mode, channels 3 and 4 are used as safety channels: this means that it is possible to send the same signal present on channels 1 and 2 to channel 3 and 4 but reduced by 12 dB as a distortion-free backup in case the sound source gets loud unexpectedly.
Signal Processing
Pad: No
High-Pass Filter: No
Solo/Mute: No
Connectivity
Analog Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic/Hi-Z Input
- 2x Combo XLR-1/4" TRS Balanced Mic/Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x Stereo RCA Coaxial Line Input
- 2x XLR 3-Pin Balanced Output
- 1x 1/8" / 3.5 mm TRS Line Output
- 1x 1/8" / 3.5 mm TRS Headphone Output
Phantom Power : 48 V
Digital Audio I/O : No
Host Connection:
- 1x Mini-DIN 8-Pin (on Interface)
- 1x Lightning (with Included Cable)
- 1x USB-A (with Included Cable)
- 1x USB-C (with Included Cable)
USB (Non-Host): 1x USB-C (Power Input)
Sync I/O: No
Network I/O: No
MIDI I/O:
- 1x 2.5 mm TRS Input
- 1x 2.5 mm TRS Output
Performance
Frequency Response:
- XLR Mic Inputs: 10 Hz to 46 kHz (at 96 kHz, Balanced)
- 1/4" Hi-Z Inputs: 7 Hz to 46 kHz (at 96 kHz, Unbalanced)
- XLR Line Inputs: 10 Hz to 46 Hz (at 96 kHz, Balanced)
- 1/8" / 3.5 mm Line Inputs: 16 Hz to 46 kHz (at 96 kHz, Unbalanced)
- RCA Line Inputs: 16 Hz to 46 kHz (at 96 kHz, Unbalanced)
- Mic: 30 Hz to 20 kHz
- XLR Line Outputs: 5 Hz to 44 kHz (at 96 kHz, Balanced)
- 1/8" / 3.5 mm Line Outputs: 5 Hz to 44 kHz (at 96 kHz, Unbalanced)
- 1/8" / 3.5 mm Headphone Outputs: 15 Hz to 44 kHz (at 96 kHz, Unbalanced)
Maximum Input Level:
- XLR Mic Inputs: -55 dBu for 0 dBFS (Balanced)
- 1/4" Hi-Z Inputs: -43 dBu for 0 dBFS (Unbalanced)
- XLR Mic/Line Inputs: -54 dBu for 0 dBFS (Balanced)
- 1/8" / 3.5 mm Line Inputs: -3.5 dBV (Unbalanced)
Maximum Output Level:
- XLR Line Outputs: +12 dBu at 0 dBFS (Balanced)
- 1/8" / 3.5 mm Line Outputs: +12 dBu at 0 dBFS (Unbalanced)
Headphone Output Power:
- 1/8" / 3.5 mm: 26 mW per Channel into 32 Ohms
Impedance:
- XLR Mic Inputs: 1 Kilohm (Balanced)
- 1/4" Hi-Z Inputs: 1 Megohm (Unbalanced)
- XLR Line Inputs: 1 Kilohm
- 1/8" / 3.5 mm Line Inputs: 2.1 Kilohms
- RCA Line Inputs: 2.1 Kilohms
- XLR Line Outputs: 150 Ohms (Balanced)
- 1/8" / 3.5 mm Line Outputs: 150 Ohms (Unbalanced)
- 1/8" / 3.5 mm Headphone Outputs: 22 Ohms
Dynamic Range:
- XLR Mic Inputs: 103 dBA
- 1/4" Hi-Z Inputs: 103 dBA
- XLR Line Inputs: 101 dBA
- 1/8" / 3.5 mm Line Inputs: 93 dBA
- RCA Line Inputs: 93 dBA
- XLR Line Outputs: 100 dBA
- 1/8" / 3.5 mm Line Outputs: 100 dBA
- 1/8" / 3.5 mm Headphone Outputs: 100 dBA
Digital Audio
Sample Rates: 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion: No
Bit Depths: 24-Bit
Audio Storage & Playback
Memory Card Slot: No
Compatibility
Included Software: No
Mobile Device Compatibility:
- iPhone
- iPad
- Android Smartphone
Required Hardware: USB-C Port
Internet Connection: Required for Software/Driver Download
Power
Power Requirements: AC/DC Power Adapter (Not Included), Battery, USB Bus Power
AC/DC Power Adapter: 9 VDC
Battery Type: 4x AA
Approximate Battery Life:
- 2.5 Hours (Playback)
- 1.5 Hours (Recording)
Physical
Dimensions : 6.5 x 3.6 x 1.7" / 166 x 92 x 43 mm
Weight : 11.5 oz / 325.0 g (without Batteries)
1x iRig Pro Quattro I/O Portable 4x2 Audio and MIDI Interface/Mixer for Mobile Devices, Computers, Cameras
1x Lightning to Mini-DIN Cable (23.6")
1x USB Type-C to Mini-DIN Cable (23.6")
1x USB Type-A to Mini-DIN Cable (23.6")
1x 2.5mm TRS Male to MIDI Female Adapter (3.9")
1x 1/4" Tread Adapter
4x AA Battery
