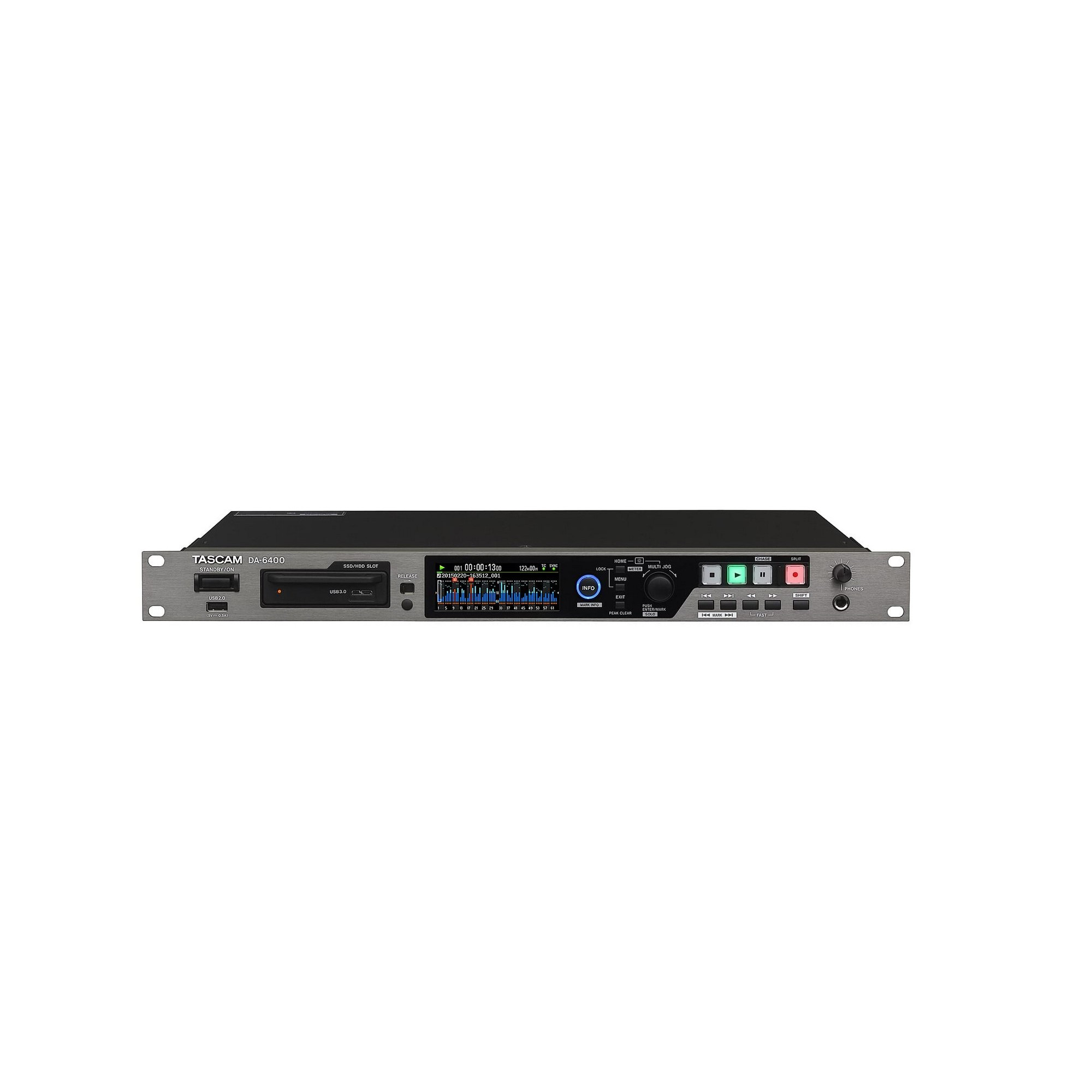

DA-6400

General
Recording media: SSD/HDD
File system: FAT32
File format: BWF format (wav extension)
Number of channels:
64 channels maximum (44.1/48kHz sampling frequency)
32 channels maximum (88.2/96kHz sampling frequency)
Quantization bit depth: 16/24-bit
Sampling frequencies:
44.1 kHz, 48 kHz, 88.2 kHz or 96 kHz
Clock references:
INTERNAL, WORD IN, VIDEO IN, SLOT1 IN, SLOT2 IN
Timecode frames:
23.976F, 24F, 25F, 29.97DF, 29.97NDF, 30DF, 30NDF

Analogue output
Headphones output (PHONES) :6.3-mm standard stereo jack
 Maximum output level:
45 mW + 45 mW or higher
(THD+N 0.1 % or less, 32 O load)

Other inputs and outputs
USB port: USB 2.0 A type
Protocol: USB 2.0 Hi Speed (480 Mbps)
Timecode input (TIME CODE IN): BNC
Signal voltage amplitude: 0.5-5 Vpp
Input impedance: 10 kO
 Format: SMPTE 12M-1999 compliant
Timecode output (TIME CODE OUT): BNC
Signal voltage amplitude: 2 Vpp
Output impedance: 600 O
Format: SMPTE 12M-1999 compliant
Word/video clock input (WORD/VIDEO IN): BNC
Signal voltage amplitude:
0.5-5 Vpp (WORD IN)
1 Vpp (VIDEO IN)
Input impedance: 75 O ±10% (termination resistance on)
Input frequency (WORD): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Input signal (VIDEO):
24/25/29.97/30-frame (NTSC/PAL black burst, HDTV tri-Level)
Word/video output/through (WORD/VIDEO THRU/OUT):
BNC (throughput for video signal only)
Signal voltage amplitude: 5V TTL equivalent
Output frequency (WORD): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Network connector (ETHERNET): RJ45
Compatible standards: 100BASE-TX, 1000BASE-T
RS-422 connector: 9-pin D-sub (female, inch-standard)
PARALLEL connector: 15-pin D-sub (female, inch-standard)

Power supply and other specifications
Power requirements: AC 100-240 V, 50/60 Hz
Power consumption: 21 W (with IF-MA64/EX installed)
Dimensions (width × height × depth): 483 mm × 45 mm × 305 mm
Weight:
DA-6400: 3.9 kg
DA-6400dp: 4.0 kg
(without I/O card or SSD/HDD case)
Operating temperature range: 0-40 °C

64-track Audio Recorder
