U4R
Xvive
₦ 235,249.00 VAT excl.

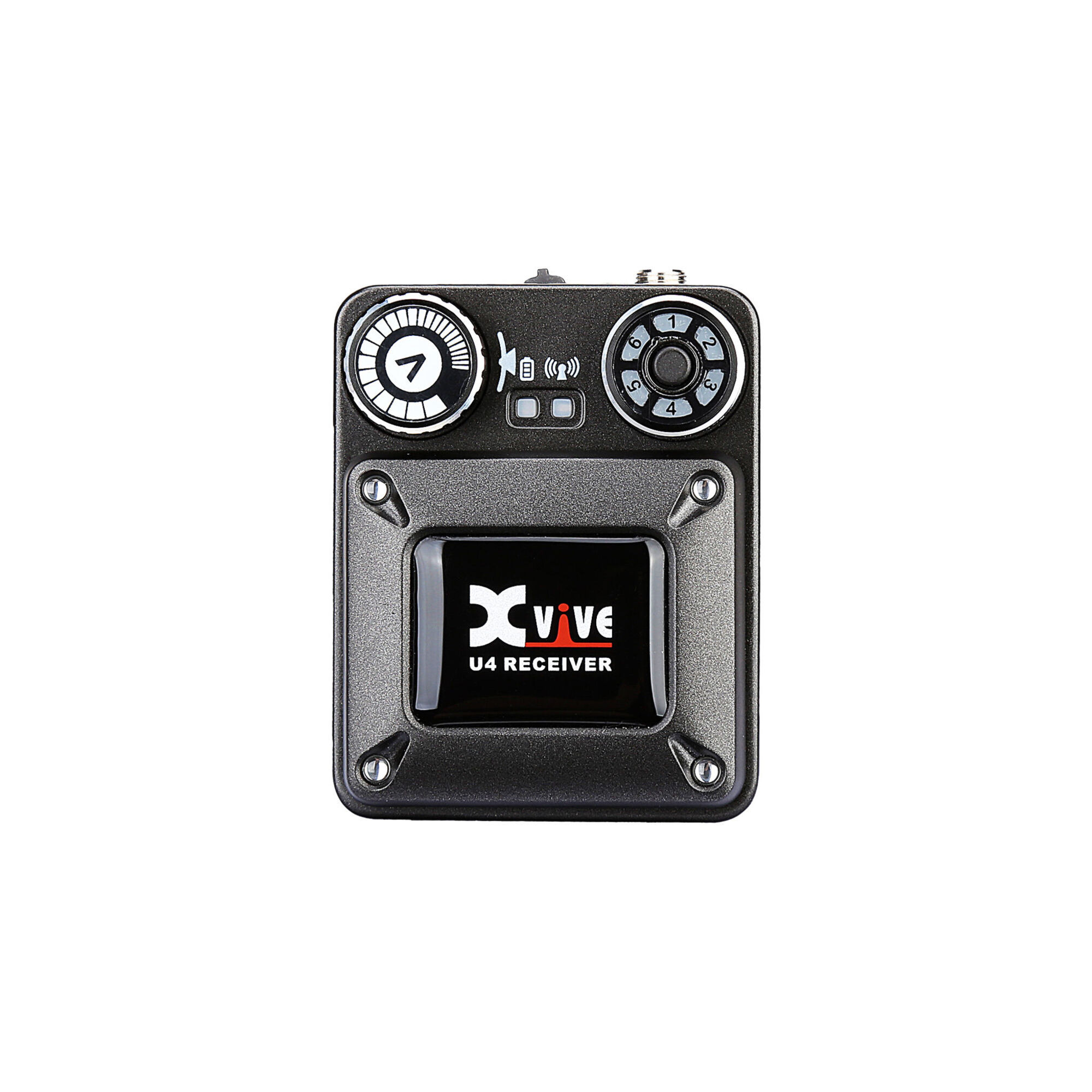

The U4R receiver features six selectable channels for creating individual discrete mixes and is equipped with an operation range of about 90'. Housed in a durable metal chassis, this bodypack receiver is built with a 3.5mm TRS mini headphone jack. It is powered by an internal lithium-ion battery that last up to 5 hours on a single charge. In addition, a single transmitter can send the signal to as many receivers as needed simultaneously onstage.
Multiple Receivers
Use a single transmitter (sold separately) to send the signal to multiple receivers creating a monitoring system for the entire band. You can send the signal from one transmitter to as many receivers as needed simultaneously. Set the receivers to the same channel as the transmitter.
Plug-and-Play
Easy to carry, easy to set up. Turn on the power to build your wireless in-ear monitor system
Headphone Drive
Provides smooth frequency response with any headphones
Download
Xvive Audio U4R Specs
Tuning Bandwidth 2400 to 2483.5 MHz
Working Range 90'' / 27.4 m
Actual Range Depends on RF Signal Absorption, Reflection, and Interference
Audio Frequency Response 20 Hz to 20 kHz (-3 dB)
High-Resolution Audio Format 24-Bit / 48 kb/s Audio
Dynamic Range 107 dB
Signal-to-Noise Ratio 107 dB
RF Sensitivity -88 dBm
Total Harmonic Distortion 0.2%
Channel Count Up to 6 Channels
RF Output Power 10 mW E.I.R.P. Max
Latency <5 ms
Housing Molded Plastic and Cast Metal
Battery Receiver: 3.7 V Rechargeable Li-Ion, 1200 mAh
Battery Life Up to 5 Hours
Audio Output Connector On Receiver: 1/8" / 3.5 mm Stereo Output
Antenna Impedance 50 Ohms
Antenna type 1/4" Wave Sleeve Dipole, Non-Removable
Number of Antennas 2 x Receiver
Operating Temperature Range 0 to 135°F / -18 to 57°C
Storage Temperature Room Temperature
Dimensions (L x W x H) Receiver: 1.9 x 1.6 x 2.4" / 4.7 x 4.1 x 6 cm
Weight Receiver: 4.2 oz / 118 g
Packaging Info
Package Weight 0.715 lb
Box Dimensions (LxWxH) 6.5 x 4.6 x 2.3"
