XSW IEM SET B

Name: XSW IEM SET B
Brand: Sennheiser
SKU: XSW IEM SET B
Price: 905716 NGN
Availability: OutOfStock

Sennheiser

Wireless Monitoring System (B: 572 to 596 MHz) - 509147

go to the technical sheet

₦ 905,716.00

₦ 842,526.78 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

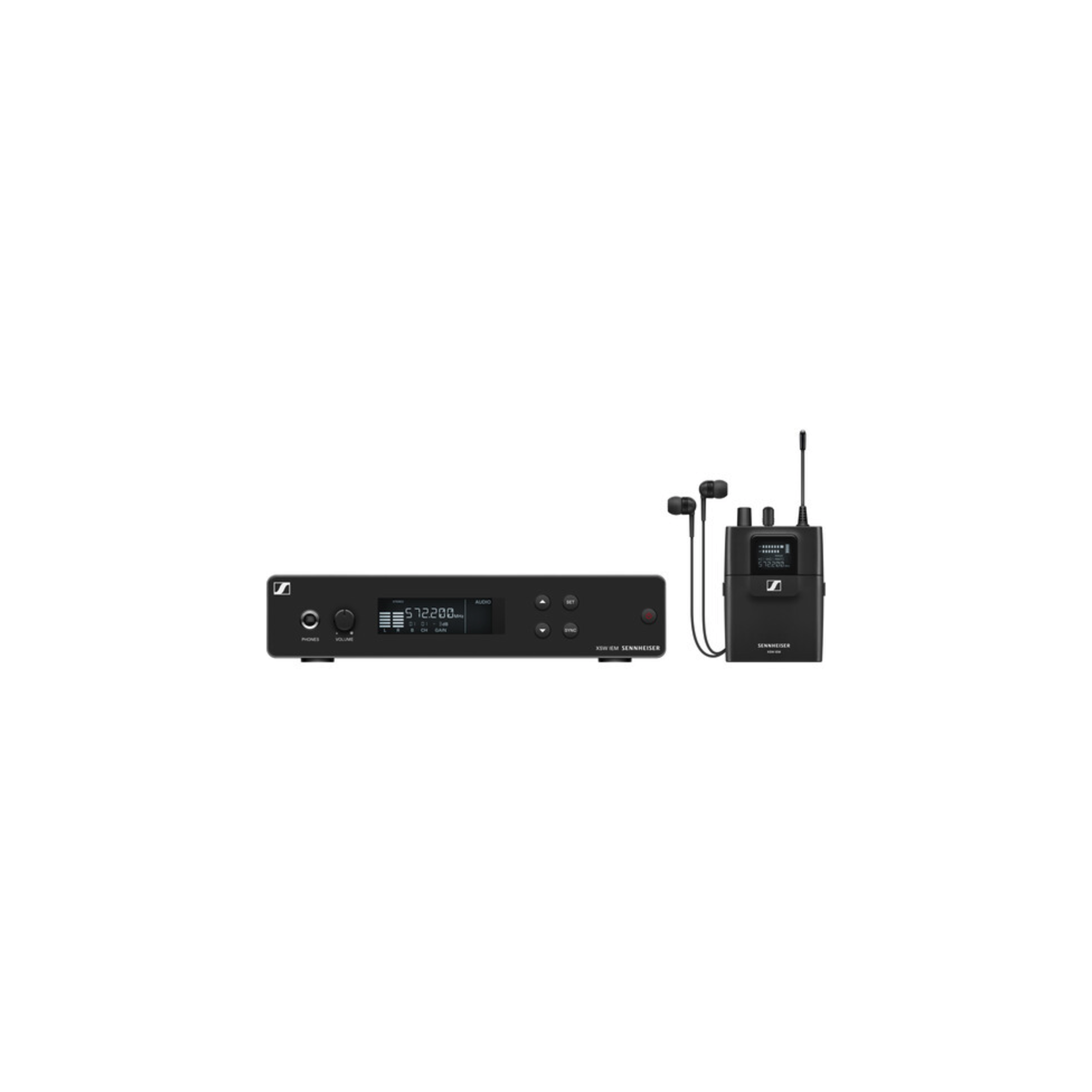

Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 to 596 MHz) - 509147

Hear yourself better, so you can perform better with the Sennheiser XSW IEM SET, a complete starter set for wireless in-ear monitoring aimed at musicians rehearsing or performing live on a club stage or in a house of worship.
It delivers the renowned Sennheiser sound and solid wireless reliability packaged into a convenient, entry-level system that's simple to use, right out of the box.
Create your own stereo mix with EQ, limiter, panning, and Focus mode and hear yourself clearly along with everyone else in the band, while moving freely on stage.

The all-in-one XSW IEM SET includes the XSW IEM SR stereo transmitter, XSW IEM EK stereo receiver, IE 4 in-ear headphones, external power supply, and a rackmount kit.
The system provides up to 6 hours of continuous use with two AA batteries in the receiver—at a range up to 330'.
The transmitter can send signal to as many receivers as you want (additional receivers available separately).
Up to 12 transmitters can operate simultaneously in the same frequency band.

- Complete starter set for in-ear monitoring
- Reliable, easy-to-manage wireless connection in the professional UHF range
- Full control over you personal mix with flexible Mono, Stereo, and Focus modes
- Advanced features like EQ and limiter
- 960 frequencies organized in 8 banks
- Easy frequency presets or detailed manual control
- Infrared sensor to easily sync multiple receivers to one transmitter
- LCD screens with clearly arranged menu
- Two combo XLR-1/4" jack inputs on transmitter
- Headphone jack on transmitter
- Detachable antena on transmitter
- 3.5mm jack output with adjustable volume on receiver
- Pair of IE 4 in-ear headphones
- Receiver operates up to 6 hours on 2 AA batteries
- Operate up to 12 transmitters simultaneously in the same frequency band
- Reliable transmission up to 300'
- Max 4 single transmitters stacked without a proper combiner
- Set includes rackmount kit, antenna, and external power supply

Transmitter
__________________
Frequency Band: B: 572 to 596 MHz
Wireless Technology: Analog, UHF
Modulation: FM Stereo
Transmitting RF Power: 30 mW
Number of RF Channels: 960
Switching Bandwidth: 24 MHz
Frequency Step Size: 25 kHz
Frequency Banks: 8 Banks with 12 Aligned and Precalculated Frequencies Each
Frequency Scanning-, Manual
Max Transmitters per Band-, 12
Max Operating Range: 330'' / 100 m (Line of Sight)
Nominal/Peak Deviation: ±15 kHz / ±24 kHz
Antenna Output: BNC Socket, 50 Ohms
Frequency Response: 45 Hz to 15 kHz
Inputs: L + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balance
Output: 1/4" / 6.3 mm TRS, Headphones Out
Total Harmonic Distortion (THD): <0.9%
Signal-to-Noise Ratio: greater than or equal to 88 dB, at Nominal Load and Peak Deviation
Power Input Rating: +12 VDC
Current Consumption: Approximately 400 mA
Housing: Metal
Temperature Range: 32 to 104°F / 0 to 40°C
Dimensions: Approximately 7.9 x 5 x 1.7" / 200 x 128 x 42 mm
Weight: Approximately 24.7 oz / 700 g

Receiver
__________________
Modulation: Wideband, Stereo FM
Frequency Band: A: 476 to 500 MHz
Switching Bandwidth: Up to 24 MHz
Sync Method: IR
Nominal/Peak Deviation: ±15 kHz / ±24 kHz
Squelch: 10 µV, Fixed
Signal-to-Noise Ratio: greater than or equal to 88 dB, 1 mV, Peak Deviation
Total Harmonic Distortion (THD): less than or equal to 1%
Output Level: 2 x 1.25 Veff at 16 Ohms
Equalization: High Boost EQ: +10 dB at 13 kHz
Limiter: -10 dB
Frequency Response: 45 Hz to 15 kHz
Crosstalk: Typically 45 dB (50 Hz to 10 kHz)
Power Supply: 2 x AA Batteries, 1.5 V
Nominal Voltage: 3 V
Housing: Plastic
Operating Time: Approximately 6 Hours, Depending on Volume Level
Temperature Range: 32 to 104°F / 0 to 40°C
Dimensions: 3.7 x 2.8 x 1" / 95 x 70 x 26 mm
Weight: 3.9 oz / 110 g, Including Batteries

Earphones
__________________
Transducer: Dynamic
Frequency Response: 40 Hz to 20 kHz
SPL: 106 dB, (1 kHz, 1 mW)
Nominal Impedance: 6 Ohms
Cable Length: 4.6'' / 1.4 m
Connector: 1/8" / 3.5 mm TRS, Stereo, Gold-Plated
Temperature Range: 23 to 122°F / -5 to 50°C

1x XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 to 596 MHz)
1x XSW IEM SR Stereo In-Ear Monitoring Wireless Transmitter (B: 572 to 596 MHz)
1x XSW IEM EK Stereo Bodypack Wireless Receiver with IE 4 Earphones (B: 572 to 596 MHz)
1x IE 4 In-Ear Stereo Earphones for Wireless Monitor Applications
1x XSW BNC Antenna
1x XSW Rackmount Kit
1x NT 12-5 CW Power Supply with AC Plug Adapters (US, UK, EU)
2x AA Batteries
