MGP32X

Name: MGP32X
Brand: Yamaha
SKU: MGP32X
Price: 2023.01 EUR
Availability: OutOfStock

Yamaha

32-Channel Analog Mixing Console with DSP Effects

go to the technical sheet

-2.5%

Save 2.5%

€ 2.023,01

€ 1.881,87 VAT excl.

€ 2.074,89

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

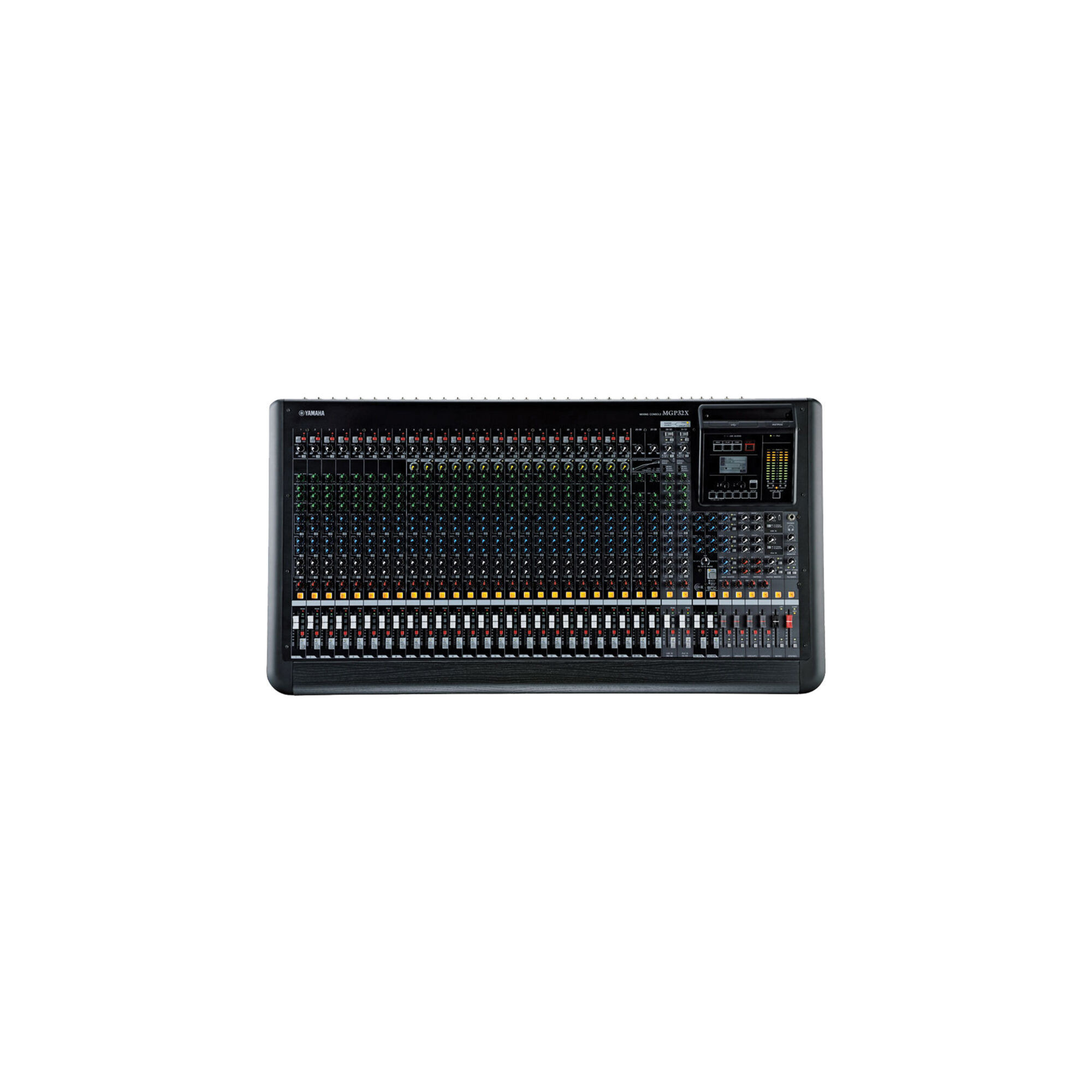

The MGP32X 32-Channel Analog Mixing Console with DSP Effects from Yamaha is a 32-track analog mixer with digital control and features 24 D-Pre microphone preamps, 32 line inputs, 6 auxiliary sends, and 2 effects sends. It is designed for use in live sound environments, including clubs and houses of worship.

Each channel has Yamaha's X-pressive 3-band equalizer and 1-Knob compressor, allowing channel-independent frequency and dynamic control. The MGP32X has an integrated DSP Hybrid Channel section that includes 3 types of reverb and 16 effects, as well as auto-ducker and auto-leveler functions that allow for hands-off monitoring of sources. The digital portion of the MGP32X also allows for iPhone and iPod touch control of a variety of parameters via the free MGP Editor app. You can also playback music from your iTunes catalog via the iOS input USB port, freeing up an analog input on the console. A second USB port allows you to record your live performance directly to external USB media, as either a stereo WAV or MP3 file.

Download

Manuale

Download (1.99MB)

Input / Output
Inputs 24x Mic level XLRs
24x Line level 1/4" (6.35 mm) TRS
4x Stereo line level 1/4" (6.35 mm) TRS
16x 1/4" (6.35 mm) TRS Inserts
1x 1/4" (6.35 mm) stereo Return
Input Sensitivity For Mono Inputs, Actual Source Impedance 3 kO:
Mic Level @ -60 dB: -80 dBu (0.078 mV), for 50-600 O Mics
Mic Level @ -16 dB: -36 dBu (12.3 mV), for 50-600 O Mics
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 O Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 O Lines

Stereo Channel Input, Actual Source Impedance 10 kO:
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 O Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 O Lines

Mono Channel Inserts, Actual Source Impedance 10 kO: -20 dBu (77.5 mV), for 600 O Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kO: -20 dBu (77.5 mV)

Talkback Input, Actual Source Impedance 10 kO: -66 dBu (0.389 mV), for 50-600 O Mics
Nominal Input Level For Mono Inputs, Actual Source Impedance 3 kO:
Mic Level @ -60 dB: -60 dBu (0.775 mV), for 50-600 O Mics
Mic Level @ -16 dB: 16 dBu (123 mV), for 50-600 O Mics
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 O Lines
Line Level @ 10 dB: +10 dBu (2.45 V), for 600 O Lines

Stereo Channel Input, Actual Source Impedance 10 kO:
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 O Lines
Line Level @ 10 dB: 10 dBu (2.45 V), for 600 O Lines

Mono Channel Inserts, Actual Source Impedance 10 kO: 0 dBu (0.775 V), for 600 O Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kO: 0 dBu (0.775 V), for 600 O Lines

Talkback Input, Actual Source Impedance 10 kO: -50 dBu (2.45 mV), for 50-600 O Mics
Maximum Input Level For Mono Inputs, Actual Source Impedance 3 kO:
Mic Level @ -60 dB: -40 dBu (7.75 mV), for 50-600 O Mics
Mic Level @ -16 dB: 4 dBu (1.23 V), for 50-600 O Mics
Line Level @ -34 dB: -14 dBu (155 mV), for 600 O Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 O Lines

Stereo Channel Input, Actual Source Impedance 10 kO:
Line Level @ -34 dB: -14 dBu (155 mV), for 600 O Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 O Lines

Mono Channel Inserts, Actual Source Impedance 10 kO: 20 dBu (7.75 V), for 600 O Lines

Stereo Channel Insert Input L,R, Actual Source Impedance 10 kO: 20 dBu (7.75 V), for 600 O Lines

Talkback Input, Actual Source Impedance 10 kO: -30 dBu (24.5 mV), for 50-600 O Mics
Outputs 1x XLR Stereo out (L,R)
6x XLR auxiliary sends
24x 1/4" (6.35 mm) Channel insert outputs
1x 1/4" (6.35 mm) Monitor out (L,R)
4x 1/4" (6.35 mm) Group out
1x 1/8" (3.5 mm) headphones out
1x 1/4" (6.35 mm) Stereo insert (L,R)
2x 1/4" (6.35 mm) Matrix outs
1x XLR Mono out
Nominal Output Level Stereo Out (L,R): 4 dBu (1.23 V) @ 75 O (for use with nominal 600 O lines)
Mono Out: 4 dBu (1.23 V) @ 75 O (for use with nominal 600 O lines)
Group Out (1 to 4): 4 dBu (1.23 V) @ 150 O (for use with nominal 10 kO lines)
Aux Send (1 to 6): 4 dBu (1.23 V) @ 75 O (for use with nominal 600 O lines)
Matrix Out (1,2): 4 dBu (1.23 V) @ 150 O (for use with nominal 10 kO lines)
Mono Channel Insert Out (1 to 16): 0 dBu (0.775 V) @ 75 O (for use with nominal 10 kO lines)
Stereo Channel Insert Out (L,R): 0 dBu (0.775 V) @ 75 O (for use with nominal 10 kO lines)
Monitor Out (L,R): 4 dBu (1.23 V) @ 150 O (for use with nominal 10 kO lines)
Phones Out: 3mW @ 150 O (for use with nominal 40 O phones)
Maximum Output Level Stereo Out (L,R): 24 dBu (12.3 V) @ 75 O (for use with nominal 600 O lines)
Mono Out: 24 dBu (12.3 V) @ 75 O (for use with nominal 600 O lines)
Group Out (1 to 4): 20 dBu (7.75 V) @ 150 O (for use with nominal 10 kO lines)
Aux Send (1 to 6): 24 dBu (12.3 V) @ 75 O (for use with nominal 600 O lines)
Matrix Out (1,2): 20 dBu (7.75 V) @ 150 O (for use with nominal 10 kO lines)
Mono Channel Insert Out (1 to 16): 20 dBu (7.75 V) @ 75 O (for use with nominal 10 kO lines)
Stereo Channel Insert Out (L,R): 20 dBu (7.75 V) @ 75 O (for use with nominal 10 kO lines)
Monitor Out (L,R): 20 dBu (7.75 V) @ 150 O (for use with nominal 10 kO lines)
Phones Out: 75 mW @ 150 O (for use with nominal 40 O phones)
General
Total Harmonic Distortion 0.02% (20 Hz to 20 kHz, 14 dBu)
Frequency Response 20 Hz to 20 kHz, +0.5/-1.0 dB, refer to the nominal output level @ 1 kHz
Crosstalk -74 dB @ 1 kHz
Power Supply 100 to 240 V, 50/60 Hz
Power Consumption 86 W, maximum
Dimensions (W x H x D) 40.4 x 6.7 x 22.2" (1027 x 169 x 565 mm)
Weight 41.9 lb (19 kg)
Packaging Info
Package Weight 58.6 lb
Box Dimensions (LxWxH) 45.0 x 27.2 x 10.0"
