MY16AE

Name: MY16AE
Brand: Yamaha
SKU: MY16AE
Price: 1618498 NGN
Availability: OutOfStock

Yamaha

16-Channel AES/EBU Expansion Card for Digital Mixers

go to the technical sheet

₦ 1,618,498.00

₦ 1,505,579.21 VAT excl.

Available in 15 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

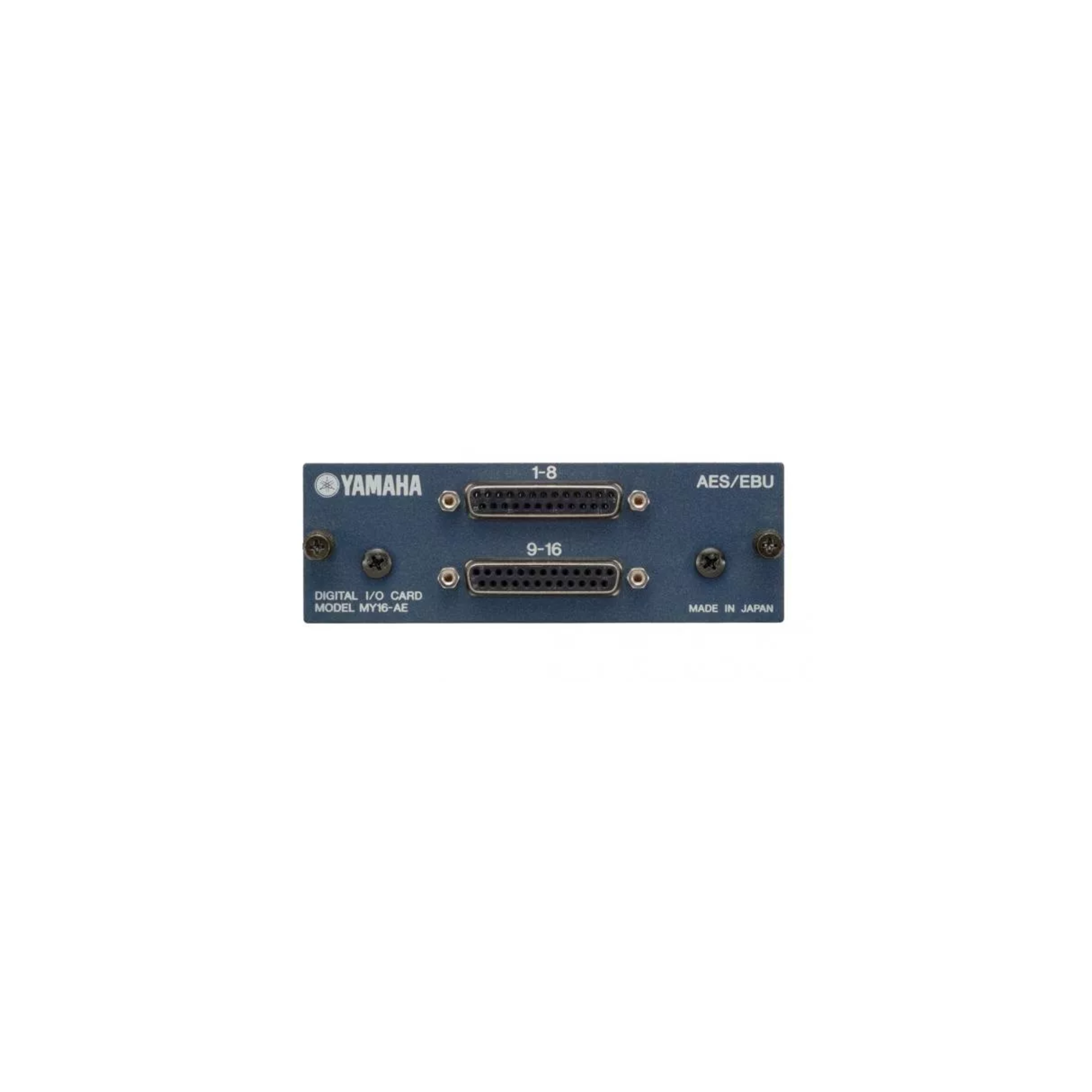

Yamaha 16-Channel AES/EBU Expansion Card for Digital Mixers

The MY16AE Mini-YGDAI Digital I/O can be used with Yamaha DM2000, 02R96, DM1000 and future digital consoles to provide up to 16 simultaneous channels of AES/EBU (25-pin D-sub) I/O via a single expansion slot.
All 16 channels can be used independently at sampling rates up to 48 kHz, or it can be used for a "dual channel" connection to 96-kHz recorders providing 8 channels of I/O at 88.2 or 96 kHz.
While the DM2000, DM1000, and 02R96 handle 96-kHz audio as standard, most digital recorders currently available can only handle 96-kHz audio in "dual channel" mode (using 2 tracks to make one).
In this configuration, the DM2000, DM1000, and 02R96 use one channel for a 96 kHz track, but you have to use twice as many I/O connections.

I/O: Input x 16, Output x 16
Format: AES/EBU
Connectors: D-sub 25 pin x 2
Resolution: 24 bit
Sampling rate: 44.1, 48-kHz (88.2, 96-kHz)
I/O per card: 16ch (8ch)
6 slots (DM2000): 96ch (48ch)
4 slots (02R96). 64ch* (32ch)
2 slots (DM1000): 32ch (16ch)
NOTE*: 02R96 has 56 channels of mixing
