EXI8

Name: EXI8
Brand: Yamaha
SKU: EXI8
Price: 2790134 NGN
Availability: OutOfStock

Yamaha

8-channel input expander via YDIF

go to the technical sheet

₦ 2,790,134.00

₦ 2,595,473.44 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

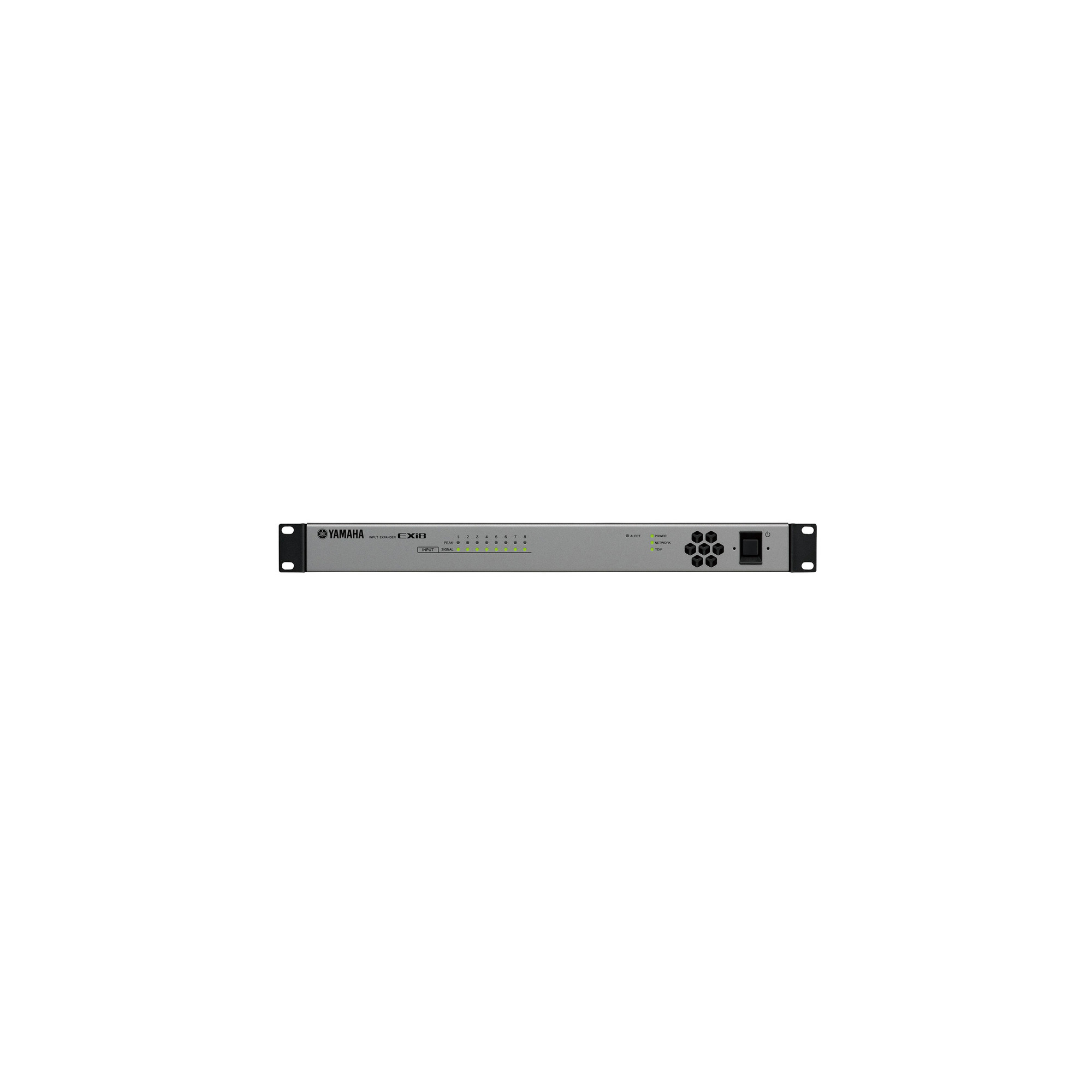

Yamaha 8-channel input expander via YDIF

Input expansion module via YDIF for MTX series processors, A/D audio conversion unit for 8 input signals with 8 mic/line inputs with Euroblock connector.
Connection to MTX processor via 2 RJ45 YDIF I/O interfaces (Yamaha digital transmission protocol transmission of up to 16 audio channels and word clock on Cat cable), possibility of control from MTX via Ethernet cable.

Max No. of Inputs Processed: 8
Max No. of Processed Outputs: 8
IN/OUT signals:
- Analog
- Proprietary digital
Expandability:
- Owner bus
- Analog
Remote Control:
- Proprietary APP
- Customizable software interfaces
- Control Panels
- LAN protocol
- RS-232 protocol
Dimensions: 480x44x362 (19 1U)
Weight: 4.3 Kg
