ACP1
RVR

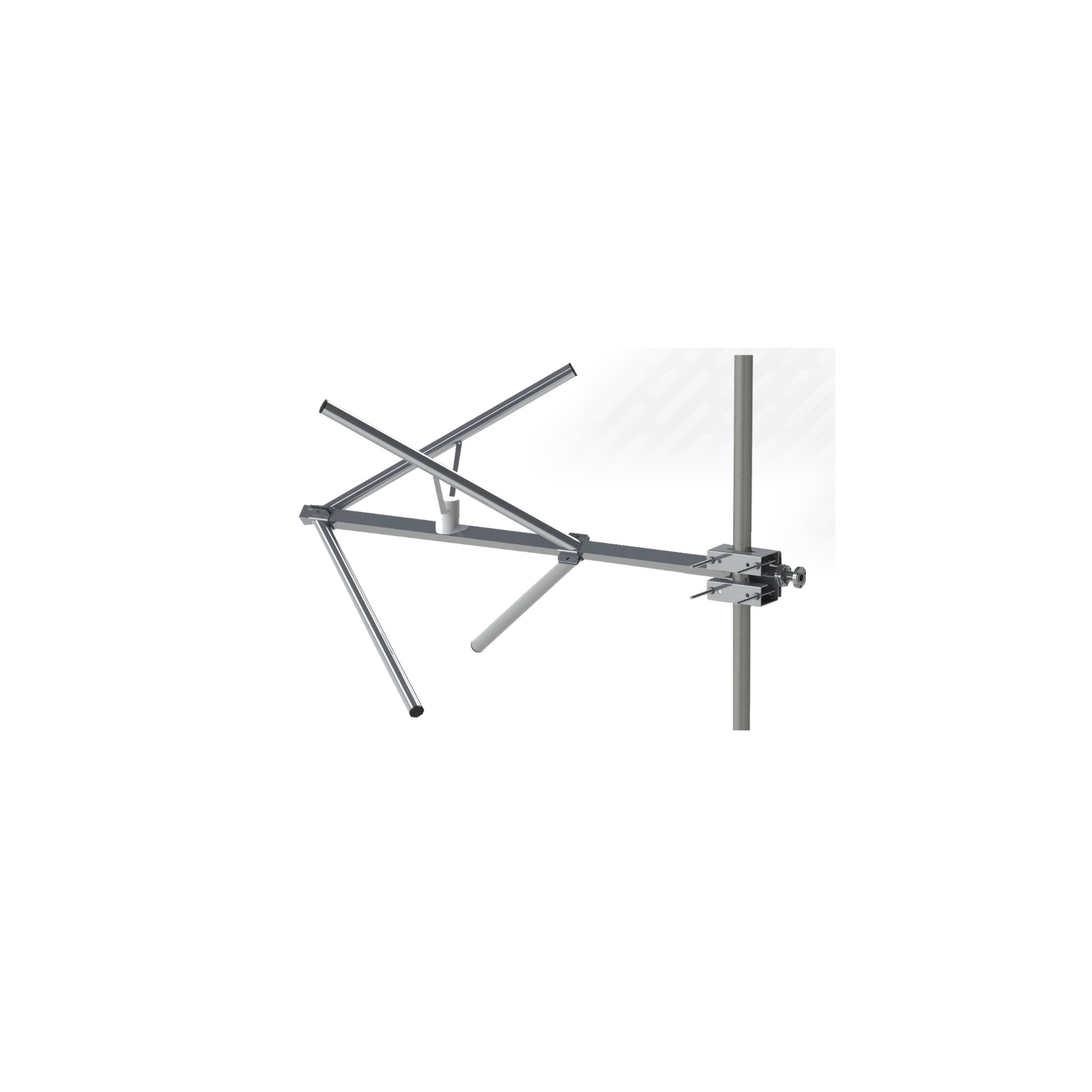

Stainless Steel Circular Broadband Antenna max 800W
go to the technical sheet
Manufacturer: go to website
RVR Stainless Steel Dipole circular Broadband Antenna, N type connector, maximum power 800W standard band 87.5 - 108 MHz
° Band II
° Broadband 87.5÷108 MHz
° Demountable
° Circular polarization
° Stainless steel AISI 304
° Pressurizzable on request
° Band II
° Broadband 87.5÷108 MHz
° Demountable
° Circular polarization
° Stainless steel AISI 304
° Pressurizzable on request
ELECTRICAL DATA
Frequency range : 87.5÷108 MHz
Impedance : 50 Ohm
Connectors : N or 7/16” female or 7/8” EIA
Max Power : 800W (N) – 2KW (7/16”) 3KW (7/8” EIA)
VSWR : 1.4:1
Polarization : Circular
Gain : Refer to table
Pattern :
° Omni directional ±1.5 dB in free space
° Omni directional ±3 dB with 100mm dia. Pole
Lightning protection : All metal parts DC grounded
MECHANICAL DATA
Dimensions : 1560 x 1150 x 1150 mm
Weight : 13 kg
Wind surface : 0.19 m2 (side) 0.13 m2 (front)
Wind load : 31.1 kg (side – wind speed at 160 km/h)
Max wind velocity : 220 km/h.
Materials External parts : Stainless Steel
Internal parts : alluminium treated
Mounting : With special pipe clamps 50¸110 mm dia.
1x Stainless Steel Antenna
