AJ1FENI

ELECTRICAL DATA
Frequency range : 87.5÷108 MHz
Impedance : 50 Ohm
Connectors : N (AJ1FENI) – 7/16 female (AJFENI6) – 7/8” EIA (AJ1FENI7)
Max Power : 800W (N) – 2KW (7/16” – 7/8” EIA)
VSWR : 1.35:1 Average
Polarization : Vertical
Gain : 2 dB (referred to half-wave dipole) at 98 MHz
Pattern :
° Omni directional ±1.5 dB in free space
° Omni directional ±3 dB with 100mm diameter pole
Lightning protection : All metal parts DC grounded

MECHANICAL DATA
Dimensions : 1400 x 900 x 50 mm
Weight : 6 kg with hardware mounting
Wind surface : 0.10 m2
Wind load : 15 kg (wind speed at 160 km/h – without radome)
Max wind velocity : 220 km/h.
Materials External parts : Stainless Steel
Internal parts : brass
Radome : fiberglass (optional)
Icing protection : Feed point radome (optional)
Radome (optional) Color : white
Mounting : With special pipe clamps 40¸110 mm diameter

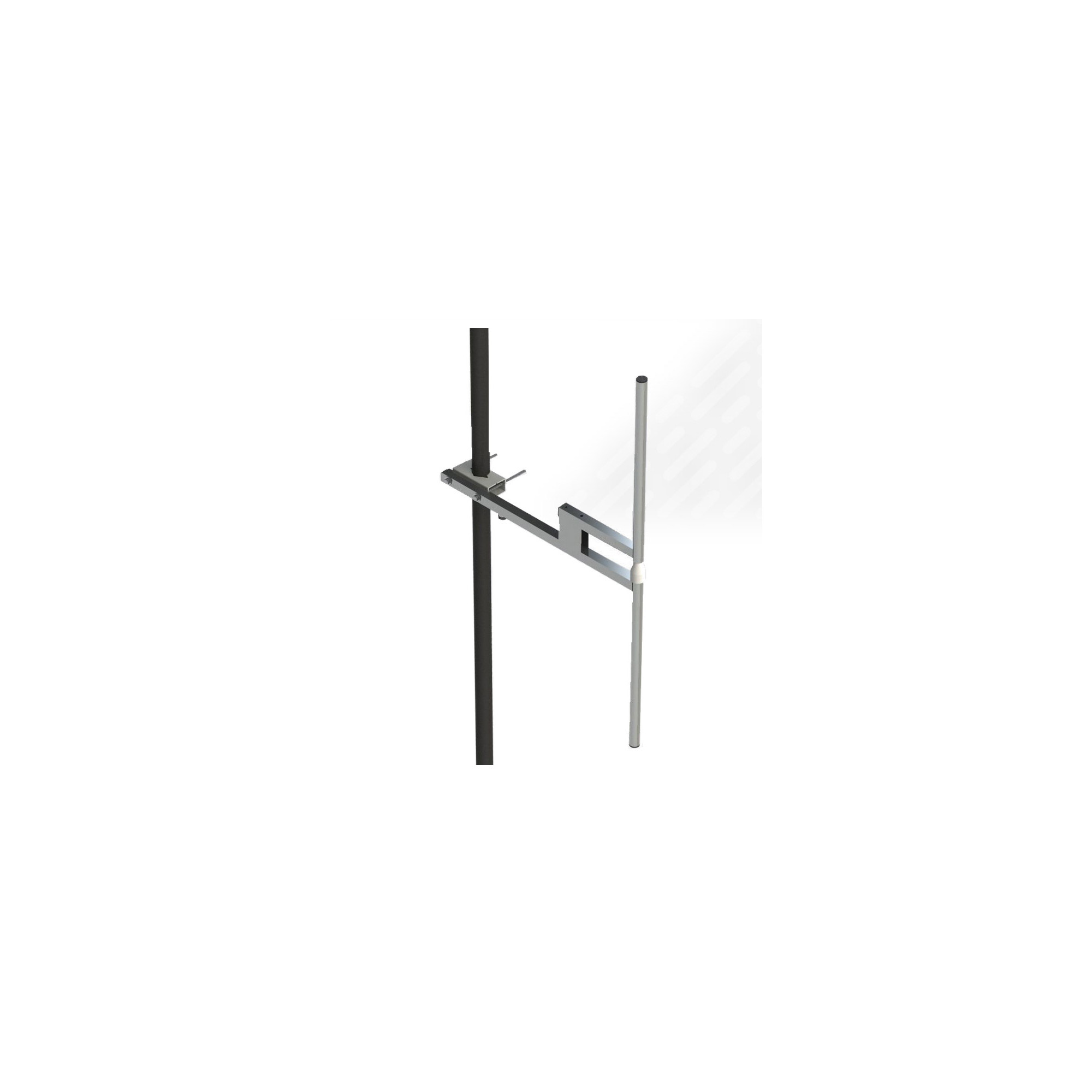

1x Stainless Steel Dipole
