DJI Dock 2 No Warranty
Dji
₦ 11,315,799.00 VAT excl.

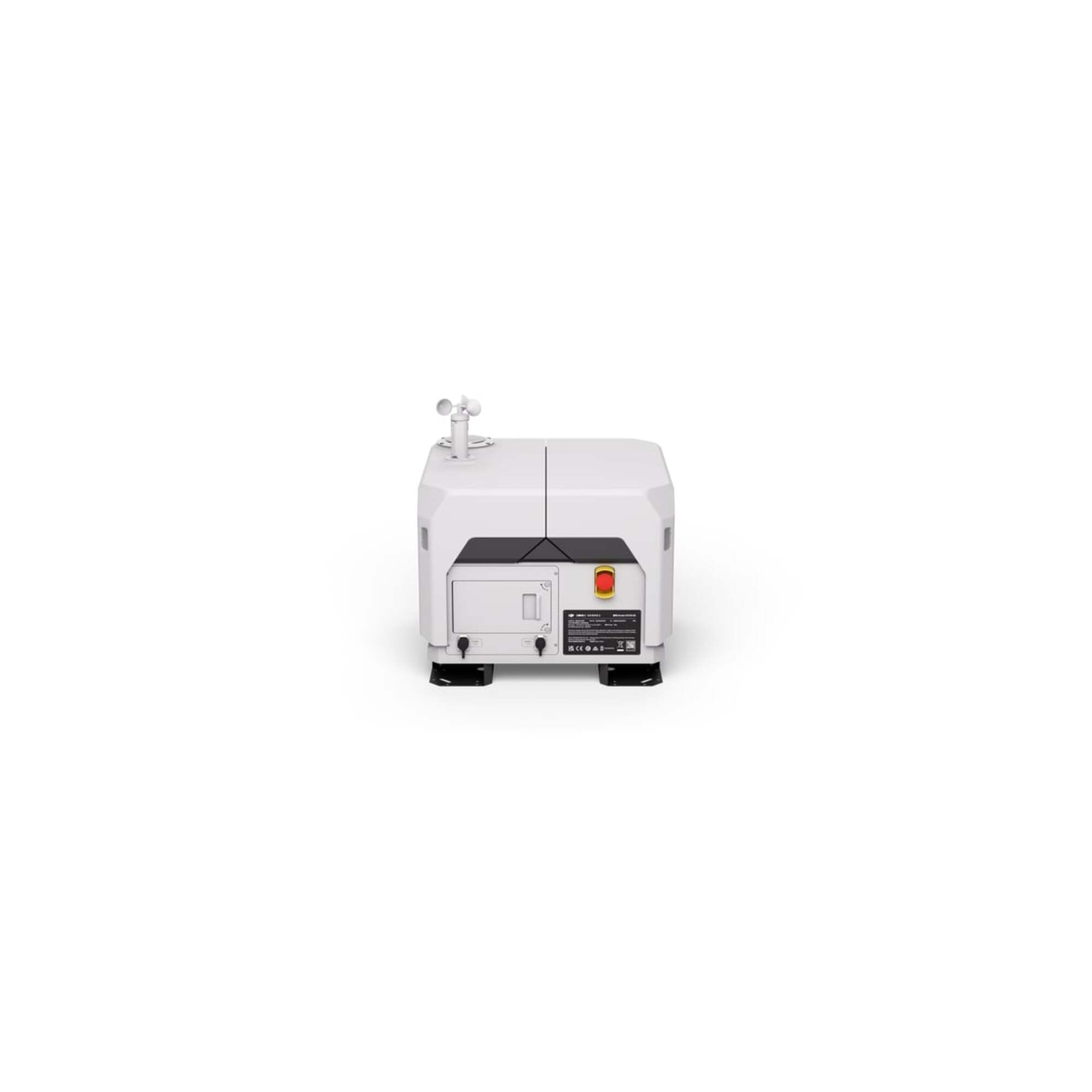

DJI Dock 2, more powerful but significantly smaller, can deploy 3D Matrice or 3TD drones with ease and safety.
Dock 2 is lightweight, offers high-level operational capabilities and has intelligent cloud-based functions that ensure efficiency and quality of automatic operations.
Before deployment, the aircraft can detect its surroundings using vision sensors and quickly determine whether the area has strong GNSS signals.
This new vision-based assessment dramatically accelerates site selection, reducing the time required from 5 hours to 12 minutes or less.
DJI Dock 2 integrates several sensors, including rain sensors, wind speed sensors and temperature indicators, to perceive weather changes in real time.
Combined with online weather forecast, it can provide timely warnings or terminate flight activities using DJI FlightHub 2, to effectively reduce flight risk.
° Built-in backup battery
Thanks to the built-in backup battery, in the event of an unexpected power failure, DJI Dock 2 can continue to operate independently for more than 5 hours, providing the aircraft with sufficient time to land.
° Maintenance interval of 6 months
Thanks to its high level of protection and reliability, DJI Dock 2 requires only one maintenance approximately every 6 months, effectively controlling human resource costs.
° Notifications on abnormal conditions
If DJI Dock 2 and the aircraft encounter any errors or emergencies in their activities, DJI FlightHub 2 will immediately send email notifications.
This will allow operators to accurately track and resolve issues based on the information provided.
° Quick take-off
DJI Dock 2 integrates dual RTK antennas, which allow the aircraft to obtain precise RTH position information, without having to wait for RTK data to converge.
It can also perform a complete inspection of the propellers and take off in just about 45 seconds to quickly enter the operational state.
° Fast charging
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes, for hyper-efficient powering for consecutive operations.
° Dual camera monitoring
DJI Dock 2 features an internal and external fisheye camera for real-time viewing.
Tight monitoring inside and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances and aircraft takeoff and landing.
Total weight: 34kg (excluding aircraft) [Actual product weight may vary due to differences in materials of different batches and external factors.]
Dimensions:
Dock cover open: 1228 × 583 × 412 mm (L×W×H)
[The above data does not include the height of the wind speed indicator (145mm) but includes the height of the mounting base brackets (55mm).*Dock cover closed: 570 × 583 × 465mm ( L×W×H)]
Input voltage: 100-240 V (AC), 50/60 Hz
Input Power: Max. 1000W
Operating temperature: Between -25° and 45°c [When the ambient temperature is below -20°C (-4°F), the dock is in standby state and the aircraft cannot perform flight activities.]
Ingress protection level: IP55
Number of drones welcomed: 1
Max. speed supported wind speed at landing: 8 m/s
Max. operating altitude: 4000 m
Simultaneous reception:
- GPS: L1 C/A, L2
- BeiDou2: B1l, B2l, B3l
- BeiDou3: B1l, B3l
- GLONASS: L1, L2
- Galileo: E1, E5B
RTK Base Station Positioning Accuracy: Horizontal: 1cm + 1ppm (RMS) | Vertical: 2cm + 1ppm (RMS)
