MIMO Panel Antenna
Hollyland
6970758740210
Panel antenna without hard case, and without battery plate
package- black
go to the technical sheet
package- black
₦ 561,901.00
₦ 522,699.00 VAT excl.

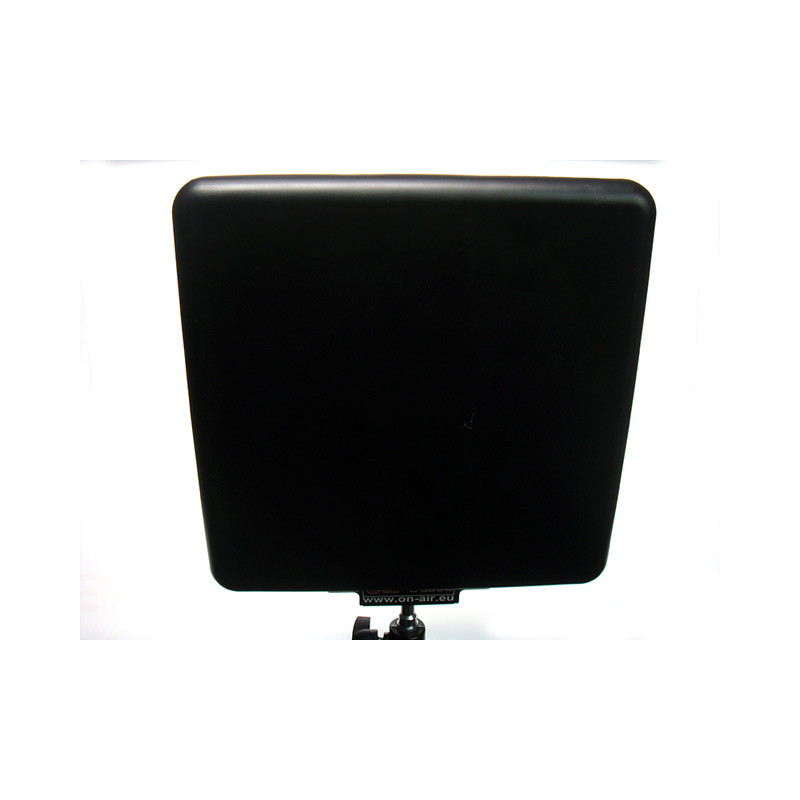

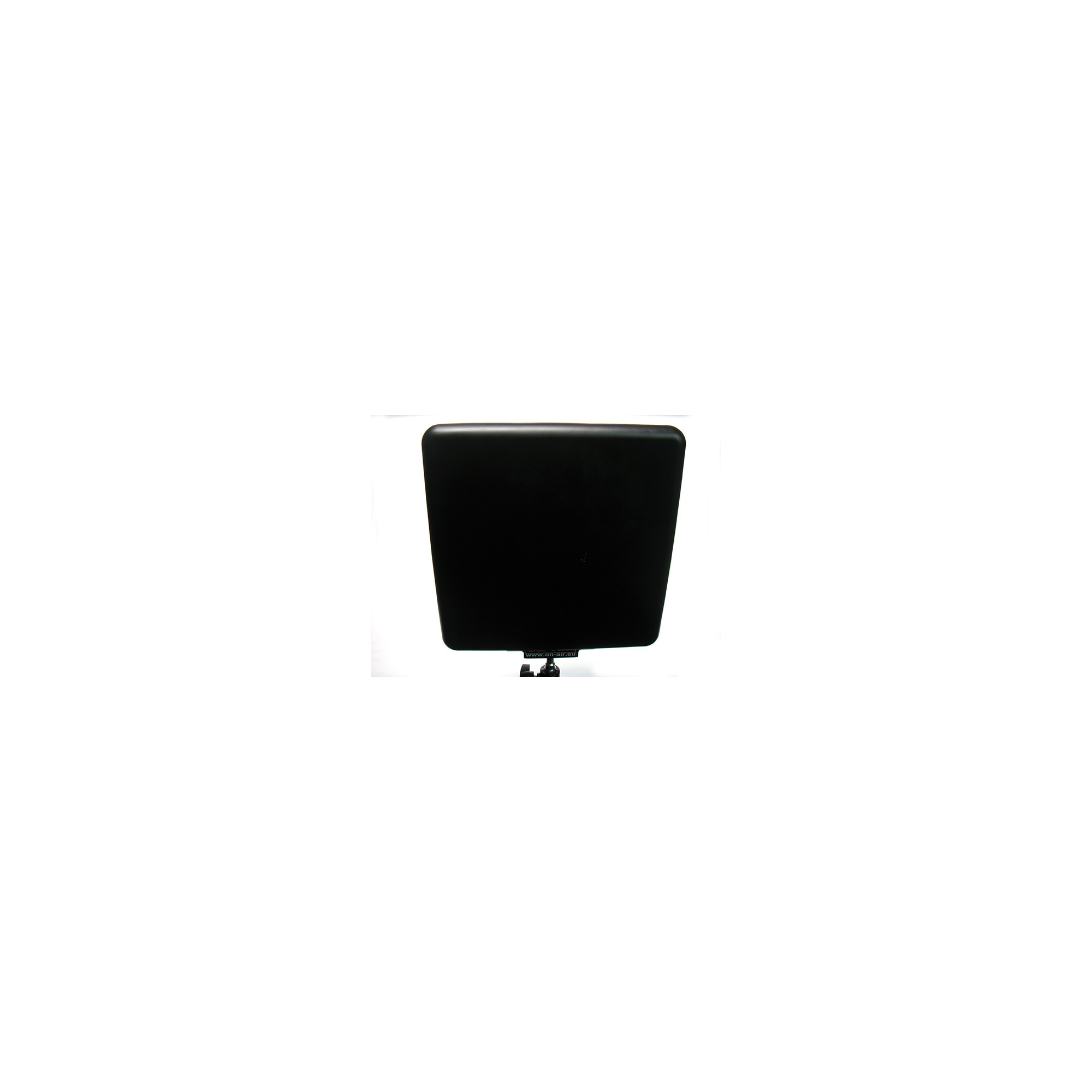

MIMO panel directive antenna for WHDI wireless video systems, extends the reach of the radio signal and reduces interference focusing the receiver towards the transmitter.
Operating Frequency 5.0-5.9 GHz, a single panel Incorporates 5x14dBi gain antennas, 5 cables N to SMA-M are included in the package.
A mounting hole 3/8 " compatible allow installation on stand for lights, camera tripod, magic arm or other photographic accessories.
Version for receivers without battery holder plates.
Operating Frequency 5.0-5.9 GHz, a single panel Incorporates 5x14dBi gain antennas, 5 cables N to SMA-M are included in the package.
A mounting hole 3/8 " compatible allow installation on stand for lights, camera tripod, magic arm or other photographic accessories.
Version for receivers without battery holder plates.
Highlight
Frequency Range: 5.0-5.9 Ghz
Gain: 14+/-0.5dBi
F/B Ratio: >25dB
Isolation: >26dB
Horizontal Beamwidth: 40+/-5° (90°)
Vertical Beamwidth: 40+/-5° (45°)
V.S.W.R. (ROS): <2.0
Polarization: 3 ports vertical, 2 ports +/-45°
Maximum Input Power: 100W
Impedance: 50 Ohm
Connector: 5 type N (N to SMA-M cables supply)
Mount Way: 3/8" hole for photographic screw
Sizes: 310x310x40mm (LxWxH)
1x Panel Antenna
