Bolt 6 XT MAX Set V-Mount
Teradek
- New
₦ 29,005,741.60 VAT excl.
- Bolt 6 XT MAX Transmitter
- Bolt 6 XT 10K Receiver
- 10,000' Transmission Range
- Supports up to 4K60 10-Bit 4:2:2 HDR
- Built-In V-Mount Battery Plate
- 6 GHz Frequency Band
- Integrated Directional Panel Antenna

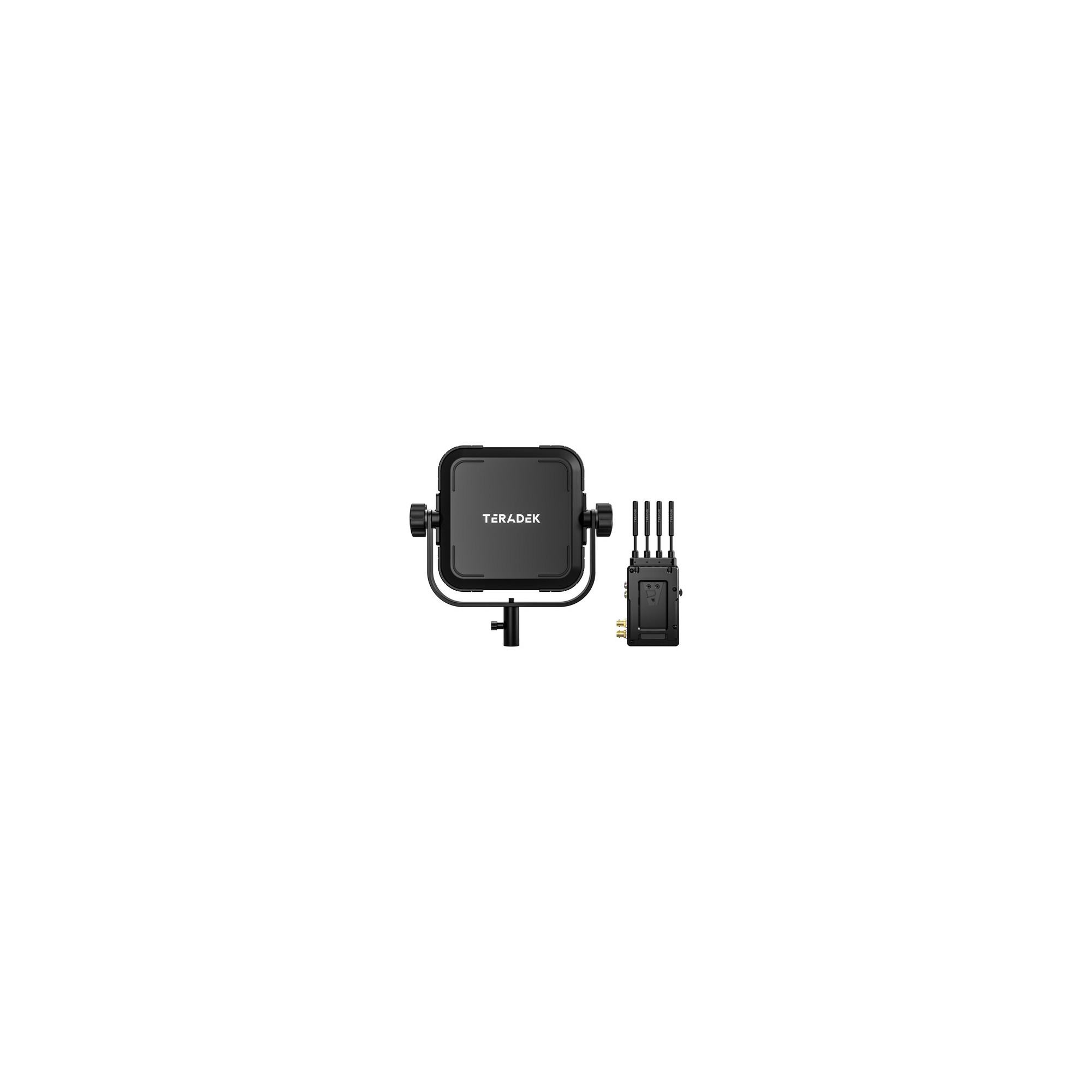

The Bolt 6 XT MAX Set with 10K RX from Teradek is a long-range, zero-delay video transmission system that bundles the Bolt 6 XT MAX transmitter with the Bolt 6 XT 10K receiver, achieving a wireless range of up to 10,000' using a 6 GHz frequency band.
Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)
Transmit lossless HD video up to 5000' with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter from Teradek.
With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, it features a V-mount battery plate, and this new line supports the 6 GHz wireless band, which is now freely available.
It also features a 50% quieter operation with its redesigned cooling system.
The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight using its integrated flexible H antennas.
It features a bright OLED display, and a 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.
Bolt 6 XT 10K RX (V-Mount)
The Bolt 6 XT 10K RX from Teradek is a long-range, zero-delay video receiver with a wireless range of up to 10,000' designed to seamlessly integrate with existing Bolt 4K or Bolt 6 systems.
Equipped with one HDMI and two 12G-SDI outputs, the Bolt 6 XT delivers visually lossless 4K60, 10-bit, 4:2:2 video with HDR support.
Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)
Inputs/Outputs
Antenna I/O: 2x RP-SMA Female
Video I/O:
- 1 x HDMI 2.0 Input
- 1 x BNC (12G-SDI) Input
- 1 x BNC (12G-SDI) Loop Output
Embedded Audio: HDMI: 2-Channel | SDI
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O:
- 1x USB-C Input
- 1x LEMO 5-Pin 2.0 Output
Encryption: Yes: 256-Bit AES
Wireless
Wireless Range: 5000'' / 1524 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Bluetooth: Yes
Power
Input Power: 6 to 28 VDC
Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 20W
Mounting
Tripod/Accessory Mounting: 1x 1/4"-20 Female
General
Operating Conditions: 32 to 72°F / 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm (Excluding Battery Plate)
Weight: 12.13 oz / 344.00 g, Excluding Battery Plate
Bolt 6 XT 10K RX (V-Mount)
Inputs/Outputs
Antenna I/O: 1x F-Type
Video I/O:
- 2 x BNC (12G-SDI) Output
- 1 x HDMI 2.0 Output
Wireless
Wireless Range: 10,000'' / 3 km (Without Quality Loss)
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt Manager
Functionality: Adjust Settings, Setup
Format Support
Video Format:
HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
Power
Input Power: 14 to 26 VDC
Battery: 1x V-Mount on Fixed Plate
1x Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)
1x V-Mount Battery Plate
1x 2-Pin Power Cable (18")
1x USB Type-A to USB Type-C Cable (3'')
1x Ultrathin USB Type-A to HDMI Type-A Cable (18")
1x AC Adapter with Cable (6'')
2x Standard Antenna
2x Mushroom Antenna
2x Battery Cover
2x Screw
1x Bolt 6 XT 10K RX (V-Mount)
