CineView Master 4K Receiver
Accsoon
0607609770183
Wireless AV receiver,4K 60 fps,less than 25 ms latency,Tri-Band+DFS technology
go to the technical sheet
₦ 843,121.43
₦ 784,299.00 VAT excl.

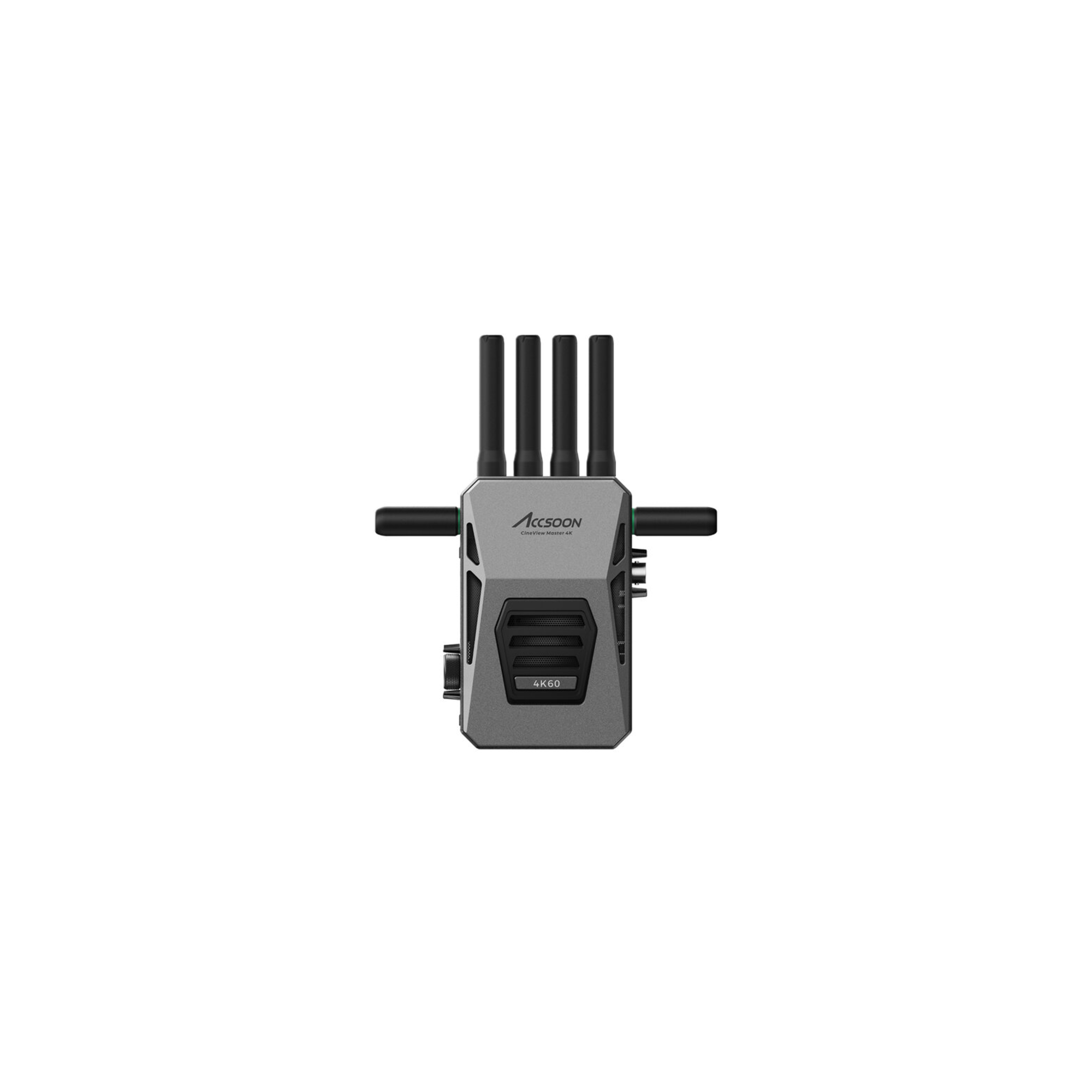

Accsoon CineView Master 4K Receiver - Wireless AV receiver, 4K 60 fps, less than 25 ms latency, Tri-Band + DFS technology
AV receiver from Accsoon's new flagship CineView Master 4K wireless system, delivering 4K video quality at 60 fps for smooth, crisp on-site monitoring.
Uses 2.4, 5 and 6 GHz Tri-Band transmission technology to ensure a stable and robust connection with a latency of just 25 ms from input to output.
Based on Accsoon's proprietary RTMS 4.0 protocol, this technology enables intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency and the ability to easily handle multiple connections.
Accsoon developed its proprietary RTMS 4.0 protocol to work with the new 8K-capable high-performance A/V processor.
Together, the protocol and processor represent a remarkable 400% increase in processing capabilities.
The CineView Master 4K design features clean lines, a modern design, and is built to withstand heavy production use.
It is also optimized for heat dissipation with the ability to reduce fan speed or even turn it off for critical audio scenarios.
Finally, it can be powered via NP-F batteries or a 12 VDC connector.
In terms of connections, it offers 3G SDI output, HDMI 2.0 up to 4K 60 fps, and HDMI 2.0 output.
AV receiver from Accsoon's new flagship CineView Master 4K wireless system, delivering 4K video quality at 60 fps for smooth, crisp on-site monitoring.
Uses 2.4, 5 and 6 GHz Tri-Band transmission technology to ensure a stable and robust connection with a latency of just 25 ms from input to output.
Based on Accsoon's proprietary RTMS 4.0 protocol, this technology enables intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency and the ability to easily handle multiple connections.
Accsoon developed its proprietary RTMS 4.0 protocol to work with the new 8K-capable high-performance A/V processor.
Together, the protocol and processor represent a remarkable 400% increase in processing capabilities.
The CineView Master 4K design features clean lines, a modern design, and is built to withstand heavy production use.
It is also optimized for heat dissipation with the ability to reduce fan speed or even turn it off for critical audio scenarios.
Finally, it can be powered via NP-F batteries or a 12 VDC connector.
In terms of connections, it offers 3G SDI output, HDMI 2.0 up to 4K 60 fps, and HDMI 2.0 output.
8K high performance A/V processor
Protocol: proprietary RTMS 4.0 protocol developed by Accsoon
Video output: HDMI, 3G SDI
SDI output formats: 1080p @ 24 / 25 / 30 / 50 / 60 fps Level A
HDMI output formats: 4K (3840 x 2160) @ 24 / 25 / 30 / 50 / 60 fps, 1080p @ 24 / 25 / 30 / 50 / 60 fps
Audio: HDMI embedded, SDI embedded
Latency: 1080p 60 fps< 25 ms, 4K 60 fps<35 ms (camera latency not included)
Battery: NP-F550, NP-F750, NP-F970
DC port: 5.5 x 2.1 mm, center positive
DC voltage: 7.4 - 16.8 V
Transmission range: greater than or equal to 2.5 km (no obstacles, no interference)
Power consumption: 5 W average
Operating environment temperature: -10 to 40°C
Dimensions: 130 x 95 x 32 mm (without antennas)
Weight: 320 g (without antennas)
