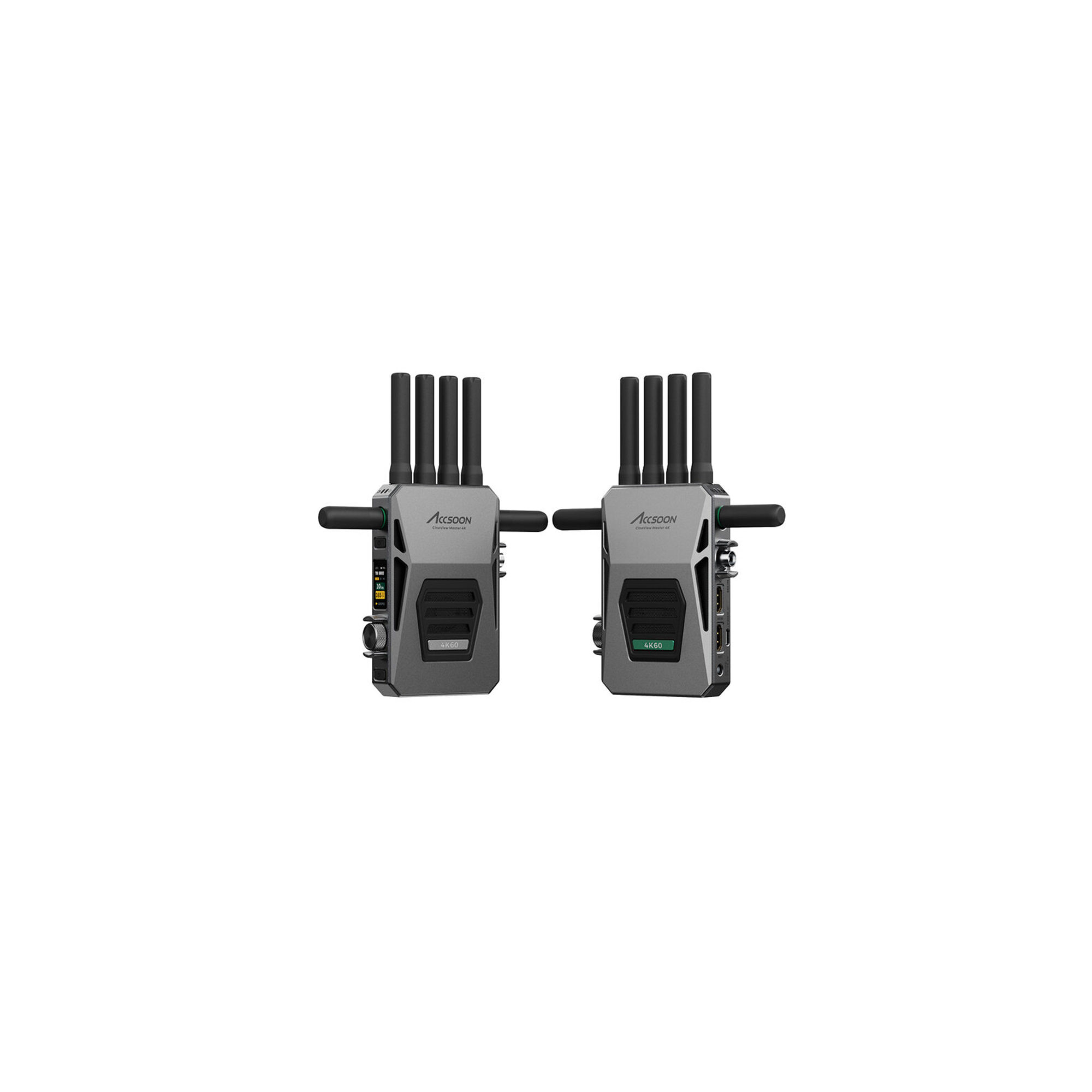

CineView Master 4K TX+RX

Accsoon CineView Master 4K (1 Transmitter + 1 Receiver) - Wireless AV transmission system, 4K 60 fps, 2.5 km range, less than 25 ms latency, Tri-Band + DFS technology

Transmitter
AV transmitter belonging to the new CineView Master 4K wireless transmission system, top of the range of the Accsoon line, capable of offering 4K video quality at 60 fps and therefore ideal for monitoring, recording, live streaming and any other video production.
It uses a Tri-Band transmission technology at 2.4, 5 and 6 GHz to ensure a stable and robust connection with a latency of only 25 ms from input to output.
Based on the proprietary RTMS 4.0 protocol developed by Accsoon, this technology allows for intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency and the ability to easily handle multiple connections.
Accsoon has developed the proprietary RTMS 4.0 protocol to work with the new high-performance A/V processor with 8K capabilities.
In combination, the protocol and the processor represent a remarkable 400% increase in processing capabilities.

CineView Master 4K TX, thanks not only to the revolutionary Tri-band transmission technology but also to the innovative hardware design, is able to transmit video up to a distance of 2.5 km, making it suitable for professional cinema productions.
Not only does it work over great distances, but it does with incredible stability!
In addition, it supports multiple streaming connections, allowing you to connect up to four wireless devices and one wired device at the same time.
The CineView Master 4K design features clean lines, a modern design, and is built to withstand intensive production use.
It is also optimized for heat dissipation with the ability to reduce the fan speed or even turn it off for critical audio scenarios.
Finally, it can be powered by NP-F batteries or 12 VDC connector.
In terms of connections, it offers a 3G SDI input, HDMI 2.0 up to 4k 60 fps, an HDMI 2.0 pass through output and USB wired video to iPhone / iPad (MFi certified).

Receiver
AV receiver from Accsoon's new flagship CineView Master 4K wireless system, delivering 4K video quality at 60 fps for smooth, crisp on-site monitoring.
Uses 2.4, 5 and 6 GHz Tri-Band transmission technology to ensure a stable and robust connection with a latency of just 25 ms from input to output.
Based on Accsoon's proprietary RTMS 4.0 protocol, this technology enables intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency and the ability to easily handle multiple connections.
Accsoon developed its proprietary RTMS 4.0 protocol to work with the new 8K-capable high-performance A/V processor.
Together, the protocol and processor represent a remarkable 400% increase in processing capabilities.
The CineView Master 4K design features clean lines, a modern design, and is built to withstand heavy production use.
It is also optimized for heat dissipation with the ability to reduce fan speed or even turn it off for critical audio scenarios.
Finally, it can be powered via NP-F batteries or a 12 VDC connector.

In terms of connections, it offers 3G SDI output, HDMI 2.0 up to 4K 60 fps, and HDMI 2.0 output.
