HL-Syscom 421S
Hollyland
₦ 9,298,094.30 VAT excl.

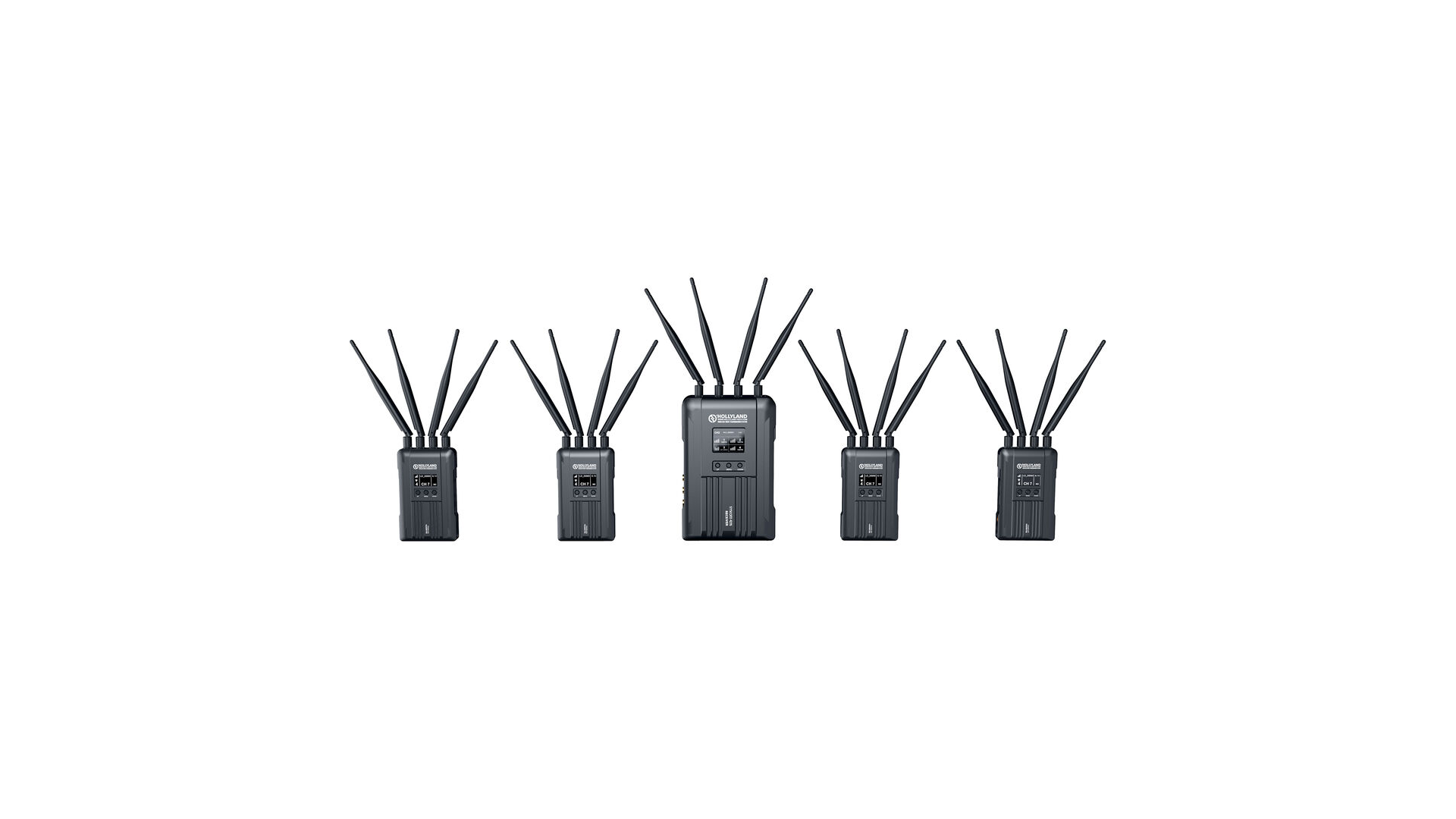

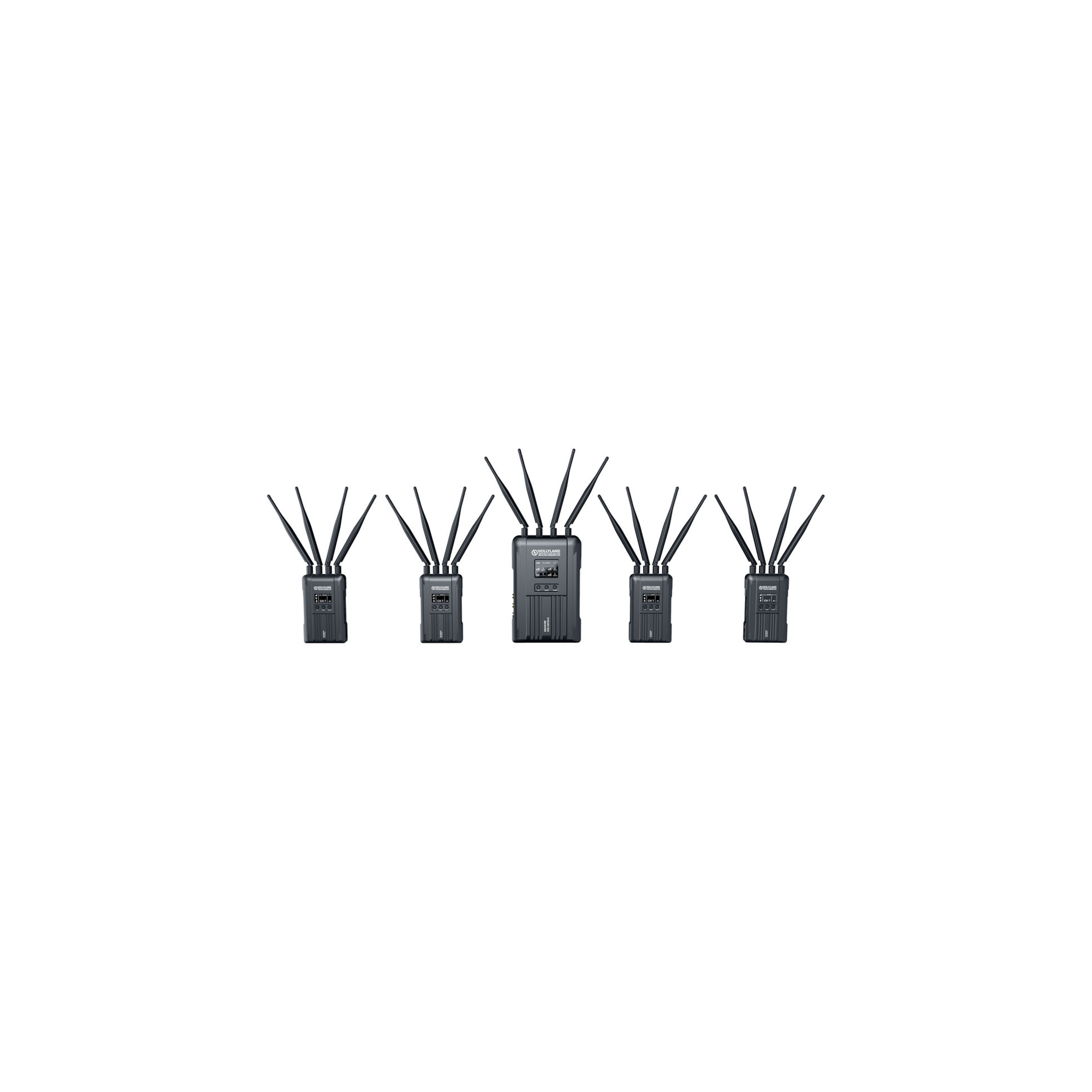

The Syscom 421S 4-Transmitter 1800' (548.64 m) A/V Transmission System with Carry Case from Hollyland is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally.
Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.
The 421S system also supports Ethernet pass-through, so you can stream directly via RTSP to the Internet.
The receiver features four SDI and four HDMI outputs (one for each transmitter) for connecting to a monitor or switcher.
You can control PTZ cameras via IP or RS-422/485 serial connections.
The transmitters have a dedicated tally output port that support optional tally lights.
Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power.
Each transmitter has an L-series battery plate, and the receiver has a V-mount battery plate.
Both Transmitters and receiver also feature a 2-pin power input for alternate DC power options.
- Up to 1080p60 transmitter/receiver system
- 1800' (548.64 m) line-of-sight transmission
- SDI and HDMI input
- SDI and HDMI output
- Passes control and tally over LAN
- OLED display
Inputs / Outputs
Antenna I/O: Transmitter/Receiver: 4x RP-SMA Female
Video I/O:
- Transmitter: 1x HDMI Input
- Transmitter: 1x BNC Input
- Receiver: 4x HDMI Output
- Receiver: 4x BNC Output
Embedded Audio: SDI | HDMI
Audio I/O: No
Power I/O: Transmitter/Receiver: 1x (Unspecified Type) 2-Pin (36 VDC) Input
Other I/O:
- Transmitter: 1x USB-C Input
- Receiver: 1x USB-A Input
- Transmitter/Receiver: 1x RJ45 (LAN) Input/Output
- Transmitter/Receiver: 1x Proprietary (RS-422/RS-485) Input/Output
Wireless
Wireless Range: 1800'' / 548.64 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range: US: 5.1 to 5.9 GHz
Latency: < 0.07 sec
RF Power: less than or equal 22 dBm
RF Sensitivity: -90 dBm
Wi-Fi: Yes
Bluetooth: No
Cellular Support: No
Format Support
Video Format:
° HDMI:
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
576p: 50
480p: 60
° SDI:
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
576p: 50
480p: 60
Timecode Support: Yes
Power
DC Input Power: 36 VDC
Battery Type:
- Transmitter: 1x L-Series
- Receiver: 1x V-Mount
Power Consumption:
- Transmitter: 12 W
- Receiver: 32 W
Mounting
Mounting:
- 1x 1/4"-20 Female
- 1x 3/8"-16 Female
General
Material of Construction: Metal
Dimensions:
- Transmitter: 5.7 x 3.5 x 1.2" / 144 x 88 x 30 mm
- Receiver: 9.5 x 5.8 x 2.4" / 242 x 148 x 62 mm
Weight:
- Transmitter: 15.2 oz / 431.5 g, Including Antenna, Battery Plate
- Receiver: 3.6 lb / 1621 g, Including Antenna, Battery Plate
1x Syscom 421S 4-Transmitter 1800'' A/V Transmission System
4x Transmitter
1x Receiver
25x 5 GHz Antenna
4x Magic Arm (7")
1x OTG Cable
4x DC Conversion Cable
5x RS485/RS422 Interface Cable
1x Power Adapter
