Ranger MK II 5000 - RX VM

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (V-Mount) - 10-2597-V

Transmit lossless 4K video up to 5000' (1524 m) with the Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver from Teradek.
Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support.

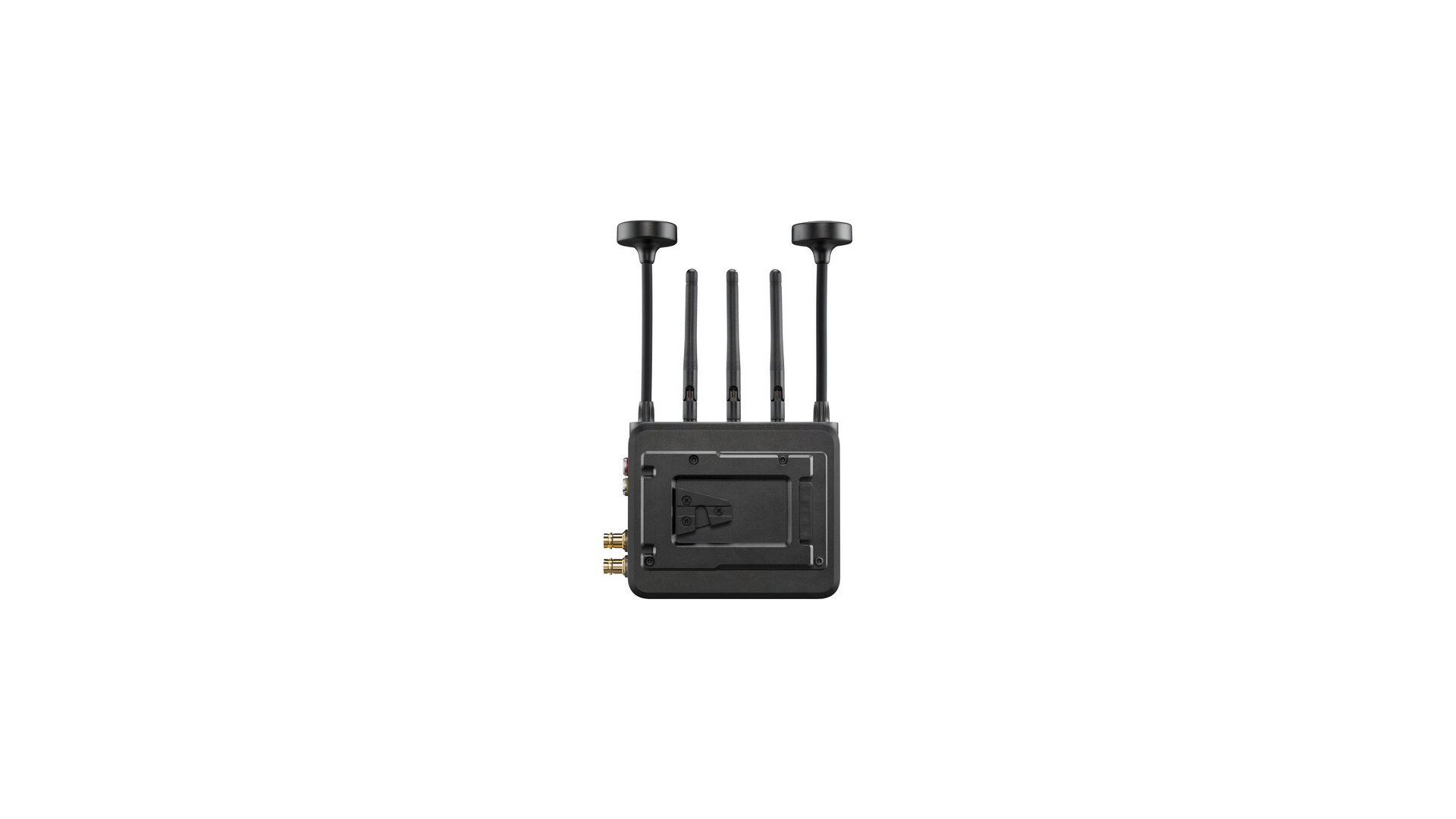

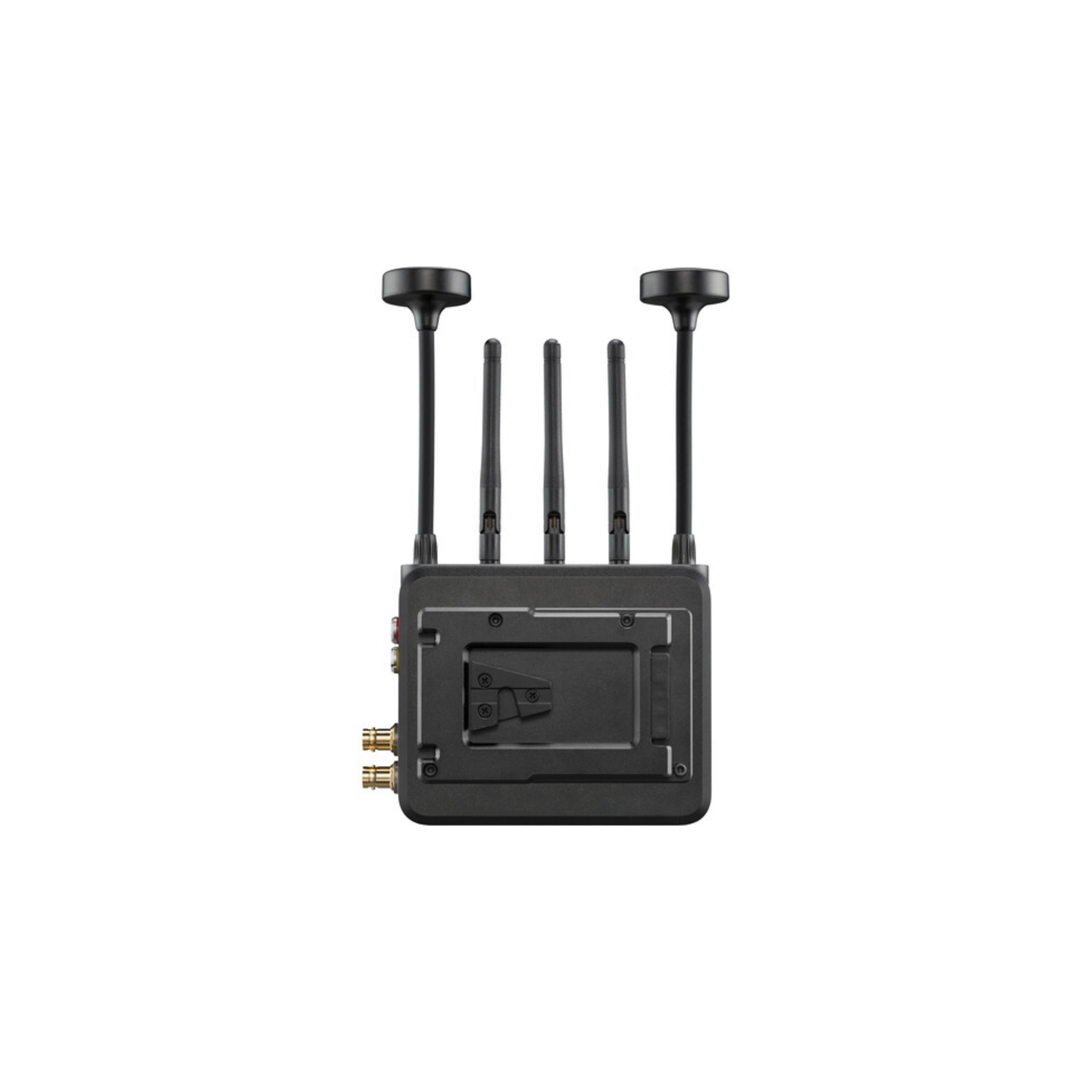

It also features five external antennas.

When pairing with a Ranger transmitter, this unit can receive up to 4K60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes.
It can receive visually lossless video from any Ranger series receiver with zero delay.
The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or via the included V-mount battery plate, and there are 1/4"-20 and 3/8"-16 mounting threads to mount onto a variety of cameras, cages, or rigs.

° Premium Wireless Hardware
The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission.
This model boasts a maximum range of 5000', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

° Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model.
That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range.
Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

° Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience.
Ranger's patented zero-delay technology solves this problem.
With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.

° Configure Ranger from PC or Phone
Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

° Wide Transmission Frequency Range
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption.
But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
