Ranger MK II 5000 - TXRX GM

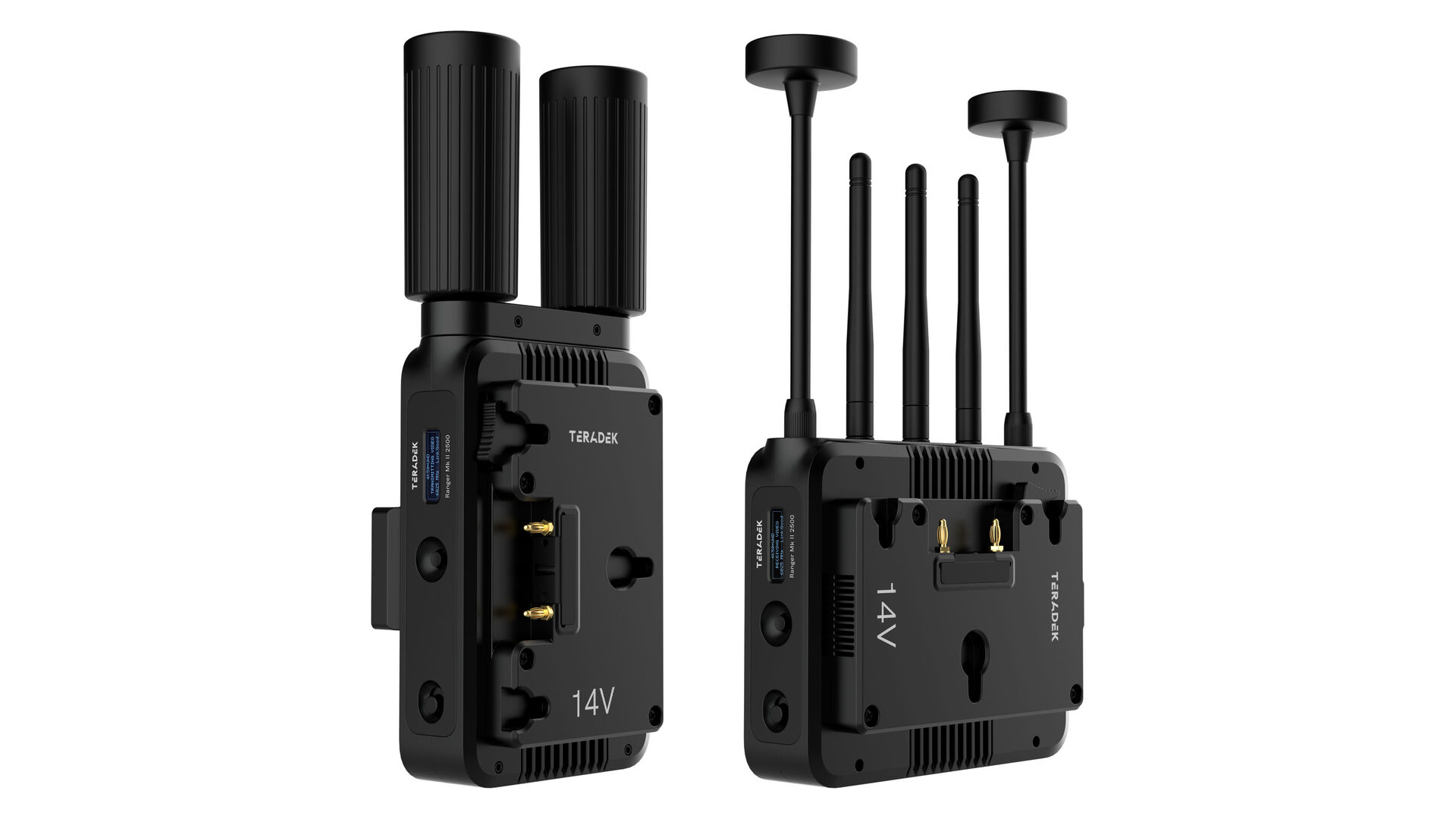

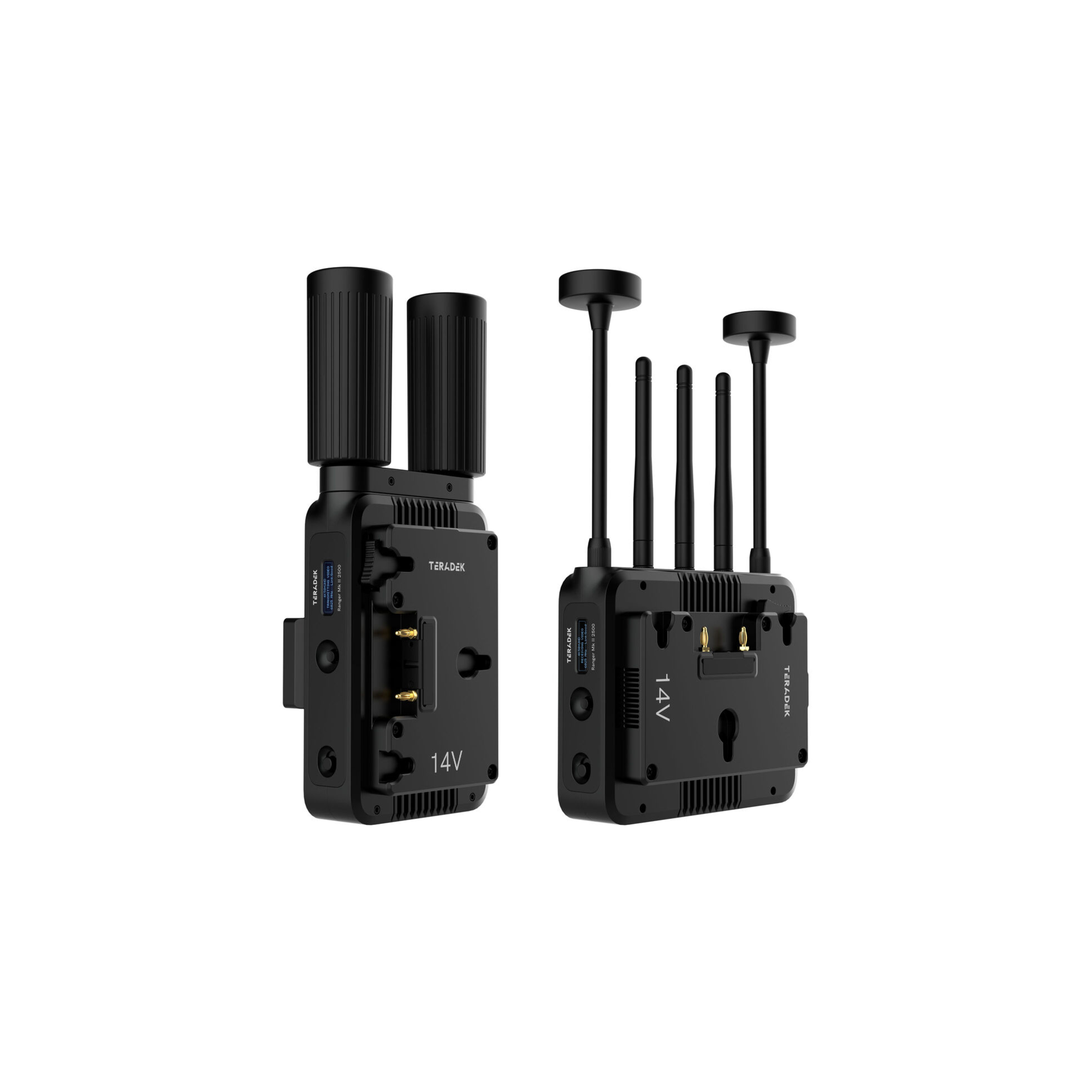

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) - 10-2595-G

Add a full wireless transmission kit to your rig to transmit lossless 4K video up to 5000' (1524 m) with the Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 4K60 video over HDMI or 12G-SDI and transmit up to 5000' away to the receiver, which can output to HDMI or 12G-SDI.

The set supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes.
You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Each unit is powered using a 2-pin DC input and the receiver can be powered using the included Gold mount battery plate.

° Premium Wireless Hardware
The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission.
This model boasts a maximum range of 5000', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

° Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model.
That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range.
Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

° Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience.
Ranger's patented zero-delay technology solves this problem.
With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.

° Configure Ranger from PC or Phone
Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

° Wide Transmission Frequency Range
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption.
But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
