Teradek

810156140372
3G-SDI/HDMI Receiver with Internal Antennas - 10-2264
go to the technical sheet
₦ 3,422,476.00

₦ 3,183,699.00 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

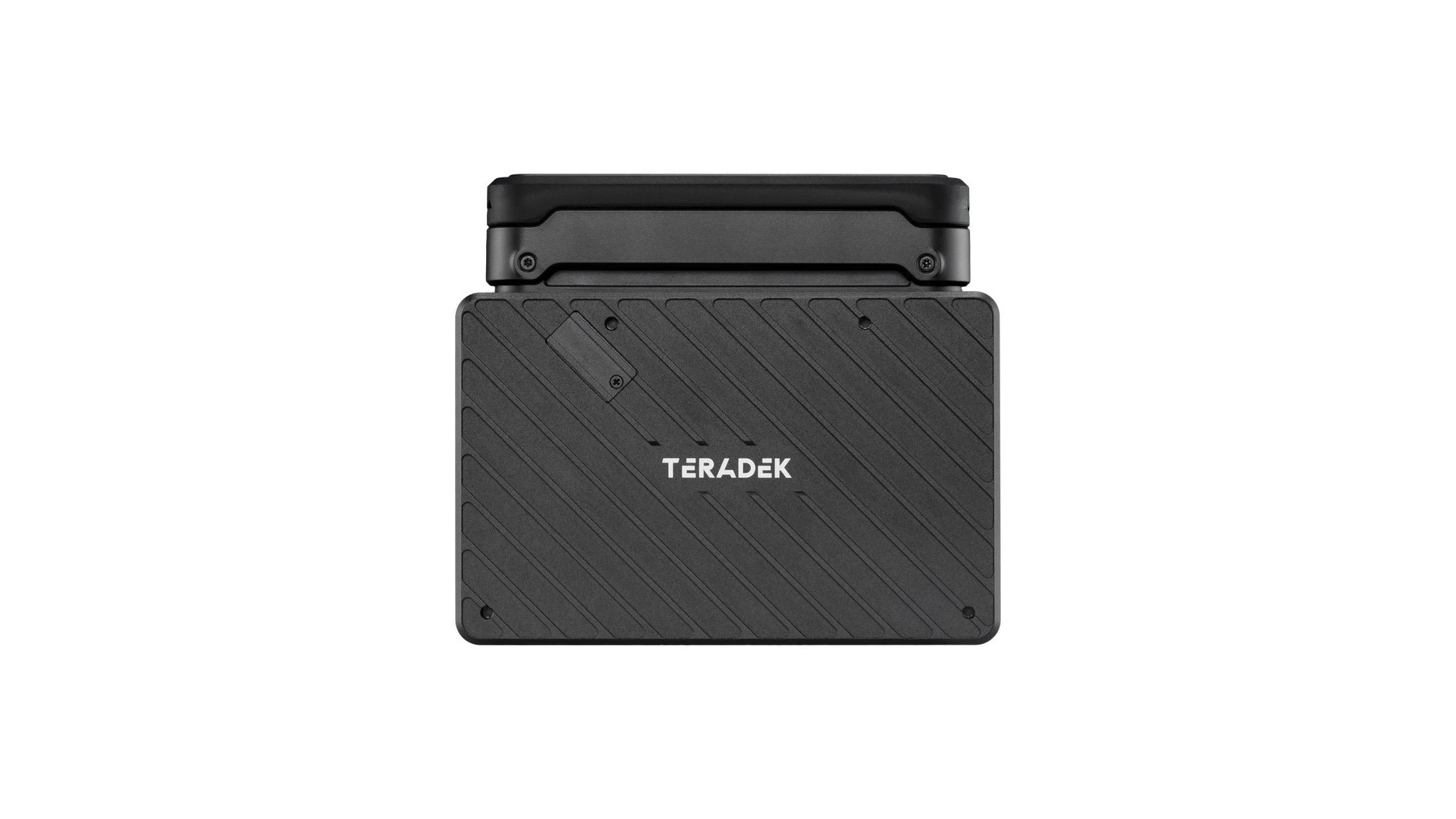

Teradek 3G-SDI/HDMI Receiver with Internal Antennas - 10-2264

Receive lossless HD video from up to 750' away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek.
This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR, output video via an HDMI or 3G-SDI port, and it comes in a sleek form with all antennas tucked inside.
It features a bright OLED display and support for the 6 GHz wireless band.

Sleek Design with Internal Antennas
The antennas in this receiver are all tucked inside, producing a sleek, compact form.
There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Cross-Compatibility
This receiver is cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum and works with Bolt 6 series devices using the 6 GHz frequency band.
It also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Up to UHD 4K30 via HDMI
Wirelessly receive up to UHD 4K30 video and output 4K via an HDMI or 1080p via a 3G-SDI output.
Supports Rec. 2020 HDR in 10-bit 4:2:2 color gamut.
SDI Eye Pattern Tool to check SDI cable integrity.
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

SR 2066B
SmallRig

SR 2066B

₦ 46,063.00 VAT included
Available 1 unit in 4 Days
SR 2059
SmallRig

SR 2059

₦ 31,013.00 VAT included
Available 3 unit in 4 Days
Orca OR-69
Orca Bags

Orca OR-69

₦ 400,974.00 VAT included
Available 1 unit in 4 Days

Display
______________________
Panel Type: LCD
Touchscreen: No

Inputs / Outputs
______________________
Antenna I/O: 5x RP-SMA Female
Video I/O:
- 1x HDMI 1.4b Output
- 1x BNC (3G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: No
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O: 1x Micro-USB Input
Encryption: 256-Bit AES

Wireless
______________________
Wireless Range: 750'' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
° Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
° DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 21 dBm
Wi-Fi: Wi-Fi 6 (802.11ax)
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt App
Cellular Support: No

Format Support
______________________
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Wireless Video Compression: Uncompressed
Timecode Support: Yes

Power
______________________
Input Power: 6 to 28 VDC
Power Consumption: 11 W

Mounting
______________________
Mounting: 1x 1/4"-20 Female | 1x 3/8"-16 Female

Environmental
______________________
Environmental Protection: No
Certifications: FCC 15, CAN, IC, ICES
Operating Temperature: 32 to 72°F / 0 to 40°C

General
______________________
Material of Construction: Aluminum, Polycarbonate

1x Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas
1x 2-Pin to D-Tap Power Cable (18")
1x USB-A to Micro-USB-B Cable (3'')
1x Ultrathin HDMI Type A Cable (18")
1x BNC SDI Cable (10")
1x AC Adapter with Cable (6'')
