Ace 750 TXRX
Teradek
810156140280
HDMI Wireless Video Transmitter/Receiver up to 4K30 HDR Video Set - 10-2240
go to the technical sheet
₦ 2,502,330.00
₦ 2,327,749.00 VAT excl.
Teradek HDMI Wireless Video Transmitter/Receiver up to 4K30 HDR Video Set - 10-2240

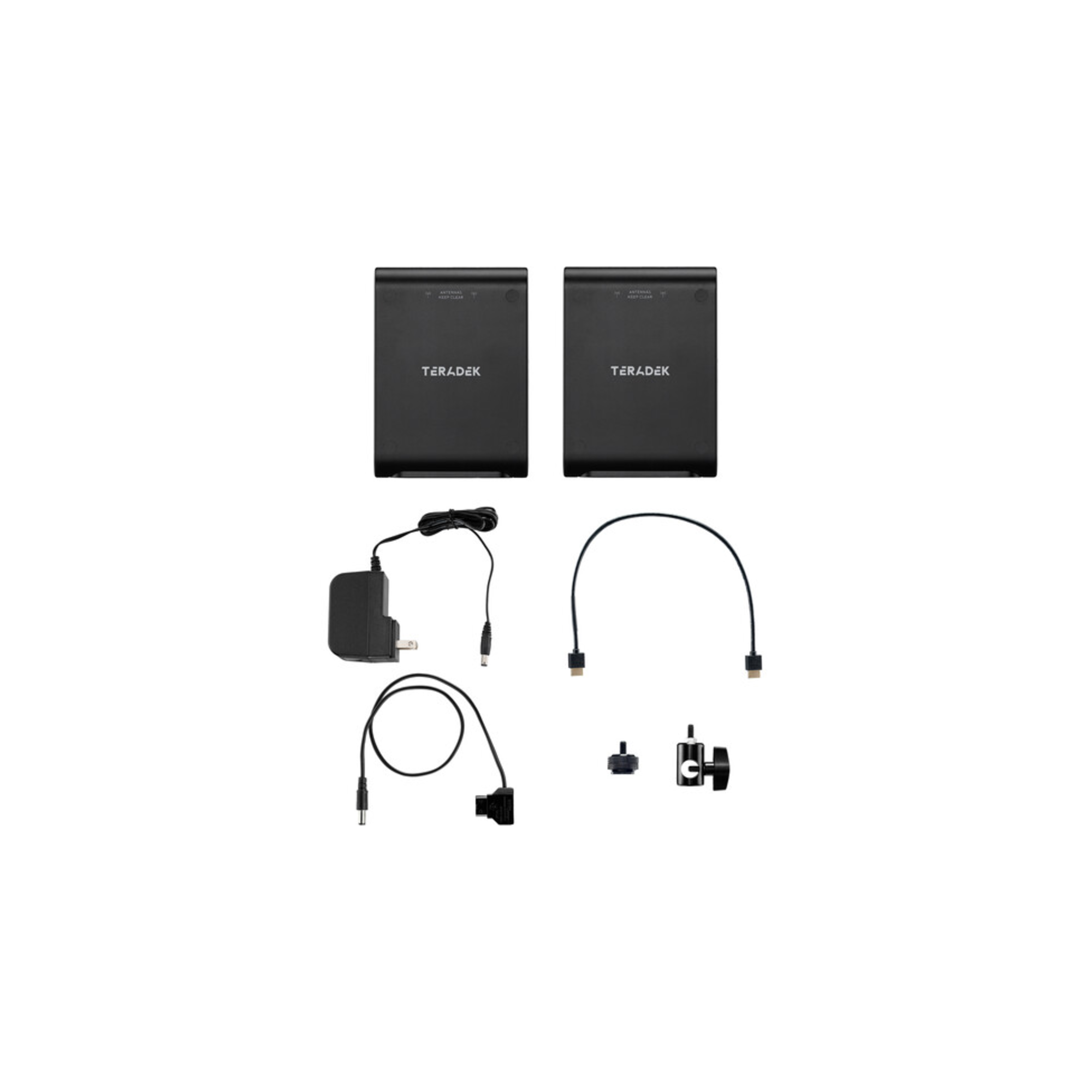

The Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set includes an Ace 750 transmitter unit and an Ace 750 receiver unit.
The system allows you to transmit and receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with no delay up to 750' line of sight.
The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install, and the units feature HDMI connectors.
- Includes Transmitter and Receiver Units
- Transmit/Receive up to 4K30 HDR Video
- Compatible with Bolt 4K and Bolt 6 Units
- Transmission up to 750'/228.6 m Line of Sight
- HDMI Input/Output, Built-In Antennas
- Transmit to up to 6 Receivers/Devices
- 5 and 6 GHz Frequency Support
- Inputs/Transmits/Outputs Embedded Audio
- Less than 1 ms Latency
*Available plates are:
- Sony-Canon Batt.Plate (for Sony L-series and Canon LP-E6 batteries)
- Panasonic CGA-D54 Batt.Plate
- Panasonic VW-VBG6 Batt.Plate
The Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set includes an Ace 750 transmitter unit and an Ace 750 receiver unit.
The system allows you to transmit and receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with no delay up to 750' line of sight.
The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install, and the units feature HDMI connectors.
- Includes Transmitter and Receiver Units
- Transmit/Receive up to 4K30 HDR Video
- Compatible with Bolt 4K and Bolt 6 Units
- Transmission up to 750'/228.6 m Line of Sight
- HDMI Input/Output, Built-In Antennas
- Transmit to up to 6 Receivers/Devices
- 5 and 6 GHz Frequency Support
- Inputs/Transmits/Outputs Embedded Audio
- Less than 1 ms Latency
*Available plates are:
- Sony-Canon Batt.Plate (for Sony L-series and Canon LP-E6 batteries)
- Panasonic CGA-D54 Batt.Plate
- Panasonic VW-VBG6 Batt.Plate
Orca OR-69
₦ 400,974.00
VAT included
Available 1 unit in 4 Days
11-0058
₦ 248,700.00
VAT included
Available 1 unit in 4 Days
Ace 750 Wireless Video Transmitter
Inputs / Outputs
Antenna I/O: No
Video I/O: 1x HDMI 1.4b Input
Embedded Audio: HDMI: 2-Channel
Audio I/O: No
Power I/O: 1x Barrel Input
Encryption: No
Wireless
Wireless Range: 750'' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
Non-DFS Frequencies
- US: 5.94 to 6.42 GHz
- US: 5.19 to 5.23 GHz
- US: 5.75 to 5.79 GHz
DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
Wi-Fi: No
Bluetooth: No
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt Manager
Functionality: Adjust Settings, Remote Control, Setup
Cellular Support: No
Format Support
Video Format:
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
Environmental
Environmental Protection : No
General
Material of Construction: Aluminum
Dimensions: 4.4 x 3.2 x 1" / 111.6 x 81 x 25.4 mm
Weight: 6.6 oz / 186 g
Ace 750 HDMI Wireless Video Receiver
Inputs / Outputs
Antenna I/O: No
Video I/O: 1x HDMI 1.4b Output
Embedded Audio: HDMI: 2-Channel
Audio I/O: No
Power I/O: 1x Barrel Input
Encryption: No
Wireless
Wireless Range: 750'' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
Non-DFS Frequencies:
- US: 5.94 to 6.42 GHz
- US: 5.19 to 5.23 GHz
- US: 5.75 to 5.79 GHz
DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
Wi-Fi: No
Bluetooth: No
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt Manager
Functionality: Adjust Settings, Remote Control, Setup
Cellular Support: No
Format Support
Video Format:
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
General
Material of Construction: Aluminum
Dimensions: 4.4 x 3.2 x 1" / 111.6 x 81 x 25.4 mm
Weight: 7.1 oz / 202 g
Teradek Ace 750 Wireless Video Transmitter
Teradek Ace 750 HDMI Wireless Video Receiver
