RT-FIZ Kit CTRL.3MDR.S..
Teradek
₦ 12,669,549.00 VAT excl.

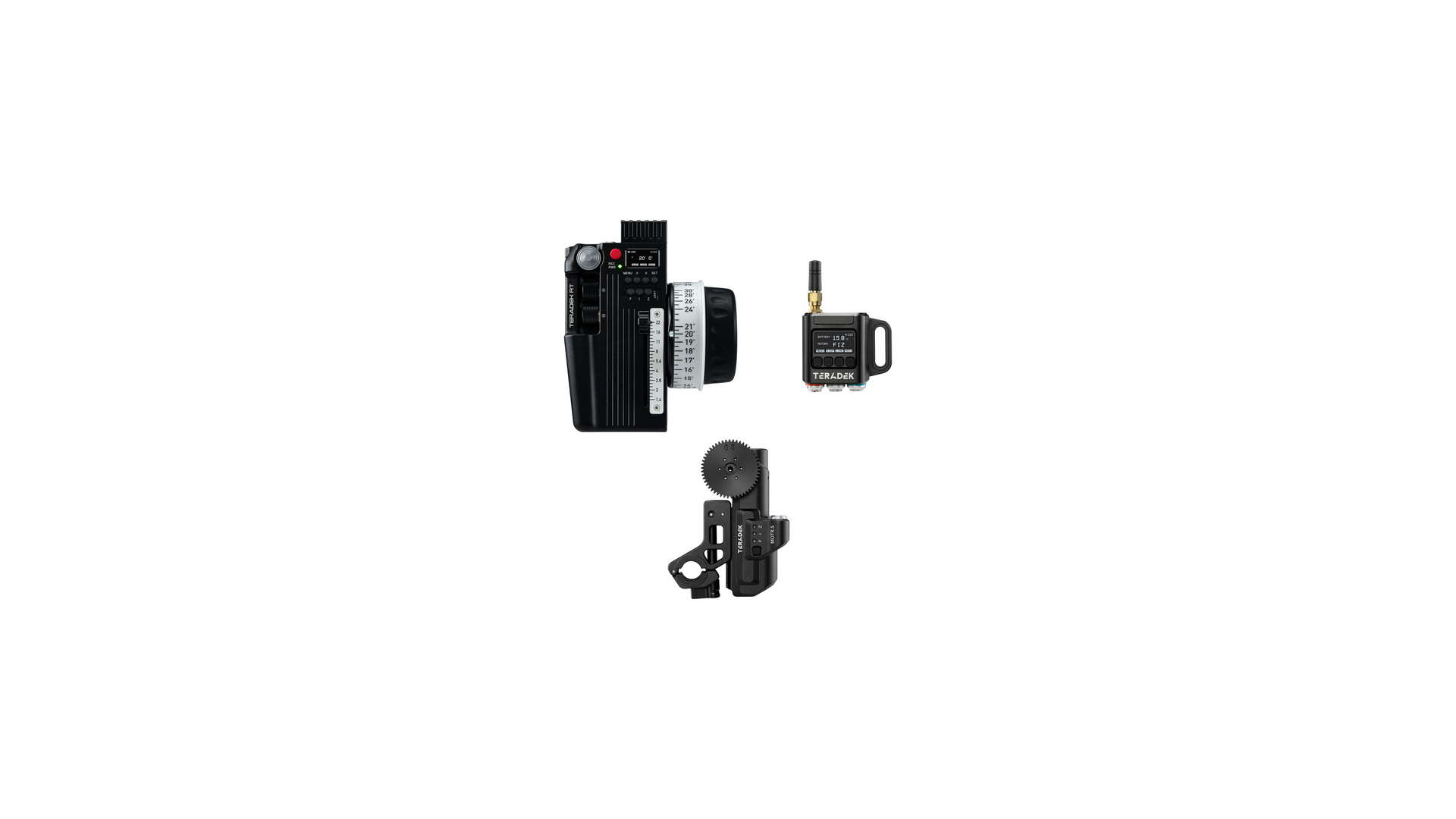

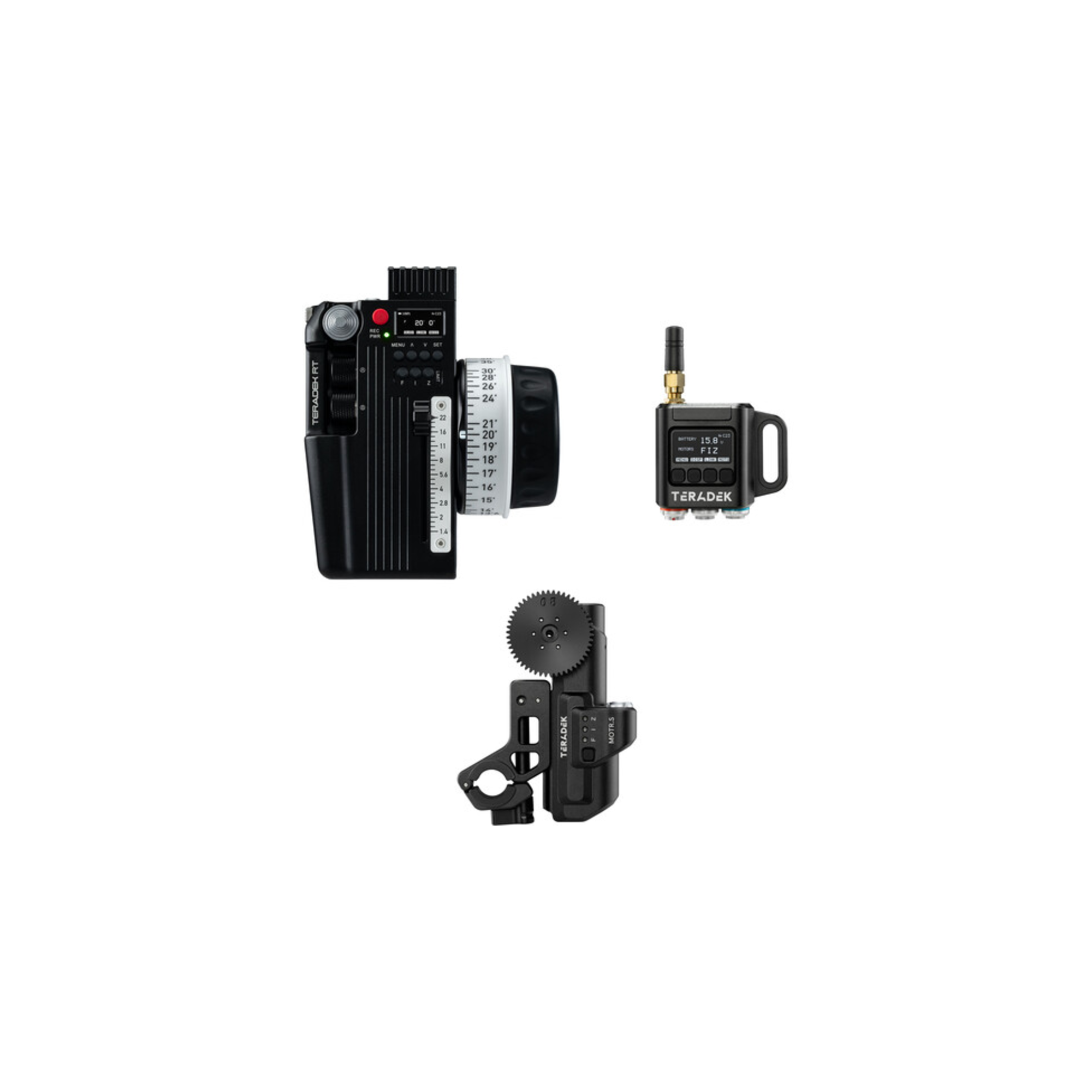

Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit from Teradek, featuring the upgraded MOTR.S lens motor, CTRL.3 wireless lens controller, an MDR.S 3-channel Bluetooth wireless receiver, and the compact MOTR.S.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments.
The MDR.S has a 5000' line-of-sight range and features Bluetooth and 2.4 GHz Wi-Fi connectivity.
Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders.
The kit also includes numerous cables, a battery, a charger, and a large carry case.
- CTRL.3 Wireless Lens Controller
- MOTR.S Lens Motor
- MDR.S 3-Channel Bluetooth Receiver
- Pre-Marked Focus Rings, Iris Strips
- Motor, Controller, USB & Power Cables
- Mounting Brackets, Battery, Charger
- Carry Case
CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
System
Number of Channels: 3
Maximum Range:
- Outdoor: 5000'' / 1524 m
- Indoor: 500'' / 152.4 m
Wireless Frequency: 2.4 GHz
Receiver / Motor
Bluetooth : No
Included Drive Gear : No
Operating Temperature: -4 to 122°F / -20 to 50°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Transmitter / Controller
Transmission Delay: 2 ms
Transmitter I/O:
- 1 x LEMO 5-Pin
- 1 x USB-A
Battery Type: LP-E6
Material of Construction: Aluminum
Dimensions: 5.1 x 3.3 x 6.2" / 12.95 x 8.38 x 15.75 cm
Weight: 1.66 lb / 754 g
MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
General
Compatibility: Teradek RT
Bluetooth Range: 5000'' / 1524m
Display
Panel Type: OLED
Touchscreen: No
Inputs / Outputs
USB I/O: 1 x USB-C Female Input
Video I/O:
- 1x Mini Hirose 6-Pin Input
- 1x Mini-DIN 4-Pin Input
Power
Power Source: Proprietary Interface
DC Input Power: 5 to 28 VDC
Physical
Mounting: 1 x Rail
Color: Black
Dimensions: 2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm
Weight: 2.4 oz / 68 g
RT MOTR.S Lens Motor
General
Gear Pitch: 0.8 MOD
Maximum Torque:
- 0.95 nm (Peak)
- 0.3 nm (continuous)
Maximum Speed: 297 teeth per second
Connectors: 2 x 0B 4-Pin
Power
Power Source: Plug-In Power
DC Input Power: 7 to 32 VDC
Operating Current:
- 1 A (Standby)
- 2 A (Maximum)
Environmental
Operating Temperature: 32 to 82°F / 0 to 50°C
Physical
Mounting:
- 1 x 15mm Rod Clamp
- 1 x 19mm Rod Clamp
Color: Black
Material of Construction: Aluminum
Dimensions: 4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight: 6.5 oz / 184 g
3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 2-Pin Male
Physical
Cable Length: 15.7" / 40 cm
3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 3-Pin with ARRI Run/Stop Male
Physical
Cable Length: 15.7" / 40 cm
RED Run/Stop Cable for MDR.X Receiver (16")
Physical
Connector 1: 6-Pin Push-Pull
Compatible Camera: RED Camera
Length: 16" / 40 cm
LANC Run/Stop Cable for MDR.X Receiver (16")
Physical
Connector 1: 6-Pin Push-Pull
Compatible Camera: LANC-Equipped Camera
Length: 16" / 40 cm
5-Pin to Micro-USB 2.0 Type-B Monitor Cable for SmallHD Overlays (16")
Connector 1: 5-Pin Circular Locking Connector
Connector 2: Micro-USB 2.0 Type-B
Length: 16" / 40 cm
Weight: 0.5 oz / 14.2 g
RT SmallHD Monitor Interface Cable (24")
Transmitter / Controller
Connectors:
- Monitor End: 5-Pin (Straight)
- Teradek RT End: 5-Pin (Right-Angle)
Length: 24" / 0.6 m
4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 7.8" / 20 cm
Connector: 4-Pin Straight Angle
4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 15.7" / 40 cm
Connector: 4-Pin Straight Angle
4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 23.6" / 60 cm
Connector: 4-Pin Straight Angle
RT Protective Case for 3-Motor Lens Control Kit
Compatibility: RT Wireless Lens Control Kit
Material: Polypropylene Copolymer Resin
Closure Method: Trigger-Release Latch System
Carry/Transport Options: Handle
Valves: Automatic Ambient Pressure Equalization Valve
Waterproof: Yes
