RT - Single Channel Kit
RT - Single Channel Kit

RT - Single Channel Kit

Teradek

818264029053
Single Channel Kit (CTRL.1, MDR.S, MOTR.S) - 15-0045-SS
go to the technical sheet
₦ 10,048,991.43

₦ 9,347,899.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 1,004,899.14
Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

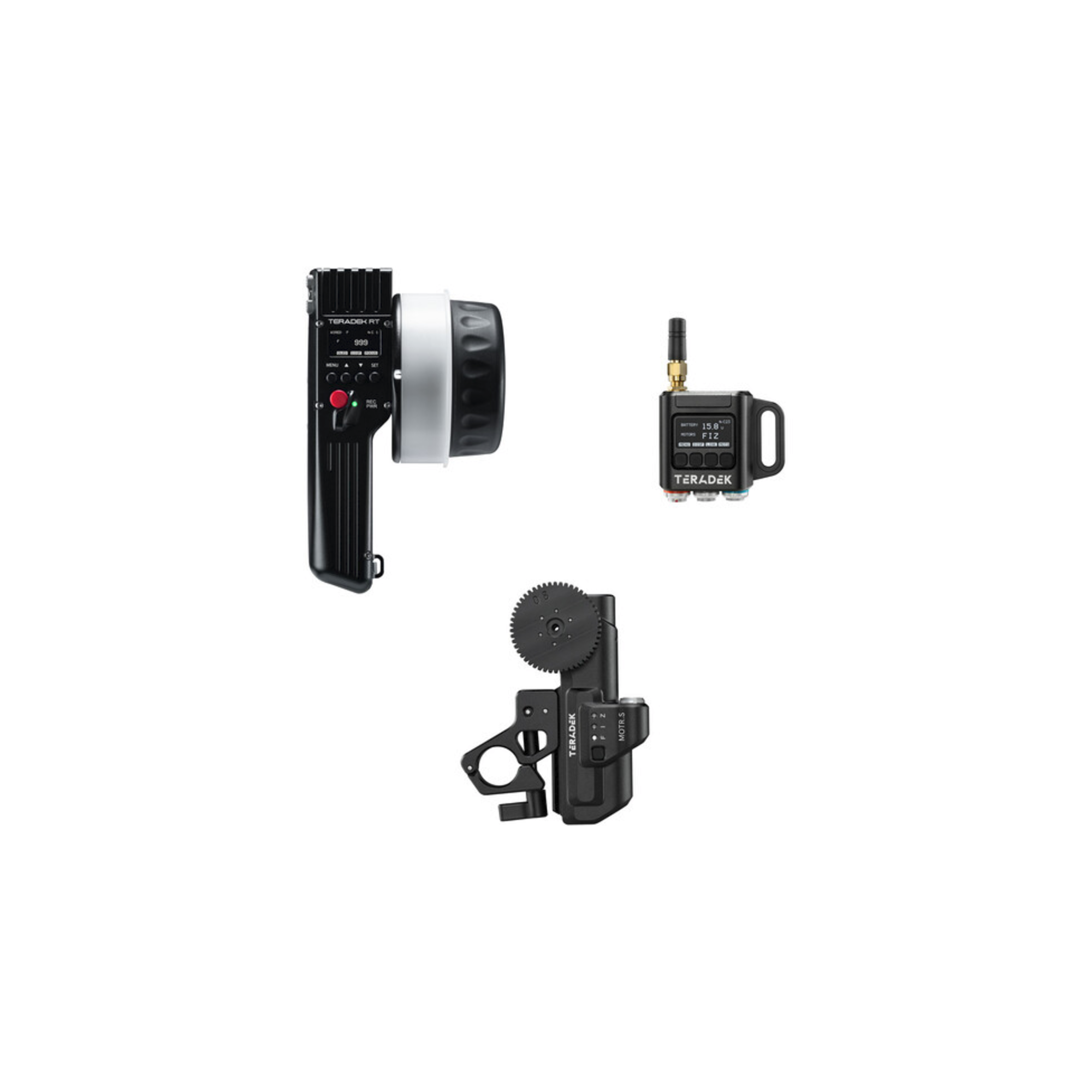

Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor (CTRL.1, MDR.S, MOTR.S) - 15-0045-SS

Ideal for camera operators in single-lens configurations and with an upgraded lens motor, this RT Single-Channel Wireless Lens Control Kit from Teradek provides you with the CRTL.1 single-axis wireless lens controller, the MDR.S compact lens control receiver with Bluetooth, and the MOTR.S lens motor.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments.
Easily set up your kit thanks to its included cables, mounting brackets, and LP-E6 battery.
Control all your lens functions from up to 5000' away and store it all in the included hard-shell case when not in use.

- MDR.S Compact Receiver
- MOTR.S Lens Motor
- CTRL.1 Wireless Lens Controller
- Pre-Marked Focus Rings, Iris Ring
- Motor, Controller, USB, and D-Tap Cables
- LP-E6 Battery with Charger
- Mounting Brackets, Neck Strap
- Hard-Shell Case with Custom Foam

RT Neck Strap
Teradek

RT Neck Strap

₦ 37,570.18 VAT included
Available in 14 days

RT MOTR.S Lens Motor
General
Gear Pitch: 0.8 MOD
Maximum Torque_
- 0.95 nm (Peak)
- 0.3 nm (continuous)
Maximum Speed: 297 teeth per second
Connectors: 2 x 0B 4-Pin
Power
Power Source: Plug-In Power
DC Input Power: 7 to 32 VDC
Operating Current:
- 1 A (Standby)
- 2 A (Maximum)
Environmental
Operating Temperature: 32 to 82°F / 0 to 50°C
Physical
Mounting:
- 1 x 15mm Rod Clamp
- 1 x 19mm Rod Clamp
Color: Black
Material of Construction: Aluminum
Dimensions: 4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight: 6.5 oz / 184 g

RT CTRL.1 Single-Axis Wireless Lens Controller
Compatibility: Teradek RT motors and receivers
Function: Focus, iris, or zoom
Wireless Range: 5000'' / 1.5 km
Display: OLED
Control Port: 5-pin motor control

MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
General
Compatibility: Teradek RT
Bluetooth Range: 5000'' / 1524m
Display
Panel Type: OLED
Touchscree: No
Inputs / Outputs
USB I/O: 1 x USB-C Female Input
Video I/O:
- 1x Mini Hirose 6-Pin Input
- 1x Mini-DIN 4-Pin Input
Power
Power Source: Proprietary Interface
DC Input Power: 5 to 28 VDC
Physical
Mounting: 1 x Rail
Color: Black
Dimensions: 2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm
Weight: 2.4 oz / 68 g

3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 2-Pin Male
Physical
Cable Length: 15.7" / 40 cm

3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 3-Pin with ARRI Run/Stop Male
Physical
Cable Length: 15.7" / 40 cm

4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 7.8" / 20 cm
Connector: 4-Pin Straight Angle

4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 15.7" / 40 cm
Connector: 4-Pin Straight Angle

White Disc for CTRL.1/CTRL.3 Controller
Physical
Compatibility: CTRL.1 and CTRL.3
Dimensions: 3.2 x 0.87 x 3.2" / 81 x 22 x 81 mm
Weight: 0.6 oz / 18 g

Teradek RT MOTR.S Lens Motor
0.8 MOD Gear
MOTR.S Bracket
Teradek RT CTRL.1 Single-Axis Wireless Lens Controller
Neck Strap
Mini-USB to USB Cable (18")
Hard-Shell Case with Custom Foam
Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
USB 2.0 Type-A to Type-C Male Cable (3.3'')
Teradek RT Power 3-Pin D-Tap Cable
Straight 2.4 GHz Wi-Fi Antenna
MDR.S Bracket
Black Screw Socket Head (M2 x 6mm)
Screw Socket Cap (1/4"-20 x 3/8"-16)
Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
Teradek White Disc for CTRL.1/CTRL.3 Controller
Teradek Pre-Marked Focus Ring (10", Imperial)
Teradek Pre-Marked Focus Ring (20", Imperial)
Teradek Pre-Marked Focus Ring (3.5'', Imperial)
Teradek Pre-Marked Focus Ring (6'', Imperial)
Teradek Pre-Marked Focus Ring (10'', Imperial)
Teradek Pre-Marked Focus Ring (0.8'', Metric)
Teradek Pre-Marked Focus Ring (1.6'', Metric)
Teradek Pre-Marked Focus Ring (3.3'', Metric)
Teradek Pre-Marked Focus Ring (6.6'', Metric)
Teradek Pre-Marked Focus Ring (9.8'', Metric)
Teradek Pre-Marked Iris Ring (1-32, Metric)
Pre-Marked Focus Ring (14", Imperial)
Canon LP-E6 Lithium-Ion Battery (1600mAh)
Canon LP-E6 Charger
Large Hard-Shell Case with Custom Foam
