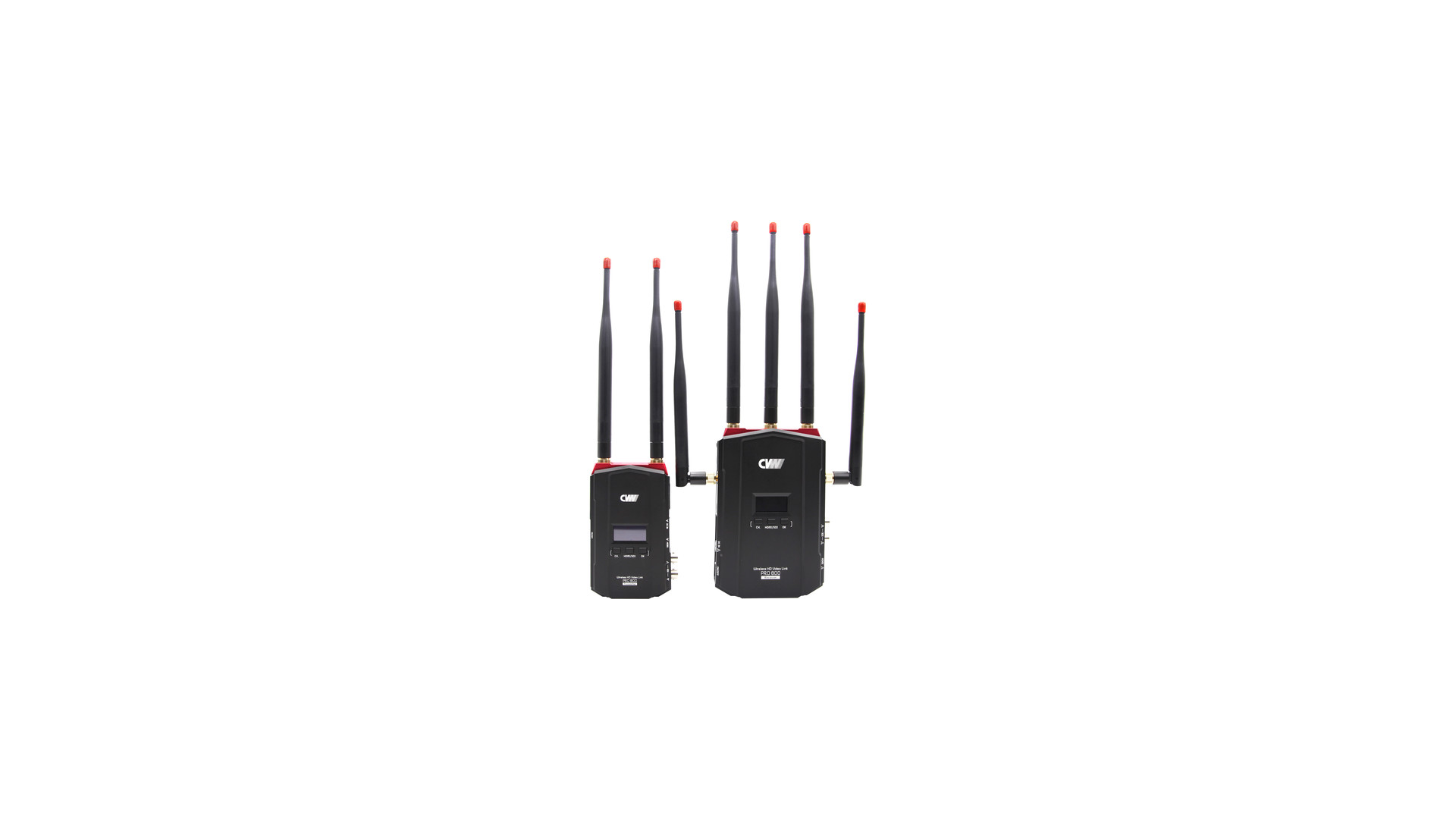

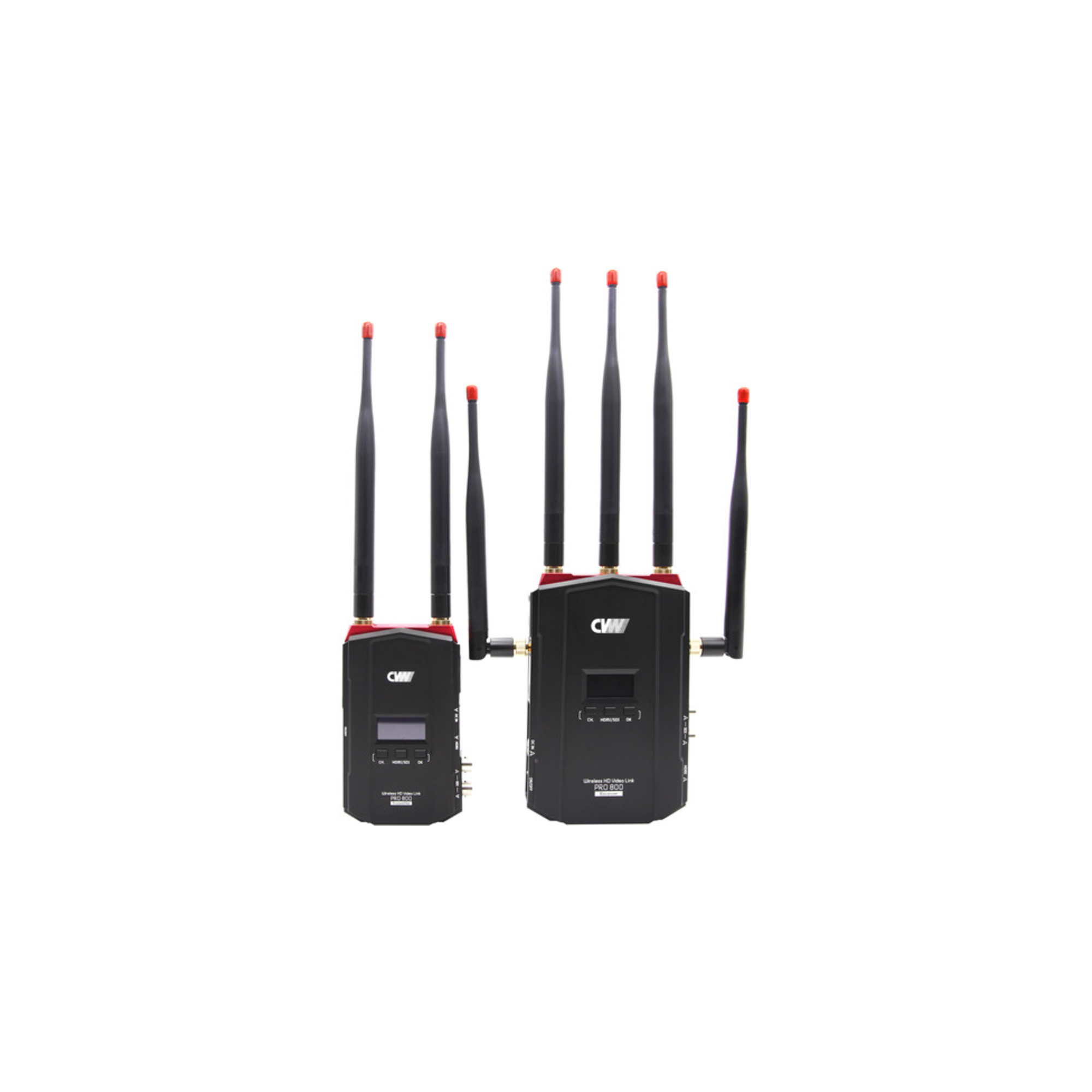

PRO 800

CVW TX and RX wireless video transmission kit, up to 800m, 20dBm, 6V~17V - Black

Pro-Series from CVW is available in three models, PRO-200, PRO-300P and PRO-800.
Transmission distance is indicated in the model name, with PRO-800 capable of up-to 800 metres line of sight wireless operation.
Signals are transmitted in real-time, with zero latency.

Operating on the 5GHz frequency range, CVW's Unique anti-interreference algorithms ensure a clean and consistent signal at all times.
The plug and play setup makes Pro-Series ideal for smaller teams and the go-to solution for wireless on-set monitoring, be it a camera on sticks, a crane or a roaming Steadicam.

SDI and HDMI are both available, as inputs to the transmitter and outputs from the receiver - fully-supporting 1920x1080p at up-to 60 frames per second.
Transmitters and receivers are constructed with strong all-metal housings which are both durable and lightweight.
Antennas, D-Tap to LEMO power cables, 1/4" mounts and AC adaptor and are all provided together in a practical bespoke foamed hard case and ready to deploy immediately.

° Real-time, zero latency wireless video transmission
° Up-to 800m line of sight operation
° 5GHz operation with anti-interference algorithms
° SDI & HDMI inputs/outputs
° SDI input, SDI loop out
° Transmission speed: under 1ms
° Line-of-sight range: 800m
° Video in Full HD 1080/60p (uncompressed 4:2:2 at 10bit)
° Audio formats: PCM, DTS-HD, Dolby True HD
° Time code transmission
° Mounting options: Internal thread (bit-shoe adapter supplied)
° Encryption: AES128/256
