Pro 300 Plus
Crystal Video
CVW Zero Delay Video Radio Link Set distances up to 300 m without DFS,40MHz
go to the technical sheet
₦ 3,964,008.00
₦ 3,687,449.00 VAT excl.

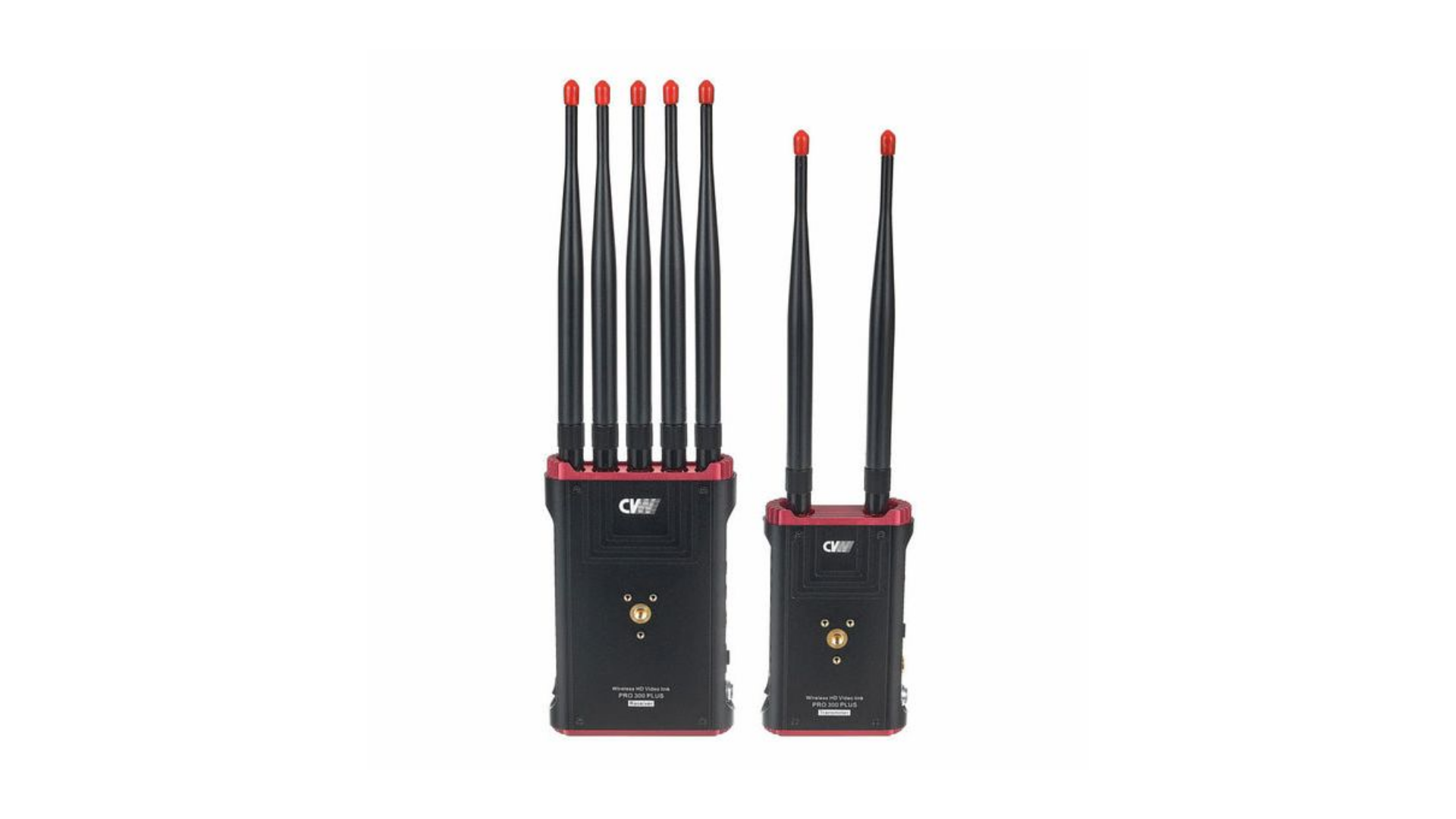

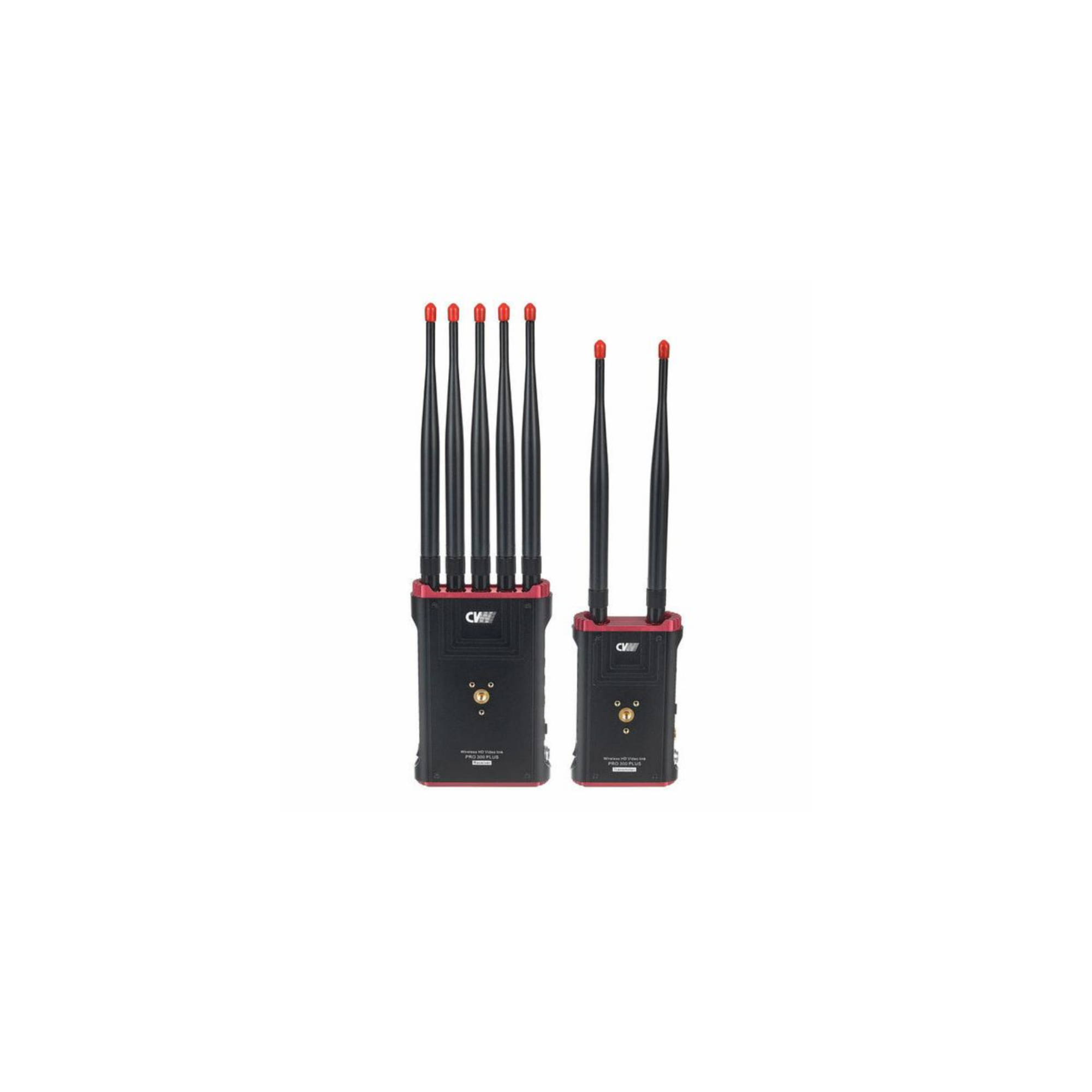

CVW Zero Delay Video Radio Link Set distances up to 300 m without DFS, 40MHz - Black
For distances up to 300 m without DFS
Ultra-low latency under 1 ms
Range up to 300 m (line-of-sight)
Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps)
Uncompressed 4:2:2 at 10bit
Audio formats: PCM, DTS-HD, Dolby True HD
Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
3GSDI and HDMI FullHD
Bandwidth: 40MHz
Without DFS (indoor application)
Frequency selection: manual with buttons (control via LED display)
Mounting options: ¼" internal thread (bit shoe adapter included)
Time code transmission
Power consumption: 8W (Tx), 7W (Rx)
Temperature operating range: 0°C to 40°C
* Note: In the manual of some models CVW refers to 11 channels. For the European market, CVW has only had 4 channels certified: Available channels or frequencies: Channel 1: 5170 GHz, Channel 2: 5230 GHz, Channel 3: 5755 GHz, Channel 3: 5795 GHz
For distances up to 300 m without DFS
Ultra-low latency under 1 ms
Range up to 300 m (line-of-sight)
Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps)
Uncompressed 4:2:2 at 10bit
Audio formats: PCM, DTS-HD, Dolby True HD
Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
3GSDI and HDMI FullHD
Bandwidth: 40MHz
Without DFS (indoor application)
Frequency selection: manual with buttons (control via LED display)
Mounting options: ¼" internal thread (bit shoe adapter included)
Time code transmission
Power consumption: 8W (Tx), 7W (Rx)
Temperature operating range: 0°C to 40°C
* Note: In the manual of some models CVW refers to 11 channels. For the European market, CVW has only had 4 channels certified: Available channels or frequencies: Channel 1: 5170 GHz, Channel 2: 5230 GHz, Channel 3: 5755 GHz, Channel 3: 5795 GHz
TX dimensions (W x H x D): 78 x 128 x 24 mm
RX dimensions (W x H x D): 98 x 153 x 24 mm
Case dimensions (W x H x D): 335 x 121 x 310 mm
Weight TX: 0.184 kg
Weight RX: 0.284 g
Weight complete: 3.1 kg
Colour: Black
High-quality case with custom-fit foam
1x Transmitter (with antennas)
1x Receiver (with + antennas)
2x BNC cable (80 cm)
1x Power supply unit
2x DC adapter cable (D-Tap to 2pin Lemo compatible)
Hot shoe adapter for both units
1x V-Mount adapter
8 x Antennas
